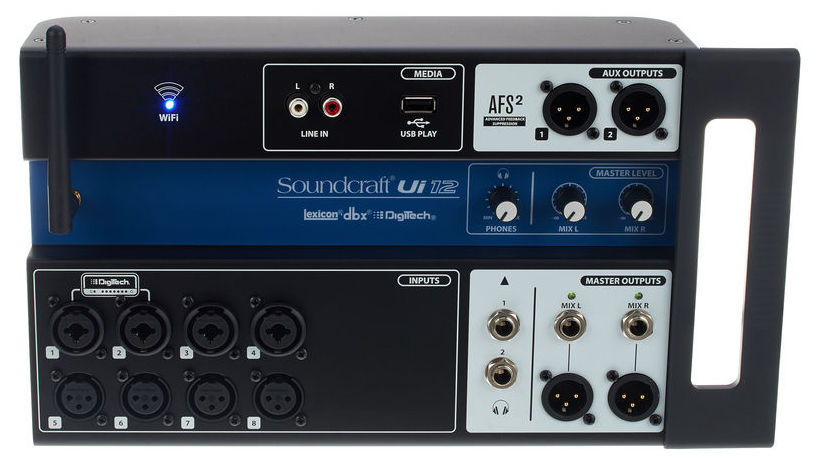

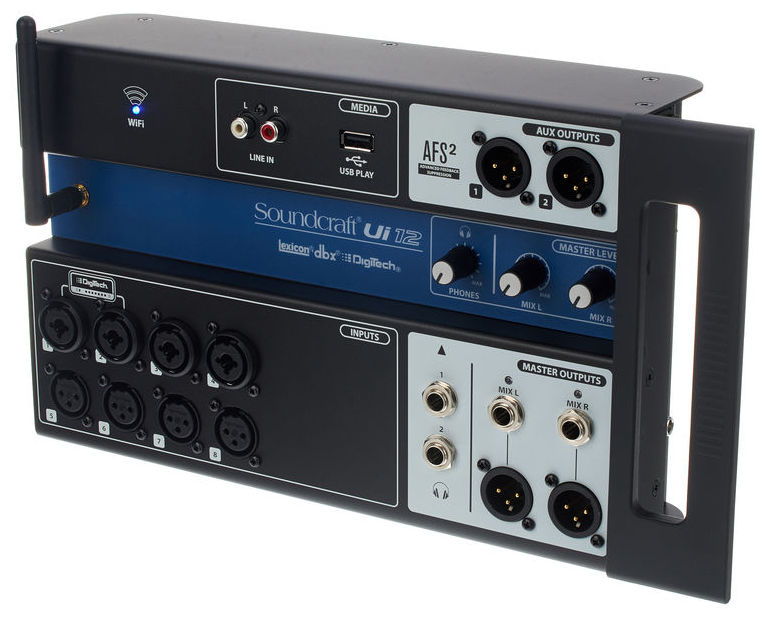

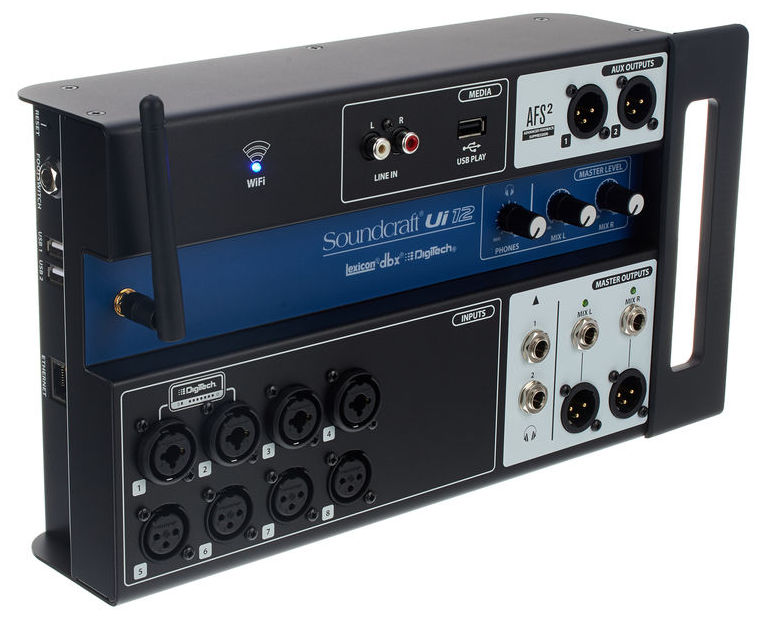

Soundcraft Ui12 - digital mixer with 12 channels, controllable via an app on a tablet/PC/smartphone. It features HARMAN signal processing from dbx, Digitech, and Lexicon. It offers integrated stagebox and DSP, built-in Wi-Fi and Ethernet connectivity, integrated preamplifiers and mixing algorithms, 3 Lexicon effect buses (reverb, delay, and chorus), dbx AFS2 feedback suppressor, Digitech amplification modelling, real-time analyser on 120 bands used on inputs and outputs, +48V power supply. The input channels benefit from 4-band parametric EQ, high-pass filter, compressor, De-Esser, and noise gate. All outputs feature 31-band graphic EQ and compressor. It provides 2 channels for USB recording and playback. It can be controlled simultaneously by 10 devices (tablets, PCs, smartphones).
It is compatible with iOS, Android, Windows, Mac OS, and Linux systems and platforms (over HTML5). In terms of connectivity, it offers 8 XLR line/microphone inputs, 2 XLR microphone inputs, 2 Hi-Z instrument input channels, and a stereo line input with RCA connectors, 2 balanced XLR auxiliary outputs, 2 outputs with 6.3 mm jack connectors with level control, main XLR outputs, and 6.3 mm jack outputs. The 2 USB audio playback channels are compatible with MP3, WAV, and AIFF formats, and offer direct-to-memory recording capability. It also features an HDMI output connection for display. It is delivered together with Ableton Live Lite 9.
Features:
Digital mixer with 12 channels

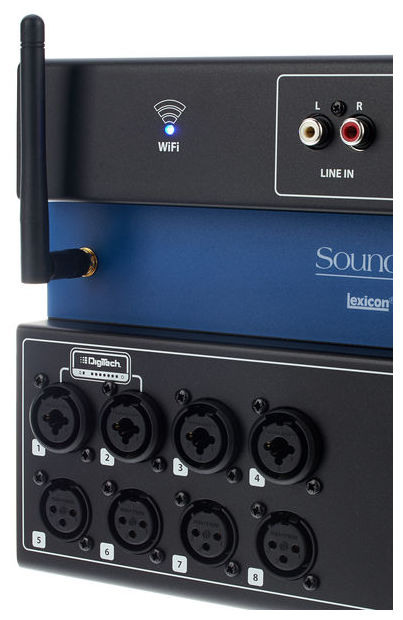

8 microphone inputs including 4 XLR and 4 Combo (XLR/Jack)
2 instrument inputs
2 RCA inputs
Controllable via iOS, Android, Windows, Mac OS, Linux (via HTML5)
Up to 10 devices can be connected simultaneously
Built-in wireless module
Lexicon effects (Reverb, Delay, Chorus)
Soundcraft preamplifiers
Real-time analyser on 120 bands
4-band parametric EQ
Gate, Compressor, De-Esser, HPF
Direct recording and playback to and from USB
19-inch rack compatible
Dimensions: 85 x 177 x 320 mm
Weight: 2.29 kg.
You can find a multitude of explanatory videos by visiting the page http://www.soundcraft.com/products/Ui16#videos
