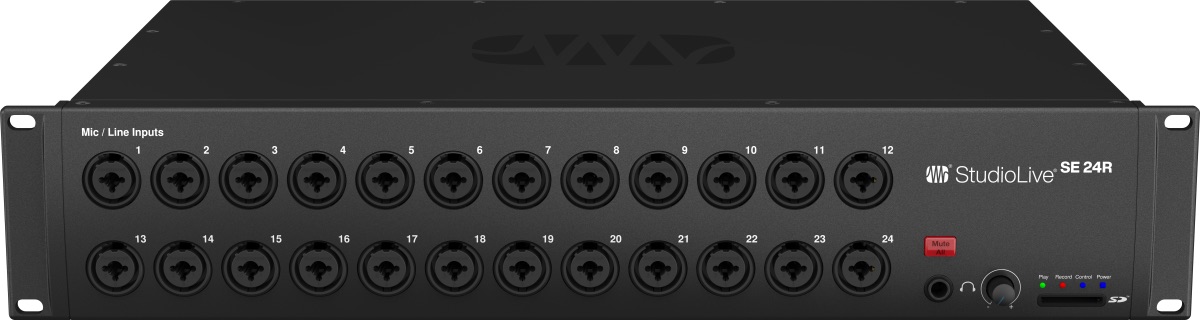

Presonus StudioLive SE 24R Digital Rack Mixer Black

Presonus StudioLive SE 24R Digital Rack Mixer Black - Digital rack mixer, tour-ready, ideal for standalone use, as a monitor mixer or stagebox for StudioLive Series III consoles. Offers extensive routing, multichannel recording and a complete professional software suite, including Fender Studio Pro.

• Digital rack mixer
• 40 digital channels with 26 mix buses
• 24 fully recallable XMAX-R preamps
• 16 configurable FlexMixes as aux, subgroup or matrix
• 4 dedicated subgroups and 4 FX mixes with stereo return
• 24 DCA groups for advanced control
• 64x64 bidirectional USB 2.0 audio interface
• Stereo recording directly to SD card
• Capture integration with Virtual Soundcheck
• Milan-certified AVB network for StudioLive Series III ecosystem
• Source switching per channel: analog, USB, SD or AVB
• Remote control via Universal Control + Offline Editor
• Personal monitoring control QMix-UC (iOS / Android)
• Operating modes: standalone, monitor mixer or stagebox
• Includes perpetual license for Fender Studio Pro

Specifications:

• Series: StudioLive®
• Sample rates: 44.1 kHz / 48 kHz
• Power supply: 230V
• Consumption: 35W
• Phantom Power: +48 VDC (±2 VDC)
• Headphone jack: 6.35 mm TRS stereo active
• Audio interface: 24-bit
• Dynamic Range: 115 dB (ADC/DAC, A-Weighted, 48 kHz)
• System latency: 1.9 ms (analog in–analog out, active processing)
• Reference level 0 dBFS: +18 dBu
• Microphone inputs: Combo XLR / 6.35 mm TRS
• Preamp gain: 0 – 60 dB
• Microphone input impedance: 1 kΩ
• Preamp SNR: 94 dB
• Preamp THD: <0.005%
• Line inputs: RCA stereo
• Line outputs: 6.35 mm TRS balanced
• Maximum line output: +18 dBu
• Audio network: AVB (Locking XLR, Ethernet RJ-45)
• USB port: USB 2.0 Type-B
• Transport dimensions: 213 x 457 x 622 mm
• Product depth: 305 mm
• Transport weight: 7.48 kg
• Power cable: IEC
• Colour: Black

Specifications:

General

• Series: StudioLive®
• Colour: Black
• Country of origin: MY
• Power supply: 230V
• Consumption: 35W
• Phantom Power: +48 VDC (±2 VDC)
• Power cable: IEC

Audio & Performance

• Audio resolution: 24-bit
• Dynamic Range: 115 dB (ADC/DAC, A-Weighted, 48 kHz)
• Reference level 0 dBFS: +18 dBu
• Total system latency: 1.9 ms (analog in–analog out, active processing)
• Sample rates: 44.1 kHz / 48 kHz

Inputs

• 24 x combo XLR / 6.35 mm TRS inputs
• Preamp gain: 0 – 60 dB
• Microphone input impedance: 1 kΩ
• Maximum microphone input level: +12 dBu
• Preamp SNR: 94 dB
• Preamp THD: <0.005%
• Line inputs: RCA stereo
• Maximum line input level: +12 dBu

Outputs

• Line outputs: 6.35 mm TRS balanced
• Maximum output level: +18 dBu
• Output impedance: 100 Ohms
• Headphone output: 6.35 mm TRS stereo
• Headphone output power: 100 mW / channel @ 60Ω

Connectivity

• Audio network AVB: Locking XLR + Ethernet RJ-45
• Network control port: RJ-45
• Recording USB port: USB 2.0 Type-B

Dimensions & Weight

• Transport dimensions: 213 x 457 x 622 mm
• Product depth: 305 mm
• Transport weight: 7.48 kg
