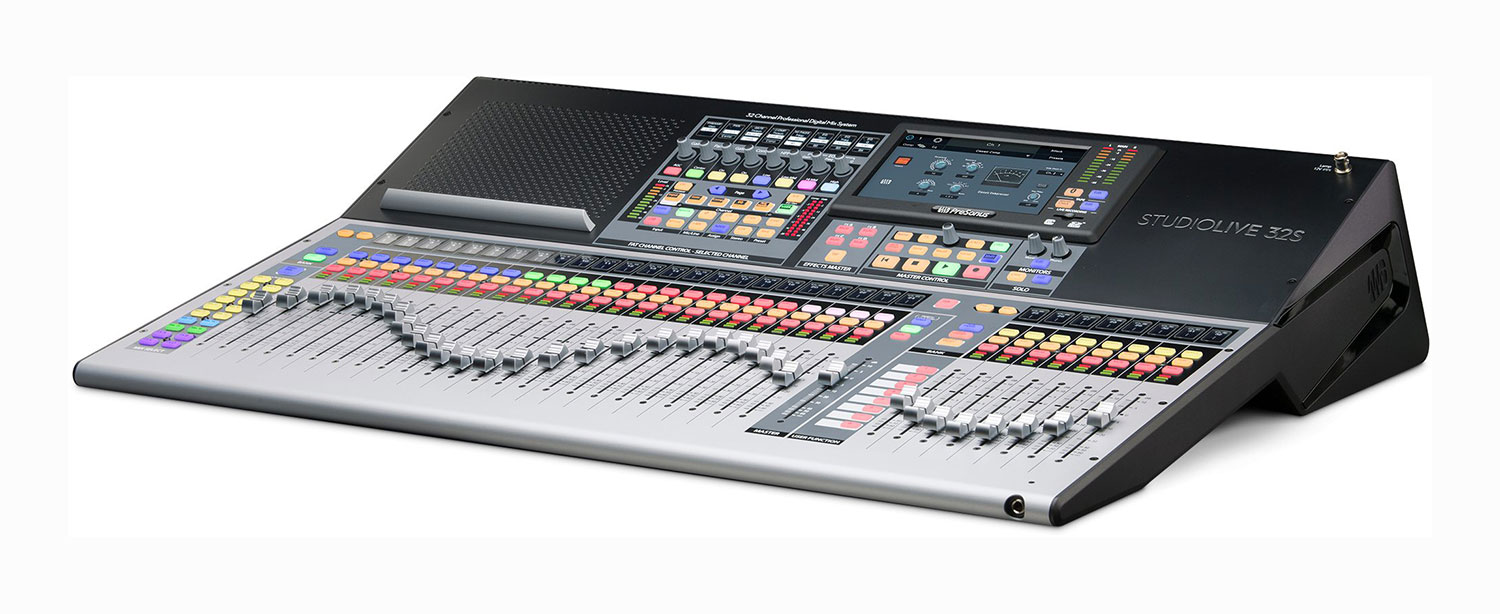

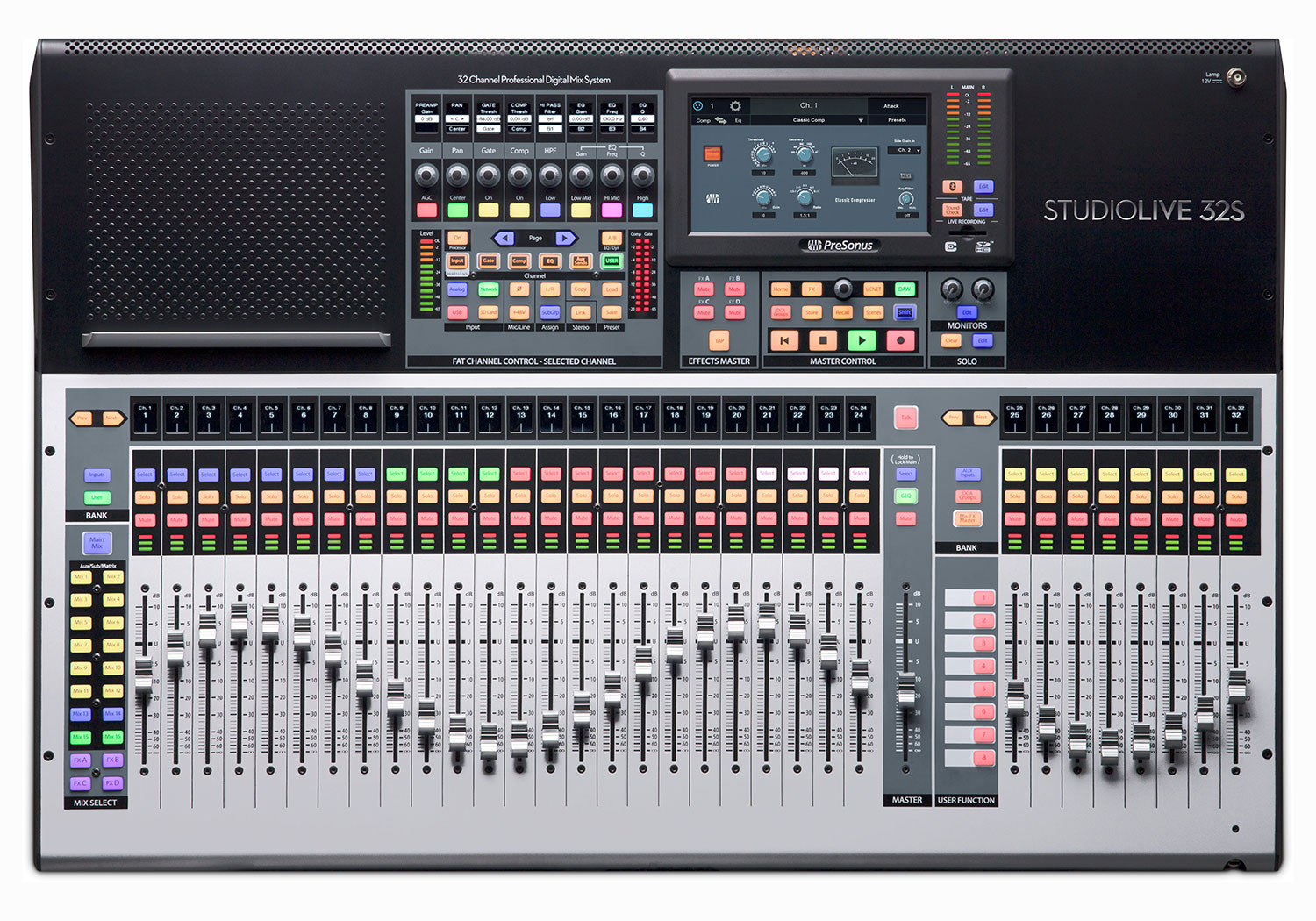

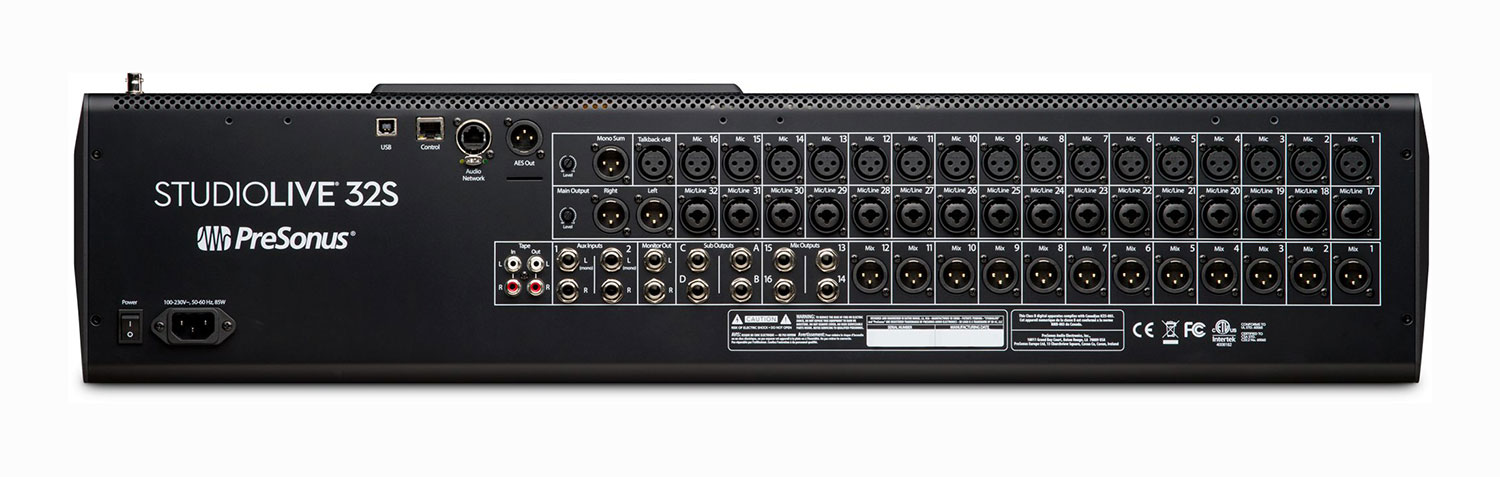

Presonus StudioLive 32S, a digital audio mixer with 32 channels that offers the processing power of large consoles in a compact format. Equipped with a dual-core PreSonus FLEX DSP engine, the StudioLive 32S can process 40 channels, 26 mix buses, and 286 simultaneous processors - including 4 stereo reverb systems and Fat Channel plugin models on each input channel and mix bus.
With 128 (64x64) USB channels for recording, 128 AVB I/O channels, flexible routing options, and studio-level audio quality, the StudioLive 32S mixer provides an exceptional experience.
Viewed as an integrated module within a complex ecosystem, Presonus StudioLive 32S also efficiently and ergonomically integrates recorder components, multichannel USB audio interface, SD card reader, Bluetooth communication module, and AVB-compliant equipment interconnection interface (avoiding a proprietary standard that would require the purchase of additional modules or accessories to ensure compatibility, a context valid when exiting the manufacturer's ecosystem), dedicated DSPs for audio processing, and software. The implementation set makes any purchase of complementary equipment redundant in other competitive cases (audio interface, recorder, external audio processors, communication modules, etc.), directly contributing to environmental protection.
33 motorised faders, touch-sensitive
40 input channels:
32 XMAXX preamps
2 x balanced stereo auxiliary inputs
1 x stereo tape (RCA, Bluetooth, USB, AVB or SD)
4 x Flex FX returns
1 x Talkback
26 x mix buses:
16 x FlexMix that can be Aux, Subgroup, Matrix
4 x dedicated Flex FX buses
4 dedicated subgroups
Main stereo bus
286 simultaneous processors:
HPF
Gate / Expander
Compressor with Fat Channel plugin models
4 or 6 band parametric EQ with Fat Channel plugin models
Limiter
31 band graphic EQ
4 x Flex FX slots with renowned reverb and delay emulations
State Space-Modeled Fat Channel compressor and EQ plugins available on each input and output bus
Flex FX multi-effects processor with 4 locations and 4 dedicated effects buses
24 x DCAs for channel group control
USB recording on 128 channels, 64 x 64
Integrated SD recorder 34 x 34 with Virtual Soundcheck mode
Networking via AVB, 64 x 64 channels for connecting to NSB stage boxes, EarMix 16M, other mixers, etc.
User profile system: allows different rights settings for different operators
Digital patching per channel from any analog source, AVB, USB or SD
7" touch screen
Bluetooth 4.1 Stereo on the Tape channel
Dynamic range: 115 dB (A-wtd, 48 kHz)
AES/EBU Output
Internal processing: 32-bit, floating point
Sampling rate: 24 bits 48 kHz, 44.1 kHz
DAW control:
Advanced integration with Studio One
MCU emulation mode for Logic
HUI emulation for ProTools
Software:
UC Surface: fully controllable remotely via computer, iPad or Android tablets
QMix-UC: monitoring software via Android/iOS tablets/phones
Capture: with Automated Virtual Soundcheck and scene storage along with audio source
