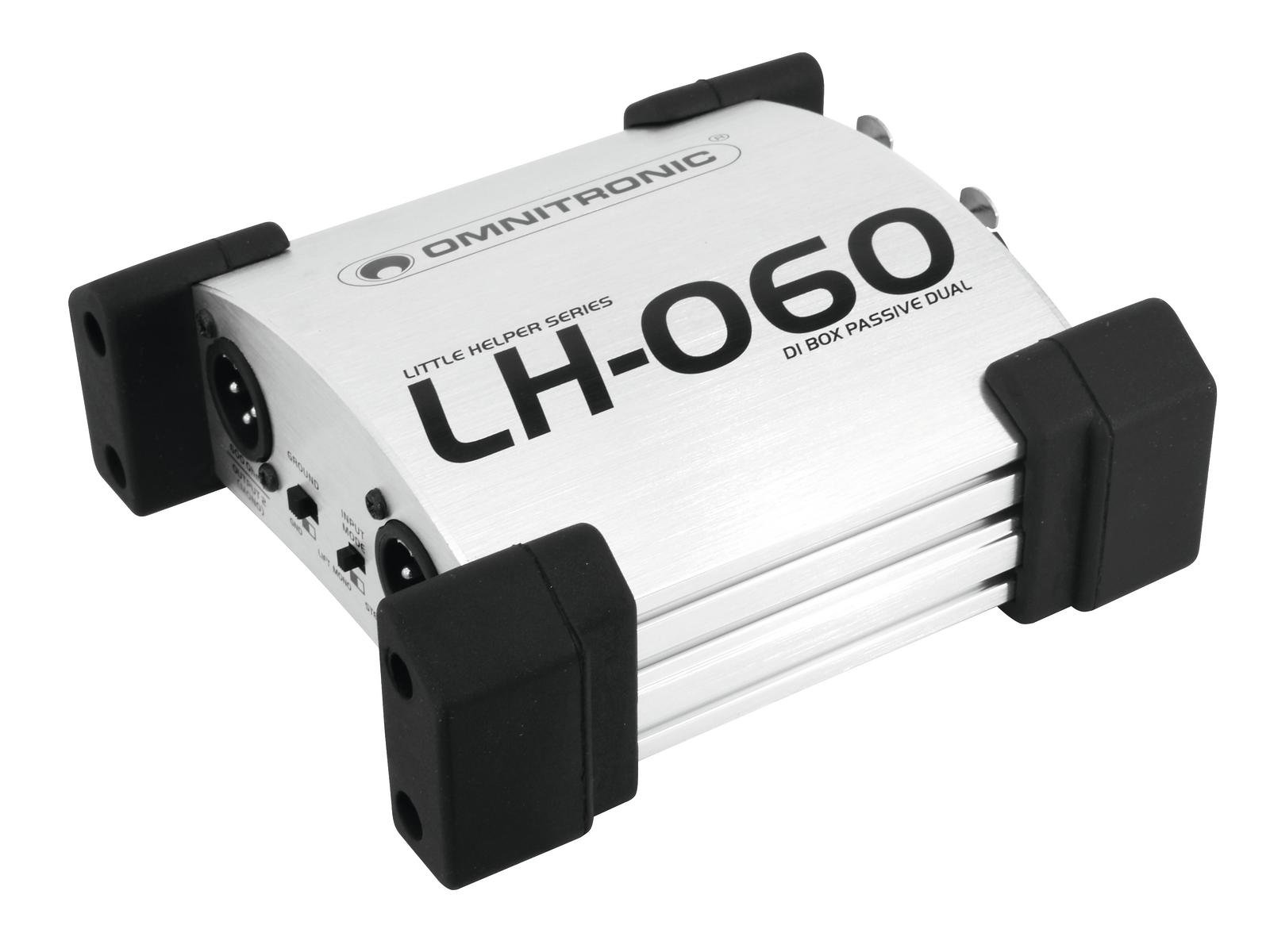

Passive DI box with 2 channels/splitter, silver

2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
2 low-impedance XLR outputs
Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs for connecting to a mixer
Switchable split mode (input 2 directs the signal to both outputs)
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Cables can be laid under the housing

Package contents

Frequency range:	15 - 30000 Hz
Impedance:	Input: 50 kOhm Output: 600 Ohm
Input attenuation:	0 dB, -20 dB, -40 dB; switchable
Control elements:	Groundlift selector
Connections:	Input: 2 x combined XLR 3-pin/jack 6.35 mm (F) (mounting version) Output: line via 2 x XLR 3-pin
Max. level:	Output: +6 dBu
Dimensions:	Width: 15 cm Depth: 13 cm Height: 6 cm
Weight:	650 g
