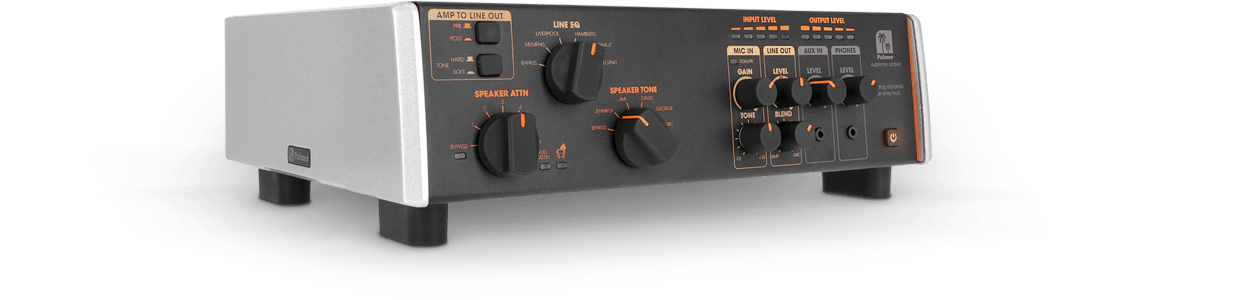

Palmer Supreme Soaker Analog Dynamic Tube Amp Hub

Palmer Supreme Soaker Analog Dynamic Tube Amp Hub - Attenuator, DI box, Amplifier for headphones, Load box, Microphone preamplifier, Power Soak, Analog re-amping device, Speaker simulator.

• Signal processing: Analog
• Controls on the front panel:
  • Speaker attenuation in 7 steps
  • Auxiliary input level,
  • Hard/Soft tone selector,
  • Line equalizer (5 voices),
  • Line output mix,
  • Line output level,
  • Microphone gain,
  • MIC tone,
  • Headphone level,
  • Pre/Post switch (from amplifier to line output),
  • Speaker tone (5 voices)
• Controls on the back panel:
  • Amp Load Impedance Switch,
  • FX Level (Pro/Instrument),
  • FX Loop Line Out,
  • FX Loop Re-Amp,
  • GND/Lift,
  • MIC/LINE Input PAD,
  • Phantom Power,
  • Polarity
• Number of inputs: 5
• Input type: Balanced, Unbalanced
• Input connectors: 3.5 mm Jack, 6.3 mm Jack, XLR
• Number of outputs: 6
• Output type: Balanced, Unbalanced
• Output connectors: 3.5 mm Jack, 6.3 mm Jack, XLR
• Lift switch: Yes
• Transformer-isolated outputs: Yes
• Internal load impedance: 16 ohms, 8 ohms
• Minimum load in OFF state: 16 ohms
• Maximum input handling: 150 W
• Power attenuator: 7 steps
• Voicing filter: Speaker tone equalizer in 5 steps and line equalizer in 5 steps
• Indicators: Bypass, full attenuation, input level, MIC/Clip signal, output level, output level, absorption power, thermal overload
• Power supply: +9 V DC with barrel connector - 1.5 A
• Power supply polarity: Centre negative
• Power connector: 2 x 5.5 mm
• Maximum power consumption: 13.5 W
• Standby power consumption: 0.3 W
• Dimensions (L x H x D): 334 x 108 x 274 mm
• Weight: 6.6 kg
• Ambient temperature (in operation)
• Accessories (included): Power supply
