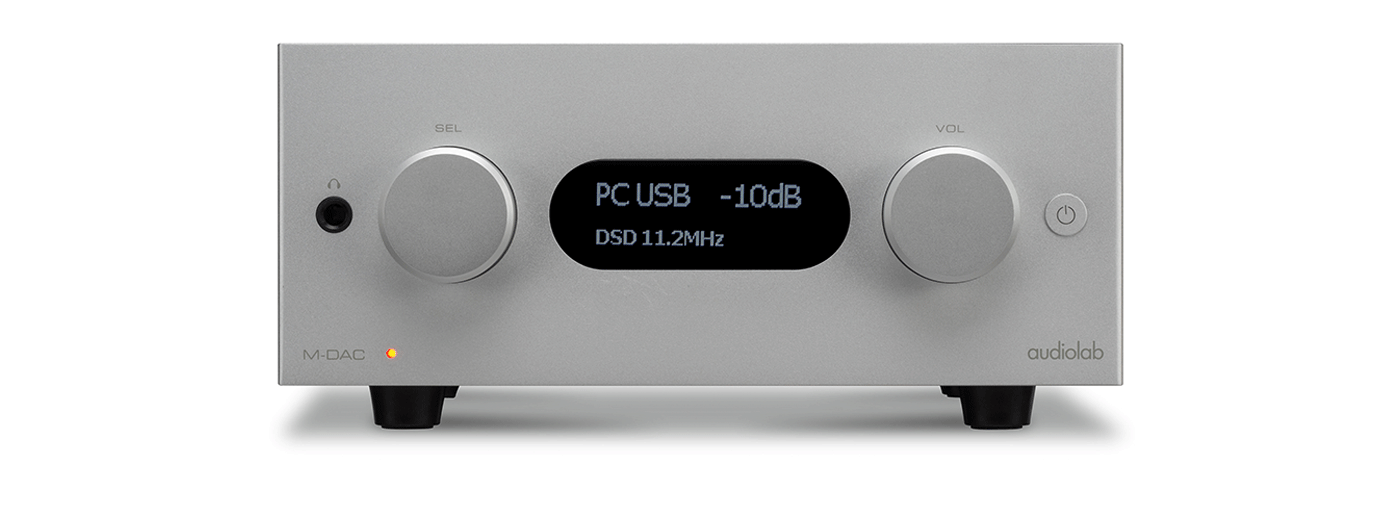

Audiolab M-DAC+ Silver

DA Converter

high-performance DAC with ESS Sabre32 9018 chip for superior audio quality.
sampling rates up to 32-bit / 384kHz via USB and DSD support.
multiple digital inputs including USB, Coaxial, and Optical for versatile connectivity.
balanced output voltage of 4.5V RMS for professional audio setups.
compact dimensions of 114 x 247 x 292mm and lightweight at 3.7kg.

Variants:

929⁰⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

4781 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Audiolab M-DAC+ Silver Add to cart: 929⁰⁵ €

Audiolab M-DAC+, a high-performance, multifunctional DAC (digital-to-analog converter) for residential applications, designed to sit on a desk or table or to integrate into a hi-fi system. It incorporates a high-performance digital preamplifier and a Class A output stage for connection to an amplifier and speakers (the output can be fixed for those who wish to use an existing preamplifier or integrated amplifier), in addition to a high-quality headphone amplifier.

DAC: ESS Sabre32 9018 Chip
Sampling Rate:
- 24-bit / 192kHz (Optical, Coaxial, AES),
- 32-bit / 384kHz (USB),
- 2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256)
Digital Inputs:
- 2 x Coaxial,
- 2 x Toslink Optical,
- 1 x AES/EBU,
- 1 x USB for PC USB,
- 1 x USB for iPod/iPhone/iPad
Digital Outputs:
- 1 x Coaxial,
- 1 x Toslink Optical
Output Voltage: Balanced: 4.5V RMS, Unbalanced: 2.25V RMS
Output Impedance: Balanced: 20Ω, Unbalanced: 10Ω
THD: <0.002%
Frequency Response: 20Hz - 20kHz (± 0.2dB)
Dynamic Range: RCA: > 115dB, XLR: > 120dB
Crosstalk: RCA: > 120dB, XLR: > 130dB
Dimensions: 114 x 247 x 292mm
Weight: 3.7kg
Silver finish

Product code: AH-004941-**A

Unit of sale: piece

Specifications:

Recommended use:	Stationary Hi-Fi Systems
Preamplifier function:	Yes
Maximum resolution (Sample Rate):	32-bit / 384-kHz
Number of channels:	Stereo (2 channels)
