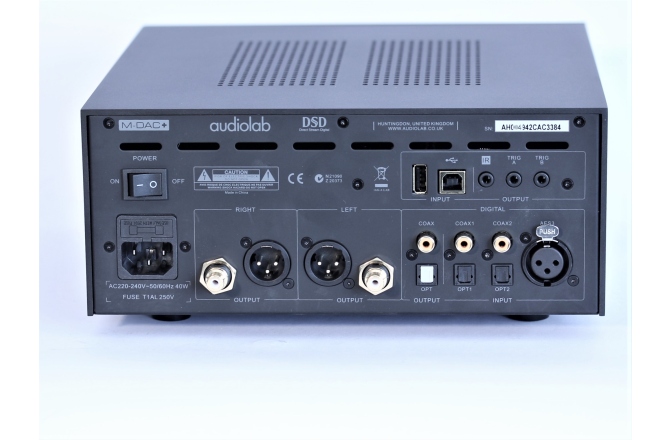

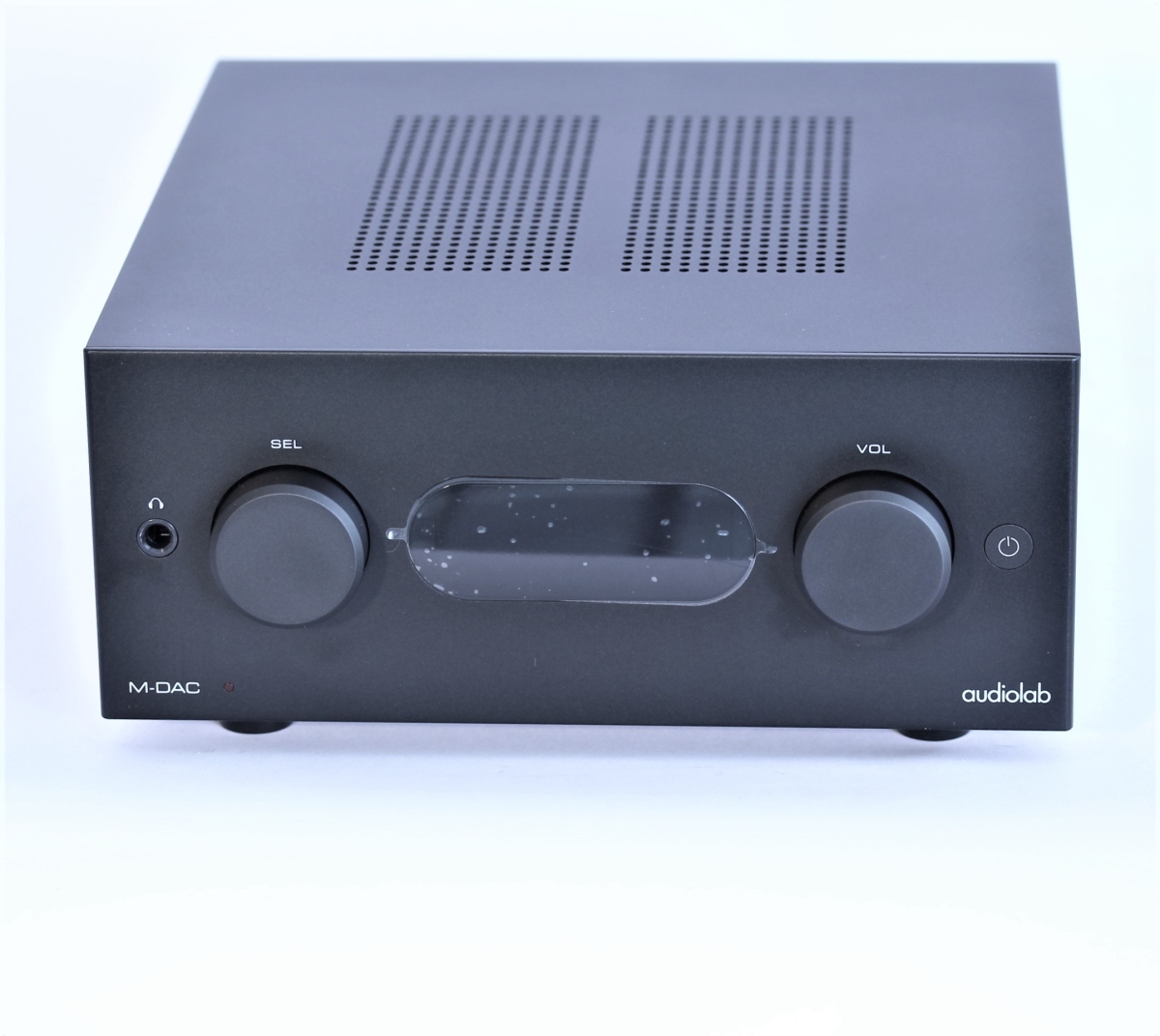

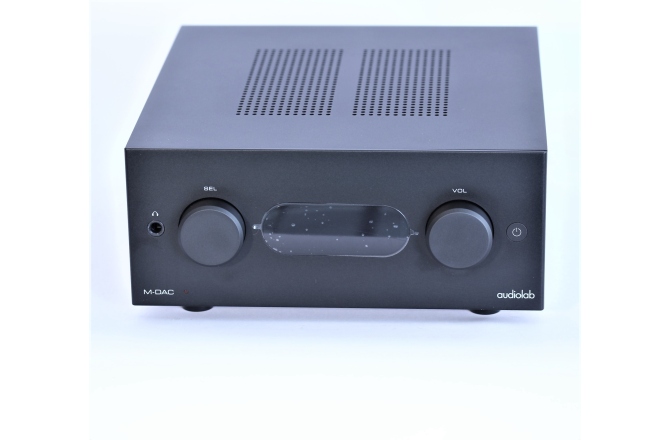

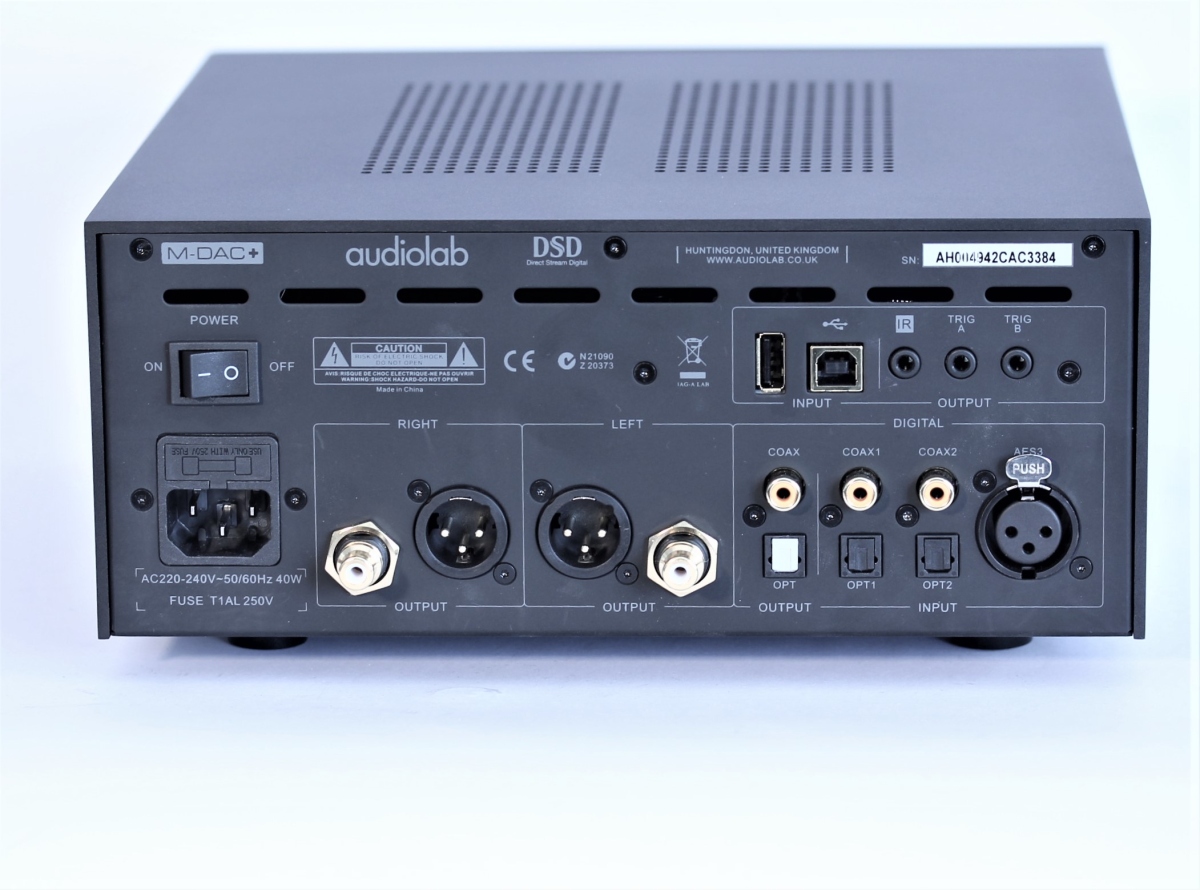

OPEN BOXAudiolab M-DAC+ Black

Audiolab M-DAC+, a high-performance, multifunctional DAC (digital-to-analog converter) for residential applications, designed to sit on a desk or table or to integrate into a hi-fi system. It incorporates a high-performance digital preamplifier and a Class A output stage for connection to an amplifier and speakers (the output can be fixed for those who wish to use an existing preamplifier or integrated amplifier), in addition to a high-quality headphone amplifier.

• DAC: ESS Sabre32 9018 Chip
• Sampling Rate:
  • 24-bit / 192kHz (Optical, Coaxial, AES),
  • 32-bit / 384kHz (USB),
  • 2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256)
• Digital Inputs:
  • 2 x Coaxial,
  • 2 x Toslink Optical,
  • 1 x AES/EBU,
  • 1 x USB for PC USB,
  • 1 x USB for iPod/iPhone/iPad
• Digital Outputs:
  • 1 x Coaxial,
  • 1 x Toslink Optical
• Output Voltage: Balanced: 4.5V RMS, Unbalanced: 2.25V RMS
• Output Impedance: Balanced: 20Ω, Unbalanced: 10Ω
• THD: <0.002%
• Frequency Response: 20Hz - 20kHz (± 0.2dB)
• Dynamic Range: RCA: > 115dB, XLR: > 120dB
• Crosstalk: RCA: > 120dB, XLR: > 130dB
• Dimensions: 114 x 247 x 292mm
• Weight: 3.7kg
