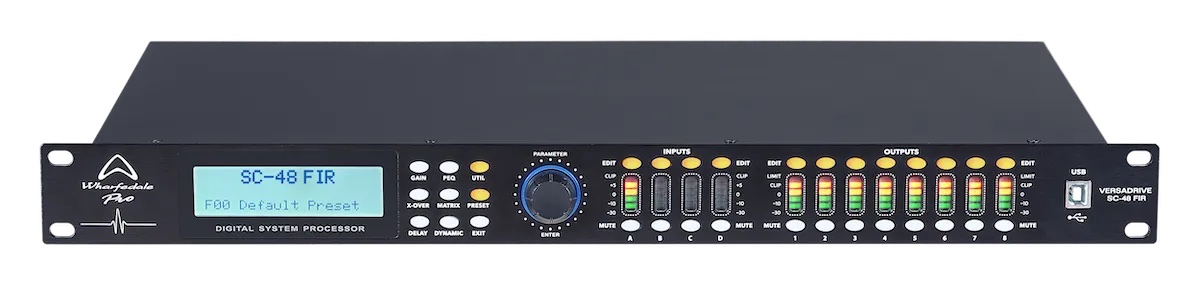

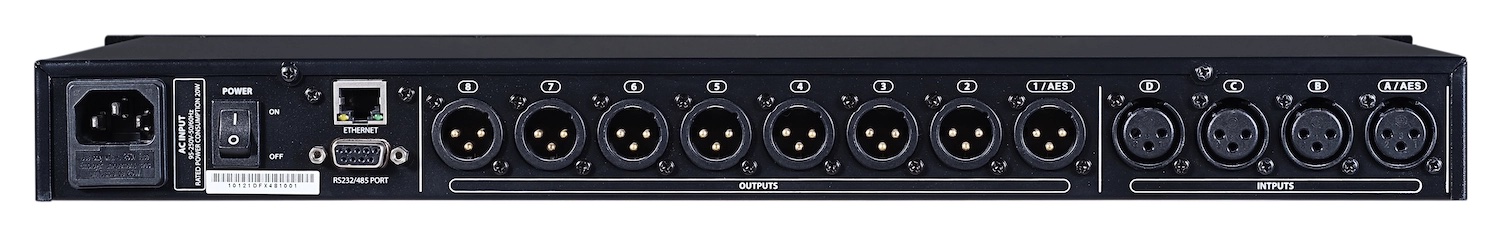

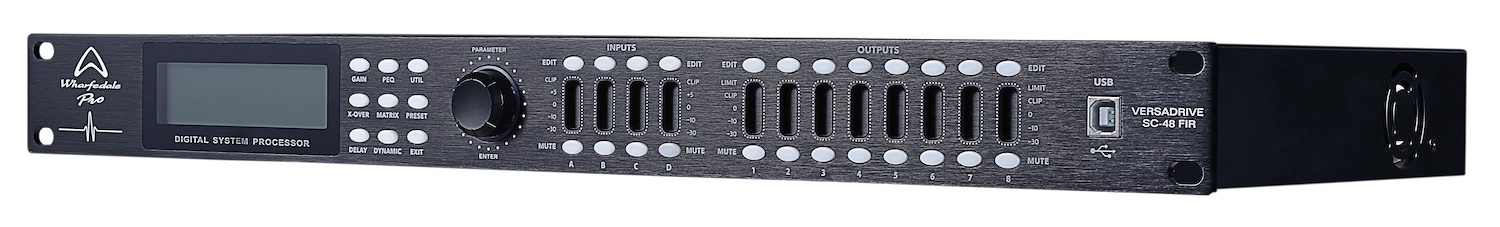

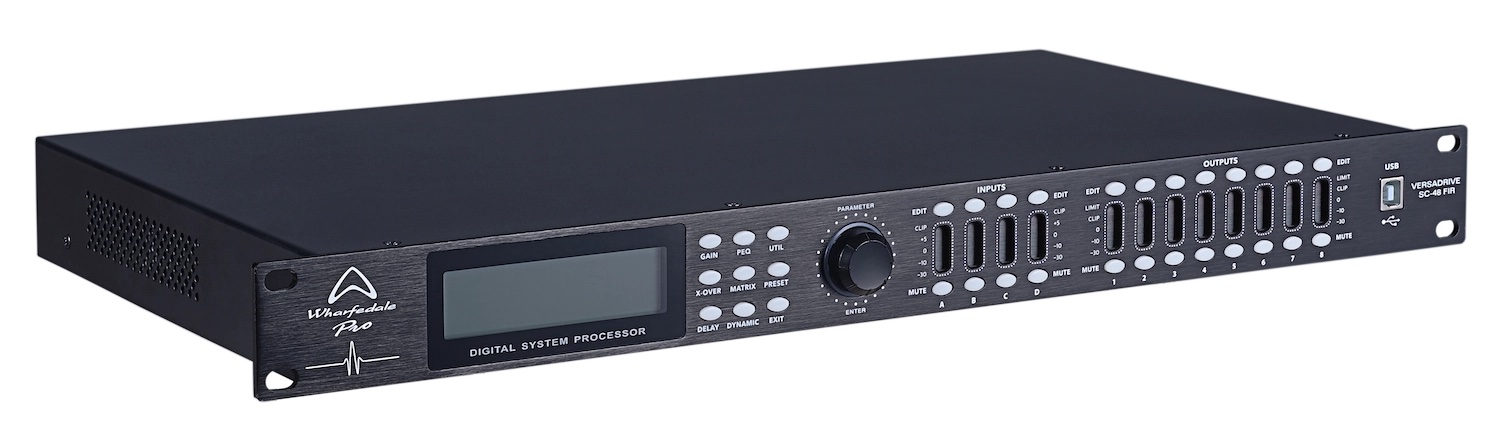

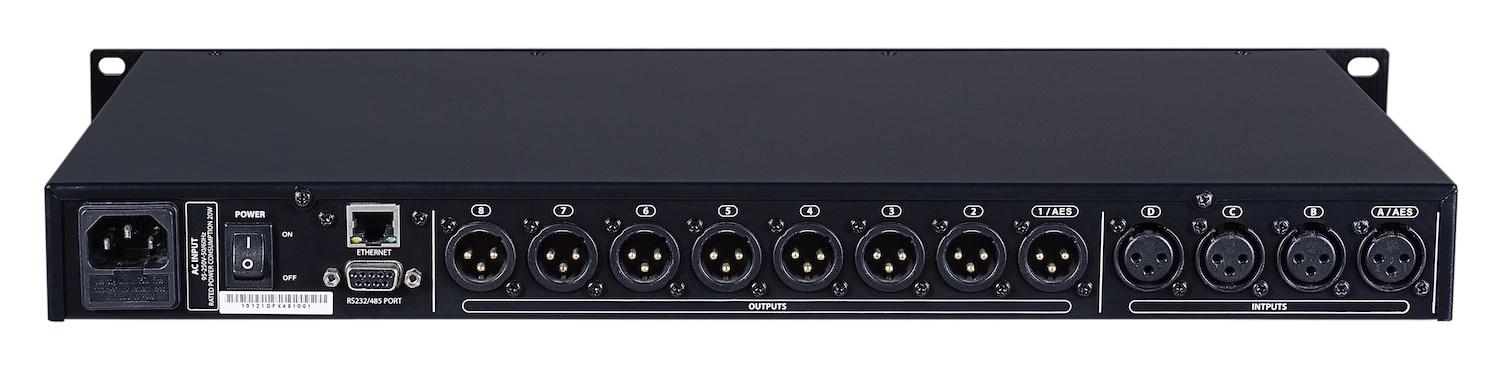

Wharfedale Pro VersaDrive SC-48 FIR

Wharfedale Pro SC-48 FIR, complete digital processor for PA applications:

• 24-bit / 96 kHz converters
• 4 inputs x 8 outputs matrix
• AES digital input
• Internal DSP + FIR filtering
• RMS compressors and individual Peak limiters on each output
• USB / RS232 / RS485 / RJ45 connectivity
• Processing functions:
  • on inputs: Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay
  • on outputs: Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Linking
• FIR filtering:
  • independent control of magnitude and phase
  • more detailed equalization
  • optimisation of frequency and power response
• frequency range: 20 Hz-20 KHz, -0.3 dBu
• signal-to-noise ratio: >115 dBu
• distortion: < 0.005 at 1 KHz (0 dBu)
• maximum input level: +18 dBu
• maximum output level: +20 dBu
• dimensions: 480 × 245 × 450 mm
• weight: 2.88 kg
