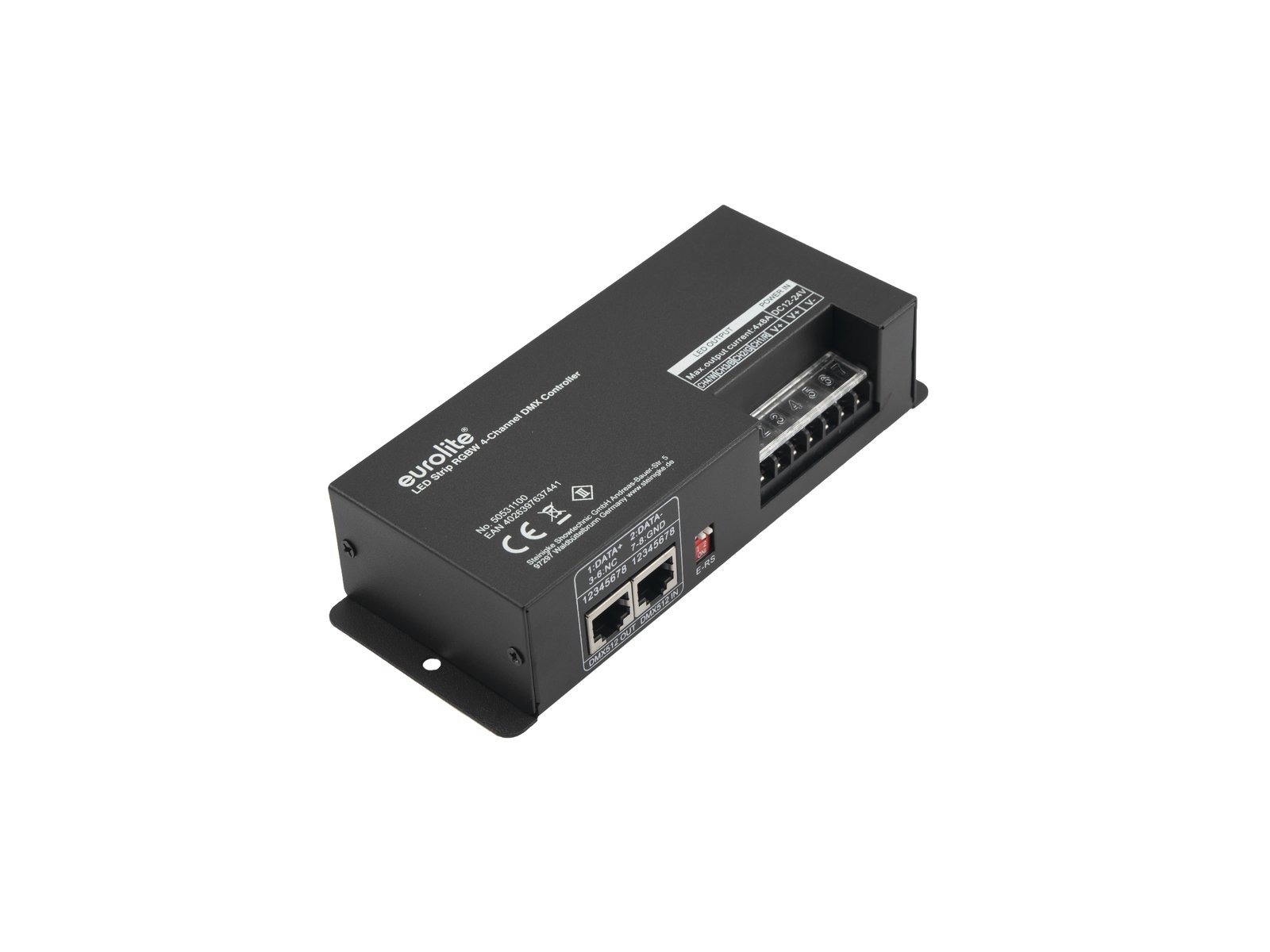

Eurolite LED Strip RGBW 4-Channel DMX Controller

DMX controller with interface

compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
converts standard DMX512 signals to PWM signals e.g. for driving LED strips
4 separate control channels for individual color mixing of red, green, blue and white LEDs
switchable termination resistor
plug-in screw terminals for connecting the LEDs and the power supply

47⁴⁰ €

In stock and deliverable.

Central warehouse: 1

Add to cart

also deliverable via

244 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

Eurolite LED Strip RGBW 4-Channel DMX Controller Add to cart: 47⁴⁰ €

4-channel LED controller with DMX interface for RGB LEDs 12-24 V

Compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
4 separate control channels for individual color mixing of red, green, blue and white LEDs
Switchable termination resistor
Plug-in screw terminals for connecting the LEDs and the power supply
RJ45 jacks for serial connection
Rugged black metal housing
Can be operated in 4 CH mode
Integrated Showprograms
Controlling by stand-alone

Package contents

Power supply:	12/24V DC
Power consumption:	Max. 384 W 12 V DC Max. 768 W 24 V DC Max. 96 W 12 V DC per channal Max. 192 W 24 V DC per channal
Output current:	Max. 4 x 8 A per channal
Power connection:	Via screw terminal
Power output:	Screw terminal
DMX channels:	4
DMX input:	3-pin XLR (M) mounting version 1 x RJ-45 (F) mounting version
DMX output:	3-pin XLR (F) mounting version RJ-45 (F) mounting version
Control:	Stand-alone
Dimensions:	Length: 16,4 cm Width: 6,6 cm Height: 3,8 cm
Weight:	300 g
