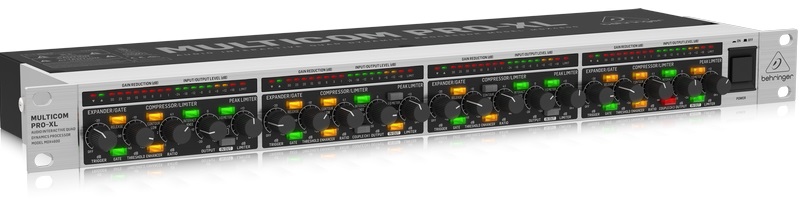

MULTICOM PRO MDX4600 is a 4-channel dynamics processor with IKA compressor/limiter functionality in a device that occupies only one rack unit. However, you will receive the unique AUTO function from Behringer along with a variety of configuration possibilities.
With a multitude of additional functions, the MDX4600 offers you plenty of dynamic processing power. IGC function for peak limiting, channel pairing for stereo operation, 8-segment level meter for input/output signal monitoring and gain control. Selectable operating level (+4dBu / -10dBV). Balanced inputs and outputs with TRS 1/4 connectors and XLR with gold contacts. High-quality potentiometers and illuminated switches.
frequency range: 0.35Hz - 200kHz, +/- 3 dB
signal-to-noise ratio: 115 dB
harmonic distortion THD: 0.008%
crosstalk: -110 dB

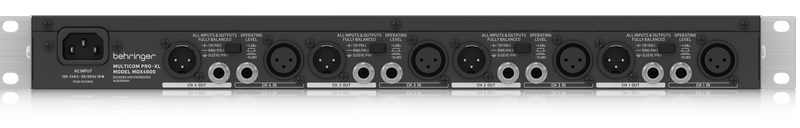

balanced inputs and outputs with XLR and 1/4" jack connectors
dimensions: 1 rack unit, 19"
weight: 2.2 kg
Expander/gate section:
type IRC (Interactive Ration Control)
variable threshold
attack < 1ms/50dB program dependent
variable release: SLOW 100ms/1dB; FAST 100ms/100dB
Compressor section:
type: IKA (Interactive Knee Adaptation)
variable threshold: -40 to +20dB
variable attack/release: automatic/manual
characteristic in automatic mode: adaptive wave compressor
manual attack times: 0.3ms/20dB - 300ms/20dB
automatic attack times: 15ms at 10dB, 5ms at 20dB, 3ms at 30dB
manual release times: 0.05s/20dB - 5s/20dB
automatic release times: program dependent, typically 125dB/s
