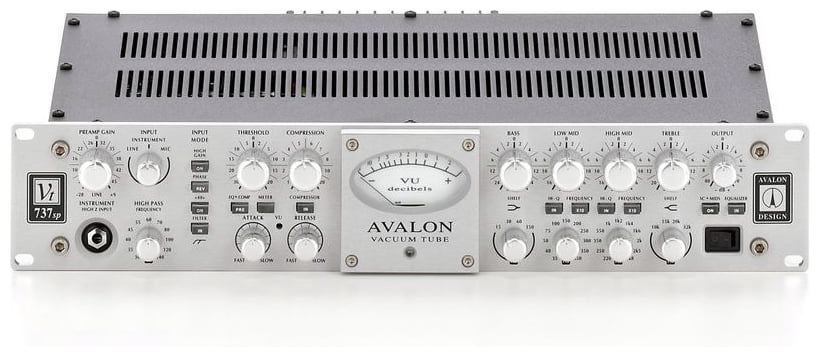

Avalon Design VT-737sp Direct Recording Channel

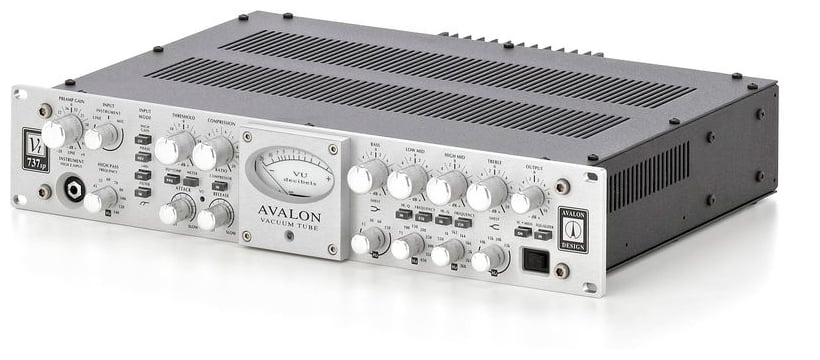

Avalon VT-737SP - single-channel Class-A tube dynamic processor that combines a tube microphone preamplifier, an instrument DI, an opto-compressor, and a 4-band parametric EQ.

Features:

• Vacuum triode tube signal path
• Microphone preamplifier with +48V phantom power
• Instrument DI with front panel connector
• High-gain switch increases the gain amount of the preamplifier
• Complete dynamic control from soft compression to hard-knee limiting, adjustable via threshold, ratio-compression, attack, and release controls
• Special spectral control including de-esser available via dual sweep mid EQ to side-chain switch
• Selectable discrete Class-A equalizer between Pre/Post compressor
• High and low frequency bands providing characteristics of a fully passive design
• Dual mid bands include variable frequencies and switched Q-width selection
• Extended mid frequency range in high and low bands using 10 frequency multipliers
• Output level control provides variable control over the entire signal path

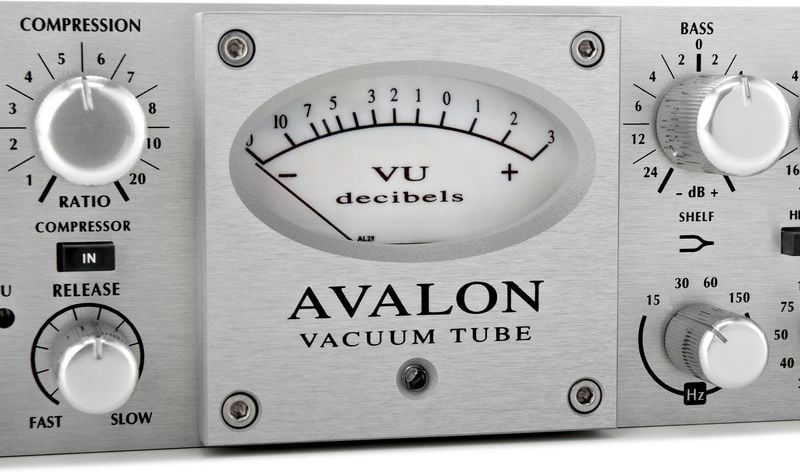

• Large display VU meter for monitoring output level and compressor gain reduction

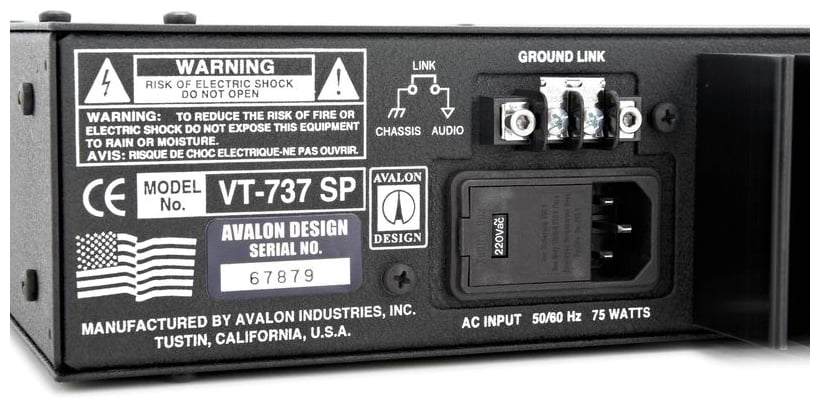

• Selectable power supply

Technical Specifications:

• Number of channels: 1

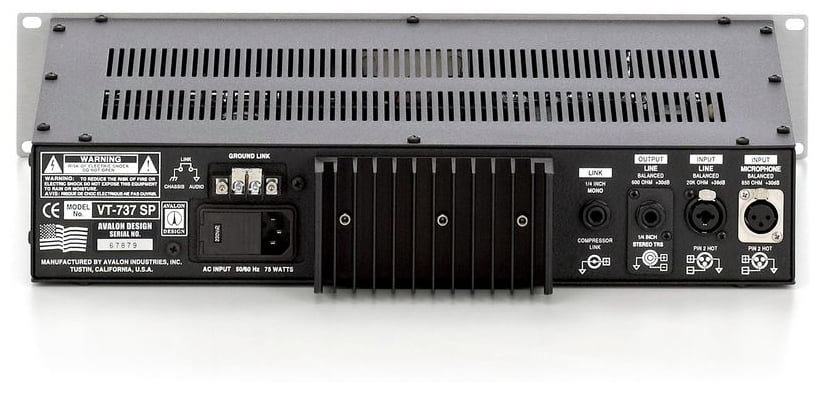

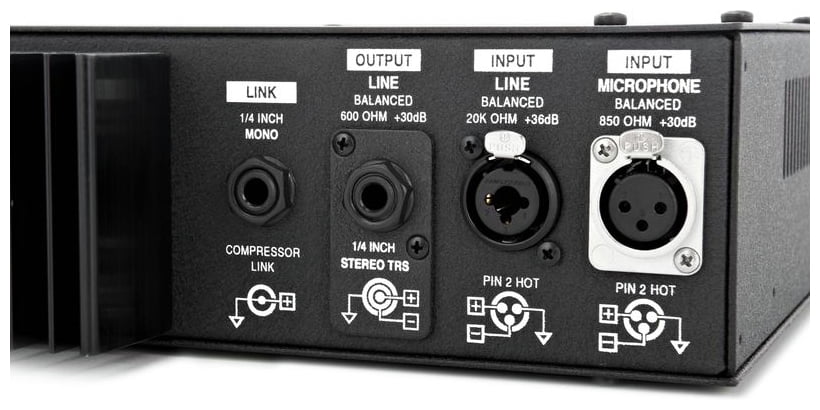

• Inputs:
  • 1 x XLR for microphone (on the back of the unit)
  • 1 x balanced XLR line input (on the back of the unit)
  • 1 x 1/4" TS instrument jack (on the front of the unit)
• Outputs: 1 x XLR
• Frequency response: 10Hz to 200kHz, -3dB line input to line output
• Noise: EIN: -116dB, 22Hz to 22kHz unweighted

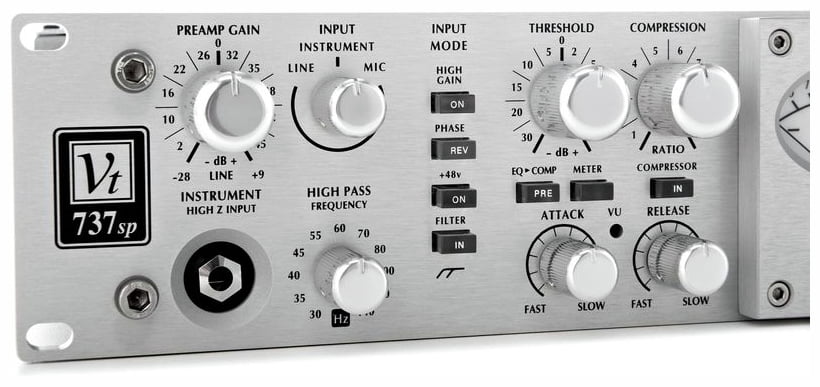

Preamplifier:

• Gain range:
  • Mic Pre: 0dB to 58dB
  • Instrument: 0dB to 30dB
  • Line: -27dB to 28dB
  • Maximum output level: +30dB
  • Phantom Power: +48V

Compressor:

• Threshold range: -30dB to +20dB
• Ratio: 1:1 to 20:1
• Attack time: 2mSec to 200mSec
• Release time: 100mSec to 5Sec
• Sidechain: Internal EQ

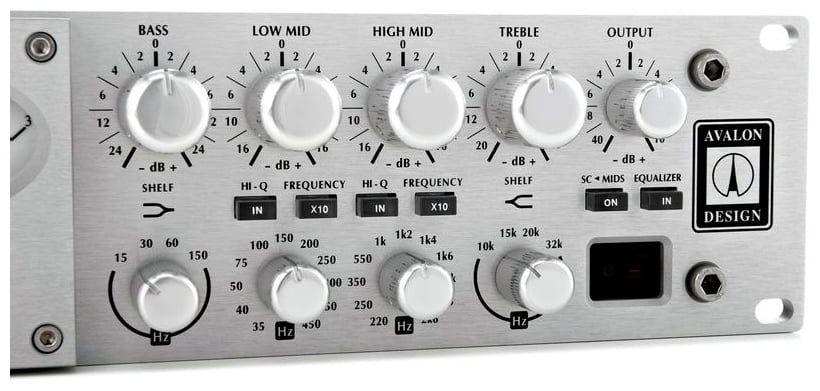

EQ:

• Filter type: discrete Class A, variable active design and selectable passive
• Frequency bands:
  • High frequencies: selectable, 10kHz, 15kHz, 20kHz, 32kHz
  • Mid-high frequencies: variable 200Hz to 2.8kHz or 2kHz or 28kHz (10x switch)
  • Mid-low frequencies: variable 30Hz to 450Hz or 300Hz or 4.5kHz (10x switch)
  • Low frequencies: selectable, 15Hz, 30Hz, 60Hz, 150Hz
• Bandwidth:
  • High frequencies: Shelf
  • Mid-high frequencies: Hi-Lo Q
  • Mid-low frequencies: Hi-Lo Q
  • Low frequencies: Shelf
• Range (Boost/Cut)
  • High frequencies: +/- 20dB
  • Mid-high frequencies: +/- 16dB
  • Mid-low frequencies: +/- 16dB
  • Low frequencies: +/- 24dB range
• Format: 19" / 2 RU
• Weight: 11.8 kg
