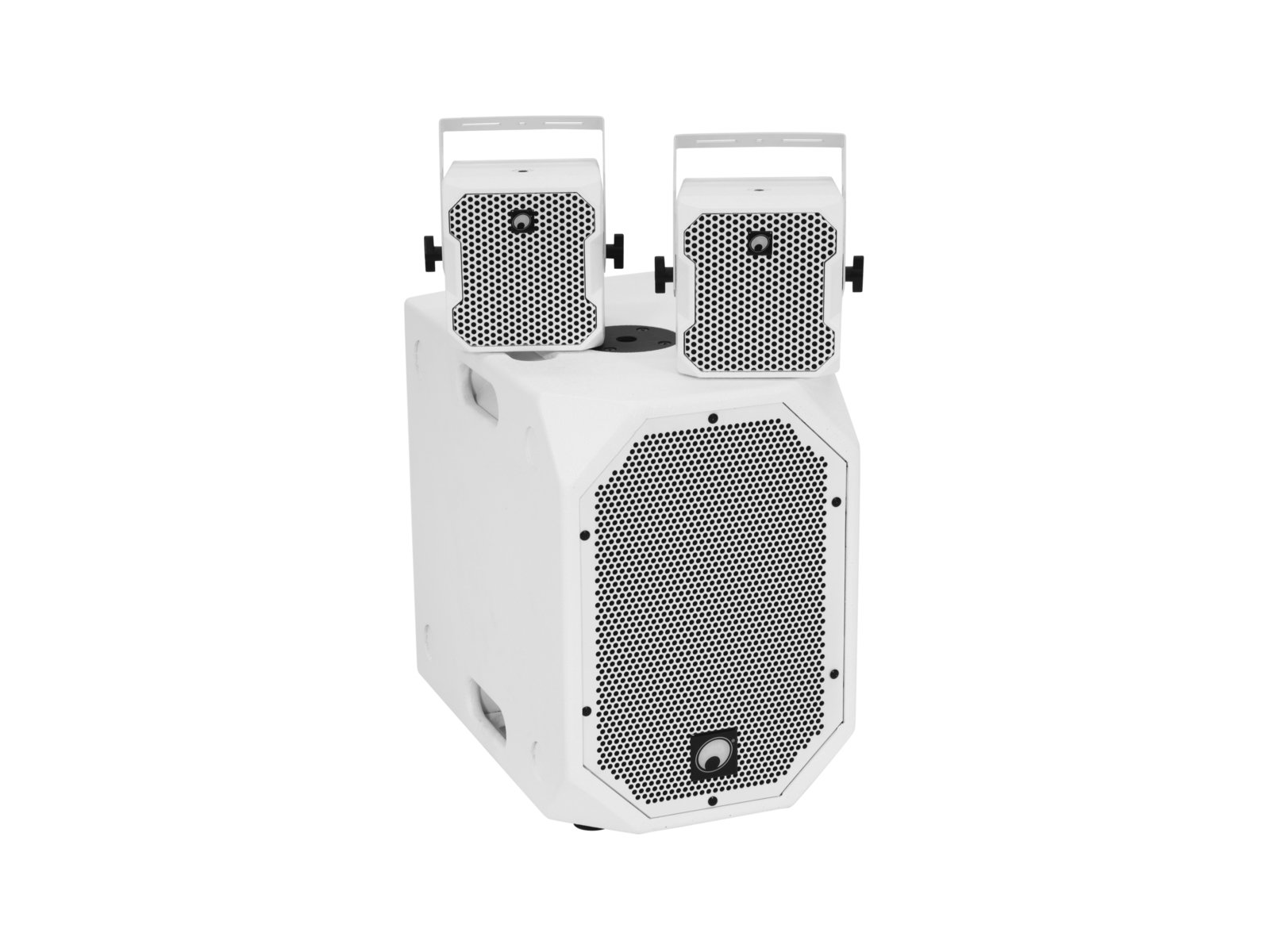

BOB-10A Active Subwoofer, including 2 satellite speakers 4" BOB-4
OMNITRONIC BOB-10A Active Subwoofer White
10-inch subwoofer with DSP and Bluetooth for the BOB series
- 10" bass reflex subwoofer with DSP and an RMS power of 900 watts
- Flexibly expandable with BOB-4 satellites for 2.1, 4.1, and 8.1 configurations
- D-Class amplifier controlled by DSP (300 W + 2 x 300 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal inputs via combo jacks (XLR/6.3 mm) and RCA
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- Control via Bluetooth
- For applications such as: Mobile DJs/entertainers; Trade fair and shop setups; Installation; home entertainment; restaurants, bars, and hotels; product presentations and lectures
- 4 robust transport handles
Package Contents
- 1 x subwoofer, 1 x user manual, 1 x power cable, 2 x speaker cables, 4 x feet, 4 x screws, 1 x declaration of conformity
OMNITRONIC BOB-4 Top 16 Ohm White 2x
2 satellite speakers 4" with support for the BOB series
- Pair of 16 ohm speakers with a 4" full-range driver.
- For use with BOB-10A subwoofers for 2.1, 4.1, and 8.1 configurations
- An adapter is required for optional mounting support
- U-shaped extension support and cable available for connecting 2 satellite speakers
- ABS plastic housing with threaded inserts M8 and M10
- With mounting support
- White metal grille with acoustic foam
Package Contents
- 2 x tops, 4 x knurled screws, 2 x mounting brackets, 2 x connectors (male)
| Weight: | 21.00 kg |
| OMNITRONIC BOB-10A Active Subwoofer White |
| Power: | Rated power: 300 W RMS LF
Rated: 2x 300 W RMS HF |
| Power Supply: | 230 V AC, 50 Hz |
| Power Consumption: | 1060 W |
| Power Connection: | Network input via IEC connector (M) power cable mounting version with safety plug (supplied) |
| Frequency Range: | 45 - 250 Hz |
| Sensitivity: | 100 dB |
| Max. SPL: | 125 dB |
| DSP: | Digital signal processor |
| Control: | Bluetooth |
| Mounting System: | 2x M20 thread |
| Circuits: | Class D |
| Control Elements: | Phase reverse switch |
| Controls: | Soft start; short circuit; limiter; overvoltage; overheating |
| Status LED: | Signal, power, limit, fault |
| Connections: | Input: line via 2 x 3-pin XLR/6.35 mm (F) combo jack (mounting version)
Output: speaker via 2 x built-in speaker sockets (F)
Output: line via 1 x 3-pin XLR |
| Input Channels: | 1 x stereo via combo socket or RCA or Bluetooth, channel control via rotary selector |
| Speaker: | 1 x woofer (10") approximately 25 cm
Voice coil (2") approximately 5 cm |
| Speaker Type: | Subwoofer |
| Construction Type: | Ventilated |
| Transport Handle: | 4 pcs/piece |
| Material: | MDF (medium density fiberboard), 15 mm |
| Colour: | White textured finish |
| Dimensions: | Width: 30 cm
Depth: 47 cm
Height: 43 cm |
| Weight: | 17.00 kg |
| OMNITRONIC BOB-4 Top 16 Ohm White 2x |
| Power: | Program: 150W
Rated power: 75 W RMS |
| Frequency Range: | 150 - 16000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 109 dB |
| Impedance: | 16 ohms |
| Mounting System: | Mounting bracket |
| Connections: | Input: speaker via 1 x terminal with screw
Input: speaker via 1 x built-in speaker socket (F) |
| Speaker: | 1 x high compression tweeter (4") approximately 10 cm
1 x high compression tweeter with voice coil (1") approximately 2.5 cm |
| Colour: | White coating, textured, painted |
| Dimensions: | Width: 15 cm
Depth: 16 cm
Height: 15.8 cm |
| Weight: | 4.00 kg |
