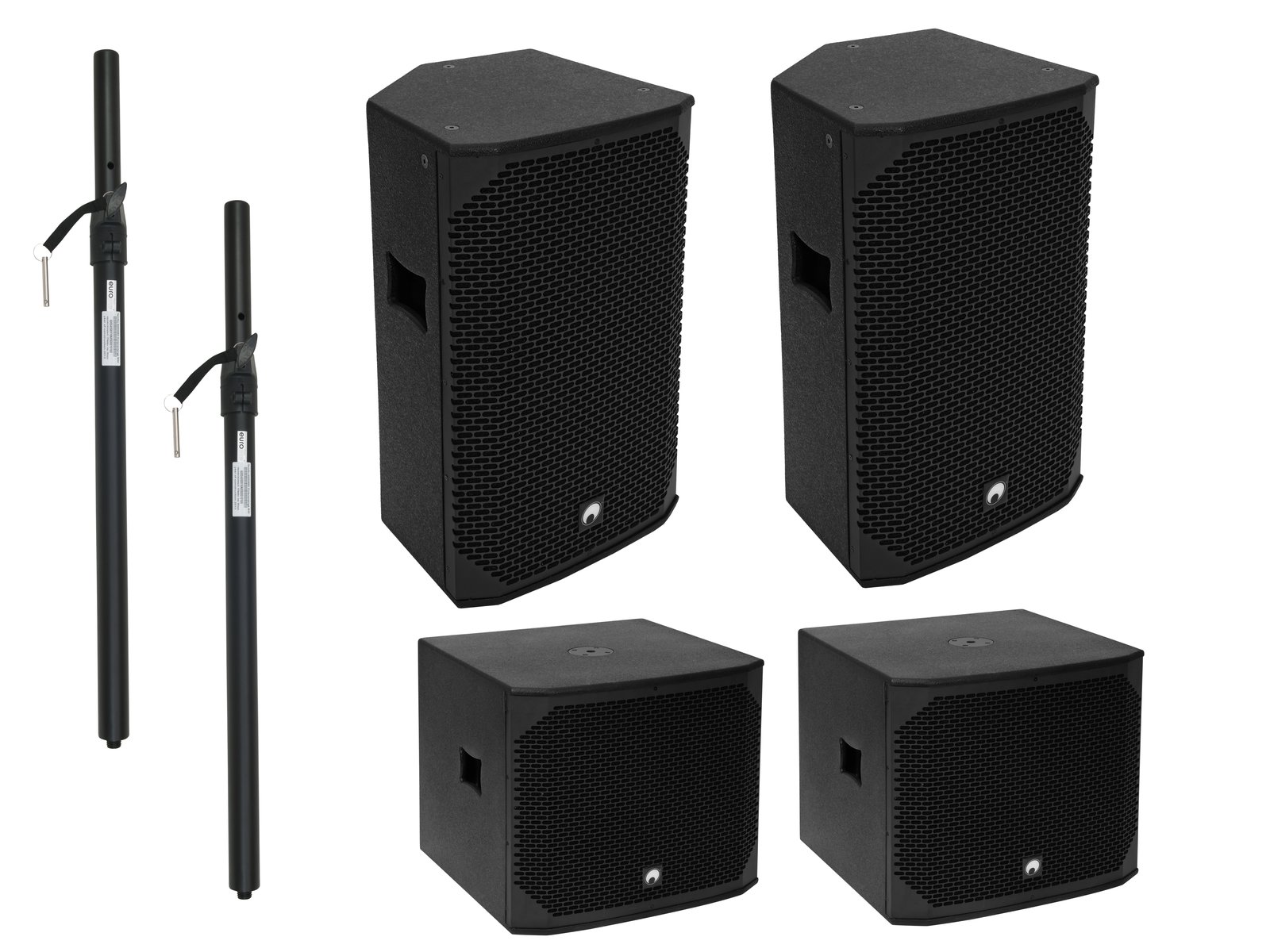

2x AZX-118A active PA subwoofer 400 W, 2x AZX-215A 2-way active top 350 W including 2x distance tubes
OMNITRONIC AZX-118A active PA subwoofer 400W
18-inch, 400 W active bass reflex PA subwoofer
- 46 cm (18") bass driver with 76 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel L/R outputs
- L/R XLR output with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Robust transport handle
- Black metal grille with acoustic foam
Package contents
- 1 x bass, 1 x user manual, 1 x power cable
OMNITRONIC AZX-215A 2-way active top 350W
Active speaker with 15-inch woofer, 1.75-inch titanium driver, LF 300 W RMS, HF 50 W RMS
- Bass-reflex cabinet with 2-way design featuring 38 cm woofer and 4.5 cm titanium driver
- Main control with 2-band EQ
- HF adjustment -4 dB, -2 dB, 0 dB
- Dual flange with tilt angle of 0° and 5° allows flexible positioning
- Black metal grille with acoustic foam
- Robust transport handle
- With mounting points
- Application possibilities: Standing; suspended; monitoring; on tripod
Package contents
- 1 x compact speaker, 1 x user manual, 1 x power cable
OMNITRONIC distance tube/subwoofer Satellite M20
Variable distance tube
- Connecting tube for satellite systems
- Screw and locking screw
- Powder-coated steel version
- M20 thread
Package contents
- 1 x distance tube, 1 x user manual
| Weight: | 120.00 kg |
| OMNITRONIC AZX-118A active PA subwoofer 400W |
| Power: | Nominal power: 400 W RMS |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input via IEC (M) connector, power cable mounting version with safety plug (provided) |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Pins: M20 thread |
| Circuits: | Class D |
| Control elements: | Phase reverse switch |
| controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR |
| Crossover frequency: | 80-200 Hz |
| Speaker: | 1 x woofer (18") approximately 45 cm
Voice coil drop (2.5") approximately 6.35 cm |
| Speaker type: | Subwoofer |
| Construction type: | Ventilated |
| Transport handle: | 1 pcs/piece |
| Material: | MDF (medium density fiberboard), 15 mm |
| Colour: | Black textured paint finish |
| dimensions: | Width: 66.5 cm
Depth: 66.5 cm |
| Weight: | 32.60 kg |
| OMNITRONIC AZX-215A 2-way active top 350W |
| Power: | Nominal power: 300 W RMS LF
Rated: 50 W RMS HF |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input via IEC (M) connector, power cable mounting version with safety plug (provided) |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Base: Ø 35mm variable tilt |
| Flying points: | 7 x M10 thread |
| Circuits: | Biamp class D |
| controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: 1 x combined XLR/6.35 mm jack (F) with 3 pins (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via combined socket (XLR/jack), channel control via rotary selector |
| Equalizer: | Master: 1 tone control with 2 bands |
| Speaker: | Woofer (15") approx. 38 cm with ferrite magnet
Voice coil drop (3") approximately 8 cm
High-frequency compression tweeter (1.75") approximately 4.5 cm |
| Speaker type: | Compact cabinet speaker |
| Transport handle: | 1 pcs/piece |
| Material: | MDF (medium density fiberboard), 15 mm |
| Colour: | Black textured paint finish |
| dimensions: | Width: 48.5 cm
Depth: 48 cm
Height: 75 cm |
| Weight: | 25.45 kg |
| OMNITRONIC distance tube/subwoofer Satellite M20 |
| Maximum load capacity: | 30 kg |
| Tube diameter sector: | 41 - 35 mm |
| Height: | Maximum: 130 cm
Minimum: 75 cm |
| Attachment system: | Ø 35mm |
| Type (general supports): | Distance tube |
| Colour: | Black |
| Thread: | M20 thread |
| Weight: | 900 g |
