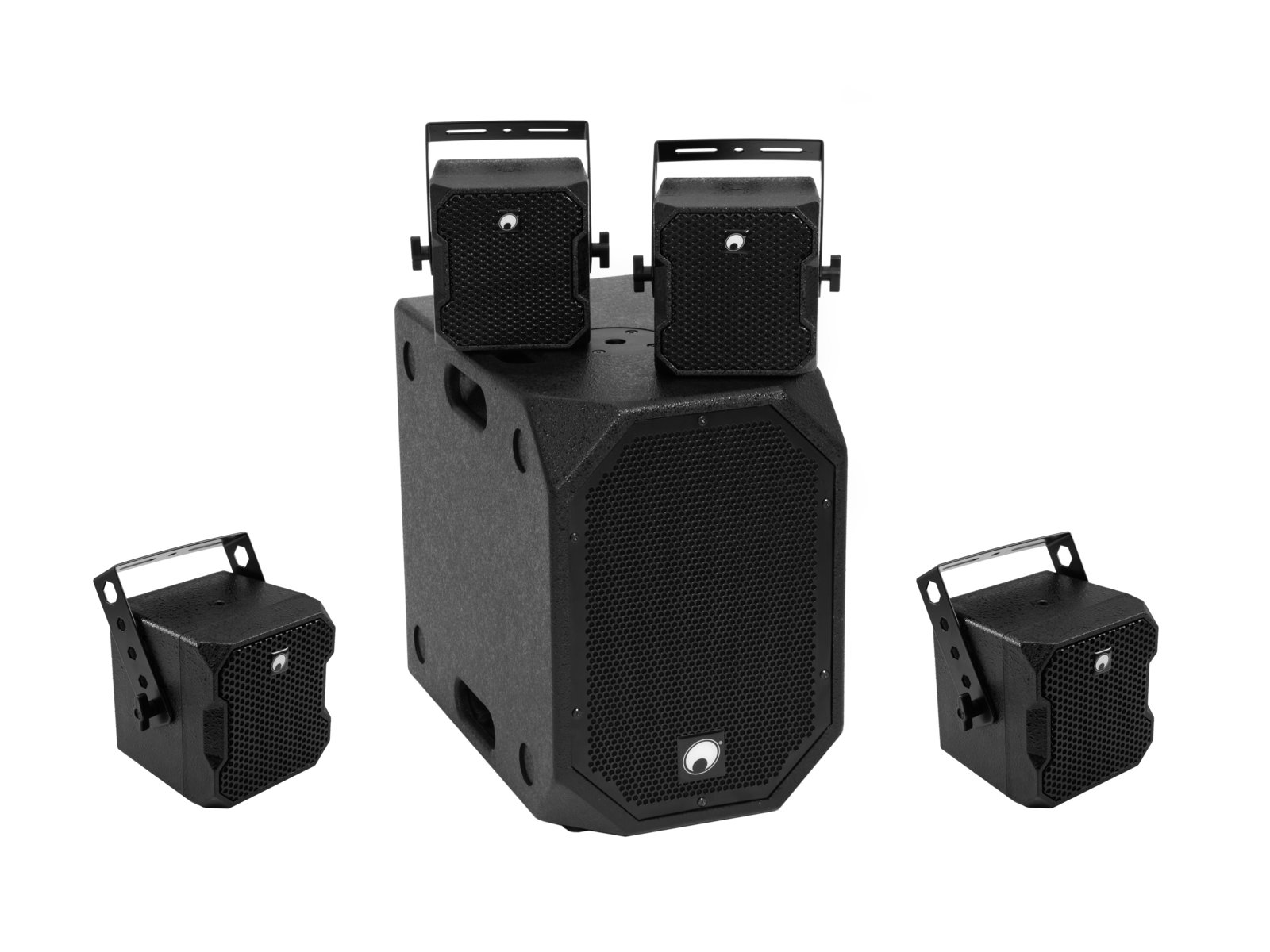

Omnitronic BOB-10A Set 4 Sats - A complete sound system equipped with an active subwoofer with DSP and Bluetooth technology and 2 pairs of 4” speakers with an impedance of 16 ohms, ideal for mobile live applications, DJ, installations in bars, shops, conference rooms and home cinema.
Subwoofer OMNITRONIC BOB-10A:
- Bass reflex type with a size of 10”, integrated DSP and power of 900 W RMS
- Fully expandable with satellites from the BOB-4 series for 2.1, 4.1 and 8.1 audio configurations
- Class D amplifier with controllable DSP (300 W + 2 x 300 W)
- Audio streaming via Bluetooth
- 4 EQ presets with indicators
- Signal limiter and crossover
- Inputs with XLR/6.3 mm jack and RCA connectors
- Parallel XLR outputs for connecting other BOB systems or active systems
- Separate volume control for subwoofer and L/R satellites
- Stereo/Mono selector
- Phase Reverse switch
- Error, limit, signal and power indicators
- Built-in protection circuits: soft start, short circuit, limiter, overcurrent, overheating
- Two metal M20 flanges for mounting satellite speakers
- MDF housing with a glossy finish, scratch-resistant and steel grille
- Built-in handles and lightweight for easy transport
- Speaker cables included
- Digital signal processor
- Controllable via Bluetooth
- Power supply: 230 V AC, 50 Hz
- Power consumption: 1060 W
- Power: 1 x 300 W RMS LF; 2 x 300 W RMS HF
- Frequency response: 45 - 250 Hz
- Sensitivity: 100 dB
- Max SPL: 125 dB
- 2” low coil
- Dimensions:
- Width: 30 cm
- Depth: 47 cm
- Height: 43 cm
- Weight: 17 kg
4 x Omnitronic Satellites BOB-4 with an impedance of 16 ohms:
- 16-ohm satellites with 4" full-range speakers
- Compatible with BOB-10A subwoofers in 2.1, 4.1 and 8.1 configurations
- U-shaped mounts for wall, ceiling or stand installation included
- To mount the satellites on a stand, an optional adapter must be purchased
- Power: 75 W RMS / 150 W
- Connectors: 1 x speakon and threaded terminals
- ABS plastic housing with M8 and M10 threaded inserts
- Glossy surface, scratch-resistant and steel grille
- Frequency response: 150 - 16000 Hz
- Sensitivity: 90 dB (1W/1m)
- Max SPL: 109 dB
- Impedance: 16 Ohm
- 1” coil
- Dimensions:
- Width: 15 cm
- Depth: 16 cm
- Height: 15.8 cm
- Weight: 4 kg
