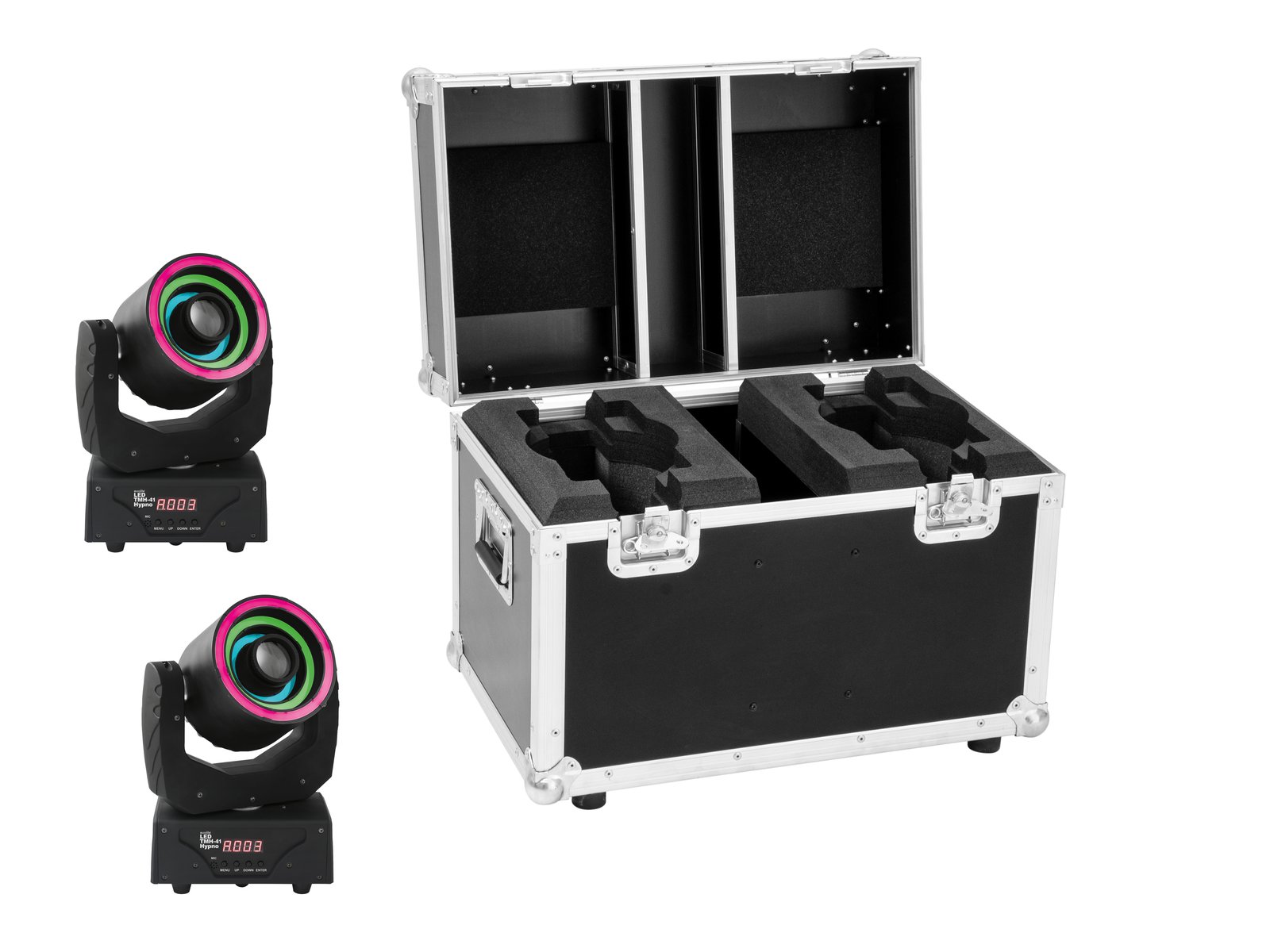

2x narrow beam spots with 3 hypnotic rings and 30 W LED incl. PRO flight case
- Positioning in PAN and TILT
EUROLITE LED TMH-41 Hypno moving head spot
Narrow beam spot with 3 hypnotic rings, 30 W LED, gobo and colour wheel
- Compact and lightweight
- 76 powerful SMD 5050 3in1 TCL RGB LEDs (homogeneous colour mixing)
separate control segments - 1 powerful 30 W COB (chip-on-board) LED colour wheel.
- Positioning at 540° PAN and 210° TILT
- Switchable PAN angle between 540° and 630°
- Automatic position correction (feedback)
- Precise positioning (16-bit resolution)
- Gobo wheel with static gobos; Manual focus
- Gobo effect; beam effect
- Gobo wheel with static gobos, 9 gobos and open
shake effect - Integrated show programs
- Can be operated in 12; Mode 23 CH
- The device is cooled by a cooling fan
- Standalone control; DMX; Sound to light via microphone
- Flicker-free
- With a beam angle of 4.7°
- LED display with 4 digits and 7 segments
- Electronic dimmer; smooth colour mixing
- Colour wheel with 9 dichroic filters plus open
- Preprogrammed in Light´J; LED PC-Control 512; Light captain
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 1 x omega bracket, 1 x XLR cable, 2 x screws, 2 x washers
ROADINGER Flightcase for 2x LED TMH-41
PRO flight case for 2 x LED TMH-41
- For optimal security
- With accessory compartment
- With 2 compartments for devices
- High-quality workmanship with 7 mm birch multiplex, dark brown, laminated
- Interior with foam lining
- 20mm aluminium profile frames with rounded edges
- 2 chrome-plated case handles with hinges
- 3 chrome locks for overturning
- 2 high-quality butterfly locks
- Rubber feet
- Brand hardware
- Made in Europe
| Weight: | 19.00 kg |
| EUROLITE LED TMH-41 Hypno moving head spot |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP rating: | IP20 |
| Power connection: | Mains input via IEC (M) connector, cable mounting version with safety plug (supplied) |
| Lamp type: | LED lamp |
| LED: | 76 x SMD 5050 3in1 TCL RGB (homogeneous colour mixing)
1 x 30 W COB (chip-on-board) colour wheel |
| Max. TILT movement: | 210° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 540°, 630° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Flash rate: | 0 - 25 Hz |
| Equipment: | Gobo wheel with static gobos; Manual focus |
| Colour generation: | Colour wheel with 9 dichroic filters plus open |
| Gobo: | Gobo wheel with static gobos, 9 gobos and open
Shake effect |
| DMX channels: | 12; 23 |
| DMX input: | 1 x XLR (M) mounting version with 3 pins |
| DMX output: | 1 x XLR (F) mounting version with 3 pins |
| Cooling: | Cooling fan |
| Control: | Standalone; DMX; Sound to light via microphone |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light captain |
| Beam angle: | 4.7° |
| Beam angle (1/2 peak): | 4.7° |
| Housing colour: | Black |
| Display type: | LED display with 4 digits and 7 segments |
| Dimensions: | Width: 24.5 cm
Depth: 16.5 cm
Height: 35 cm |
| Weight: | 5.68 kg |
| Noise rating: | Class 3 (clearly audible sounds) |
| Legal specifications |
| Special product: | Not designed for household room lighting |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase for 2x LED TMH-41 |
| Maximum capacity: | 50 kg |
| Aluminium profile frames: | 20 mm |
| Case handles: | 2 pcs/piece |
| Stop hinge: | 3 pcs/piece |
| Lock: | Butterfly lock: 2 pcs/piece |
| Transport aid: | Rubber feet |
| Brand usage: | Brand hardware |
| Material: | Birch multiplex, 7 mm |
| Colour: | Dark brown, laminated |
| Device compartment: | 14 cm x 30 cm x 39 cm |
| Interior dimensions: | 48 cm x 30 cm x 39 cm |
| Accessory compartment: | 9 cm x 29 cm x 45 cm |
| Dimensions: | Width: 52 cm
Depth: 34 cm
Height: 48 cm |
| Weight: | 10.00 kg |
