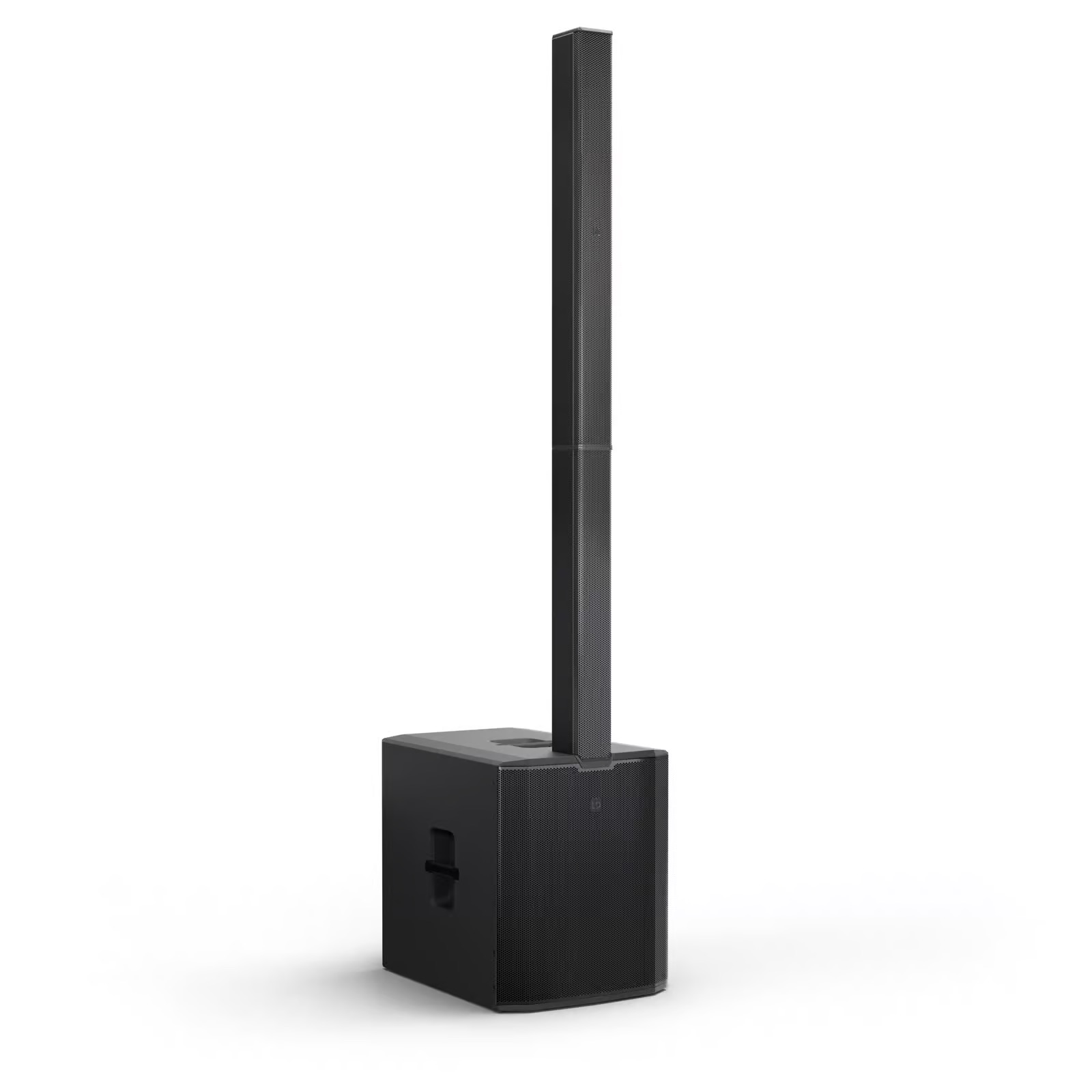

LD Systems MAUI 66 G3 - 4-Way Cardioid Column PA System

LD Systems MAUI 66 G3 - active column PA system, featuring a 4-way architecture and an 18" subwoofer. It delivers a power of 1,900 W RMS, a maximum sound pressure level of 135 dB, and Bluetooth 5.4 connectivity. The system utilises a cardioid column to reduce sound emitted to the rear.

• Active column PA system
• Configuration: 4-way system, passive cardioid column
• RMS Power: 1,900 W
• Peak Power: 3,800 W
• Maximum SPL: 135 dB
• Frequency response (-6 dB): 33 Hz – 20 kHz
• Frequency response (-10 dB): 28 Hz – 20 kHz
• Amplification: Class D
• DSP Processing: DynX® Gen. 2, with limiters for peaks, RMS and temperature
• Dispersion: 120° horizontal × 25° vertical
• Cardioid attenuation to the rear: Up to 18 dB (100 Hz – 1 kHz)
• Subwoofer: 1 × 18", neodymium magnet, bass-reflex enclosure
• Midrange speakers: 16 × 3.5", with neodymium magnets
• High-frequency speakers: 4 × 1", compression drivers with waveguide
• Crossover frequencies: 200 Hz / 700 Hz / 1,800 Hz
• Audio inputs: 2 × XLR/TRS combo
• Audio outputs: 3 × XLR, according to specifications
• Wireless connectivity: Bluetooth 5.4
• Bluetooth codecs: AAC, aptX™, SBC
• AD/DA converter: 24/32 bits, 48 kHz
• Signal-to-noise ratio: Minimum 106 dB
• Protections: Limiter and overheating protection
• Extension: Compatible with a second MAUI 66 G3 subwoofer
• Power supply: 100–240 V AC, 50–60 Hz
• Nominal consumption: 900 W
• Colour: White

Dimensions / Construction:

• Overall dimensions (L × W × H): 518 × 2,446 × 689 mm
• Total weight: 57.13 kg
• Subwoofer dimensions (L × W × H): 518 × 634 × 689 mm
• Subwoofer weight: 43.68 kg
• Column dimensions (L × W × H): 103 × 1,813 × 136 mm
• Column weight: 13.43 kg
• Subwoofer material: Multi-layer birch plywood, 18 mm thick
• Subwoofer finish: Polyurea coating
• Column material: Painted aluminium in electrostatic field
• Front grille: Steel
• Handles: 4 on the subwoofer and 2 on the column
• Included accessories: Power cable
• Colour: Black
