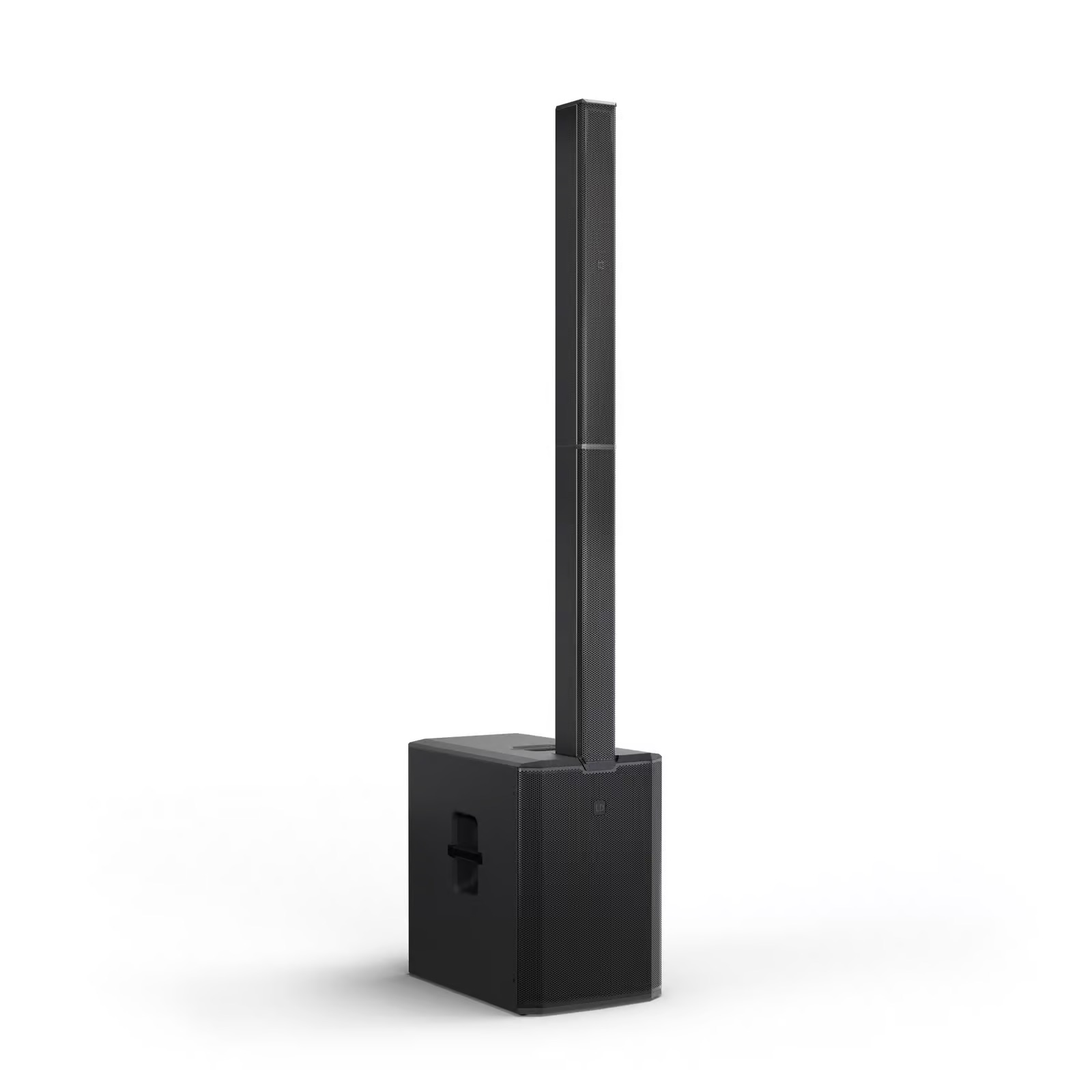

LD Systems MAUI 44 G3 MIX - 4-Way Cardioid Column PA System with Digital Mixer

LD Systems MAUI 44 G3 MIX - active column PA system, with a 4-way configuration, 15" subwoofer and integrated digital mixer with 8 channels. It offers a power output of 1,800 W RMS, Bluetooth connectivity and control via the MAUI MIX app. The system allows for the connection of two units via SysLink® for stereo operation and unified control.

• Active column PA system
• Configuration: 4-way system, passive cardioid column
• Digital mixer: 8 channels, integrated
• RMS power: 1,800 W
• Peak power: 3,600 W
• Maximum SPL level: 133 dB
• Frequency response (-6 dB): 37 Hz – 20 kHz
• Frequency response (-10 dB): 34 Hz – 20 kHz
• Amplification: Class D
• DSP processing: DynX® Gen. 2, with limiters for peaks, RMS and temperature
• Dispersion: 120° horizontal × 25° vertical
• Cardioid attenuation to the rear: Up to 18 dB (100 Hz – 1 kHz)
• Speakers
  • Subwoofer: 1 × 15", neodymium magnet, bass-reflex enclosure
  • Midrange speakers: 14 × 3.5", with neodymium magnets
  • High-frequency speakers: 4 × 1", compression drivers with waveguide
• Crossover frequencies: 200 Hz / 700 Hz / 1,800 Hz
• Inputs: 8 × XLR/TRS combo
• Microphone/line inputs: 6, with microphone preamps
• Phantom power: 48 V
• Outputs: 5 × XLR, according to specifications
• Audio processing: 5-band parametric EQ, reverb, digital effects, dynamics and delay
• Wireless connectivity: Bluetooth 4.2
• Bluetooth codec: SBC
• Remote control: MAUI MIX app for iOS and Android
• Display: Integrated colour screen
• SysLink®: Yes, for connecting two systems in stereo and centralized control of the 16 channels
• AD/DA conversion: 24/32 bits, 48 kHz
• Signal-to-noise ratio: Minimum 104 dB
• Power supply: 100–240 V AC, 50–60 Hz
• Nominal consumption: 900 W
• Protections: Limiter and overheating protection
• Subwoofer material: 18 mm thick birch plywood
• Subwoofer finish: Polyurea coating
• Column material: Electrostatic painted aluminium
• Front grille: Steel
• Handles: 4 on the subwoofer and 2 on the column

Physical parameters:

• Overall dimensions (L × H × D): 434 × 2,259 × 638 mm
• Total weight: 48.3 kg
• Subwoofer dimensions (L × H × D): 434 × 634 × 638 mm
• Subwoofer weight: 36.24 kg
• Column dimensions (L × H × D): 103 × 1,626 × 136 mm
• Column weight: 12 kg
• Included accessories: Power cable
• Colour: Black
