Klotz VD083SY

Coaxial Cable

6mm diameter coaxial cable with solid copper conductor.
double shielding for excellent electrical performance.
pE foam insulation and PVC jacket for durability.
impedance of 75 Ω ±1% ensures compatibility.
low attenuation across a wide frequency range.

2²⁹ €

In stock and deliverable.

Central warehouse: 10

Add to cart

also deliverable via

12 points of loyalty

Shipping 8.00 €

Warranty 12 months

Returns 14 days

request details

Klotz VD083SY Add to cart: 2²⁹ €

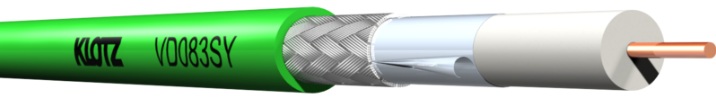

Coaxial cable with a diameter of 6mm, conductor of 1 x 0.80mm² made of solid copper, double shielding and excellent electrical performance, the jacket is made of PVC.

Insulation: PE foam sheath, gas-injected/3.7mm Ø
Shielding: double AL/PET/AL foil + tinned copper braid (95% coverage)
Shielding Attenuation: >90 dB
Impedance: 75 Ω ±1%

Attenuation (dB/100m):

1 MHz - 0.90
5 MHz - 2.10
10 MHz - 3.00
100 MHz - 8.40
200 MHz -11.60
500 MHz - 18.70
800 MHz - 24.00
1000 MHz - 27.10
1500 MHz - 33.80

Product code: VD083SY.100

Unit of sale: metru

Specifications:

Cable type:	coaxial - video
Shielding:	yes
Number of conductors:	1
