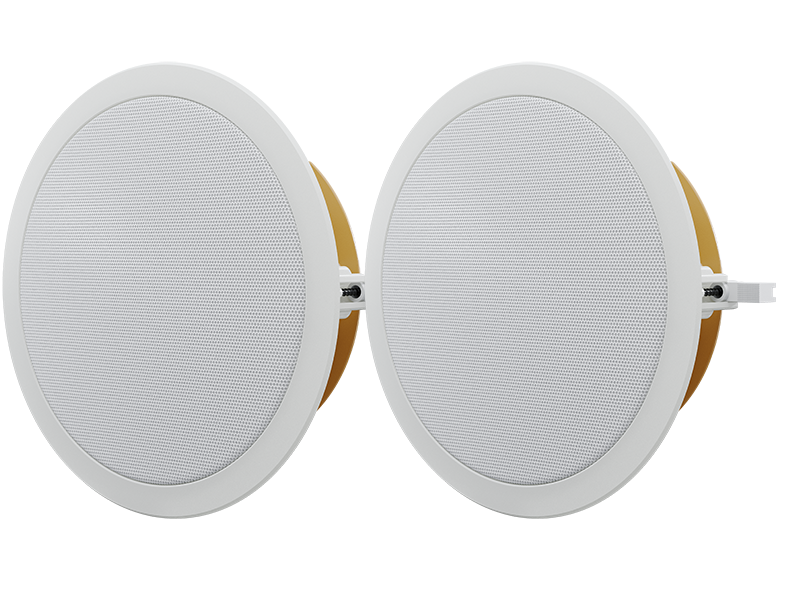

Optimal Audio UP6O White Pair – A pair of discreet 6” ceiling speakers that provide consistent coverage and clear sound for a wide range of commercial environments, such as hotels, shops, bars, and restaurants. Without a back enclosure, for ceilings with minimal depth, it includes an integrated mounting system for easy installation. The perforated steel grille is finished in neutral white. With the accessory Grille 2, it can be enhanced with a bezel-free design and is available in white and black.
The 6” (162mm) speaker is equipped with a low-frequency driver and a 0.7” (20mm) metal tweeter, making it ideal for both speech and music. The 110° conical coverage pattern ensures consistent sound and high performance. Up 6O can operate on 70V or 100V systems or at low impedance, with selection made via a rotary switch. With SmartAmp or powered Zones, it offers amplification, optimal performance, and speaker protection. The system is easy to configure and control via Zones and WebApp, with additional options through ZonePad.
Features
6” coaxial driver
Discreet size, without back enclosure
Non-intrusive design
Operation on 16 ohm or 70/100V line
Wide conical coverage pattern
Integrated mounting hardware
Accessory with bezel-free grille available
Specifications:
Type: ceiling speaker, passive, full range, 2-way
Frequency response (with preset): 65Hz - 18kHz ±3dB, -10dB at 50Hz
Drivers:
Low LF: 6.5” (162mm)
High HF: 1” (25mm) exit / 0.7” (20mm) metal dome
Nominal power (AES): 60W, 120W (peak)
Nominal impedance: 16Ω
Sensitivity (1W/1m): 90dB
Max SPL: 108dB (continuous), 111dB (peak)
Crossover: 2.7kHz passive
Recommended high-pass filter: 24dB/octave at 60Hz
Transformer taps @ 70V: 60, 30, 15, 7.5W
Transformer taps @ 100V: 60, 30, 15W
Dispersion (-6dB): 110° conical
Enclosure: N/A

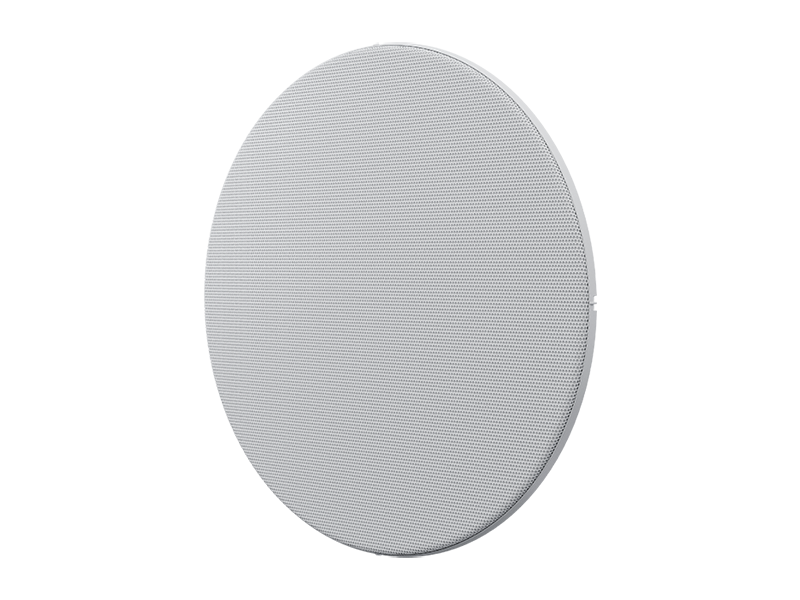

Protective grille: perforated steel
Fire rating: UL94-V0
Connectors: Euroblock with 4 pins & link out
Mounting: C-ring support plate
Dimensions (including grille): (Ø) 251mm x (D) 103.5mm
