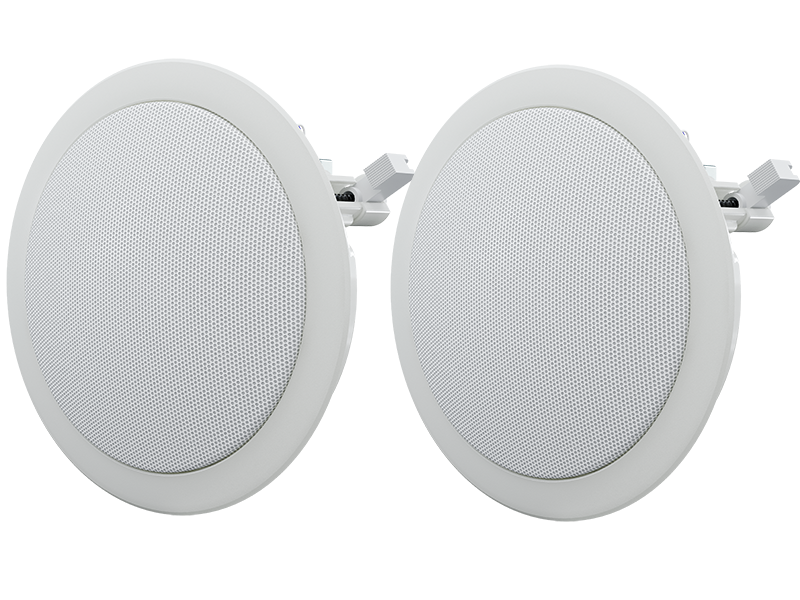

Optimal Audio UP4O White Pair - A pair of discreet 4” ceiling speakers that provide consistent coverage and clear sound in various commercial environments, such as hotels, shops, bars, and restaurants. Without a back enclosure for ceilings with minimal depth, it includes an integrated mounting system for simple and clean installation. The perforated steel grille is finished in neutral white. With the Grille 1 accessory, it can be enhanced with a bezel-less look and is available in both white and black.
The 4” (105mm) speaker is ideal for music and speech, with a coverage angle of 130°. Each UP4O is designed to operate on 70 or 100-volt line systems via a transformer. With SmartAmp or powered Zones, it offers amplification, optimal performance, and speaker protection. Integrated with Zones and WebApp, the settings are simple and intuitive, with additional control options via ZonePad.
Features
4” full-range driver
Discreet size, without back enclosure
Non-intrusive design
Operates on 70/100V line
Power tapping range
Wide conical coverage pattern
Integrated mounting hardware
Bezel-less grille accessory available
Specifications:
Type: ceiling speaker, passive, full range
Frequency response (with preset): 87Hz – 15kHz ± 3dB, -10dB at 60Hz
Drivers: 4” (105mm), paper coated
Nominal power (AES): 10W
Nominal impedance: dependent on tapping
Sensitivity (1W/1m): 93dB
Max SPL: 100dB (continuous)
Recommended high-pass filter: 24dB/Octave at 80Hz
Tapping transformer @ 70V: 6, 3, 1.5, 0.75W
Tapping transformer @ 100V: 6, 3, 1.5W
Dispersion (-6dB): 130° conical
Baffle: ABS

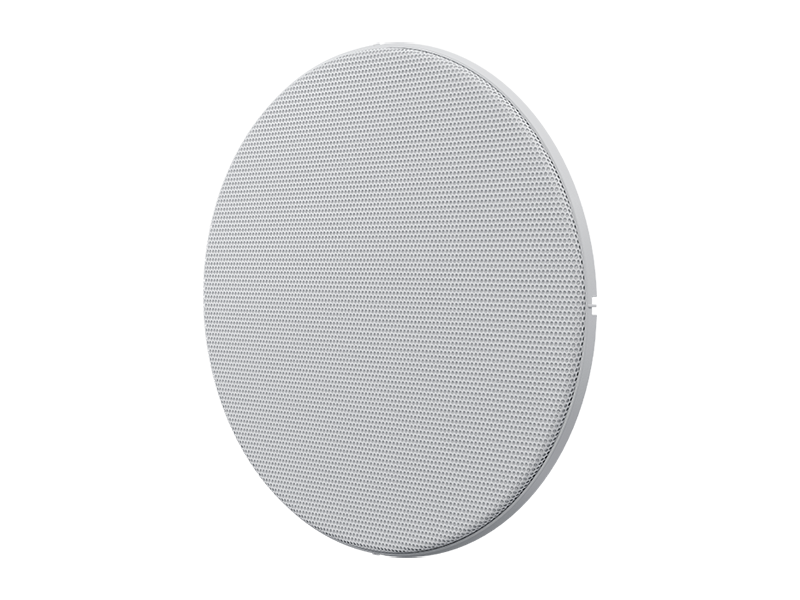

Protective grille: perforated steel with a fabric back
Connectors: uninsulated wires
Mounting: C-ring support plate
Dimensions (including grille): (Ø) 202mm x (D) 117mm
