LDA audioTech SC-85T

Ceiling Speaker

4” woofer and 3/4” tweeter for clear audio reproduction.
bass-reflex enclosure for enhanced low-frequency response.
wide frequency response from 80 Hz to 20 kHz.
maximum sound pressure level of 101 dB SPL.
easy installation with included clamps and Euroblock connector.

59⁰⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

304 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

LDA audioTech SC-85T Add to cart: 59⁰⁶ €

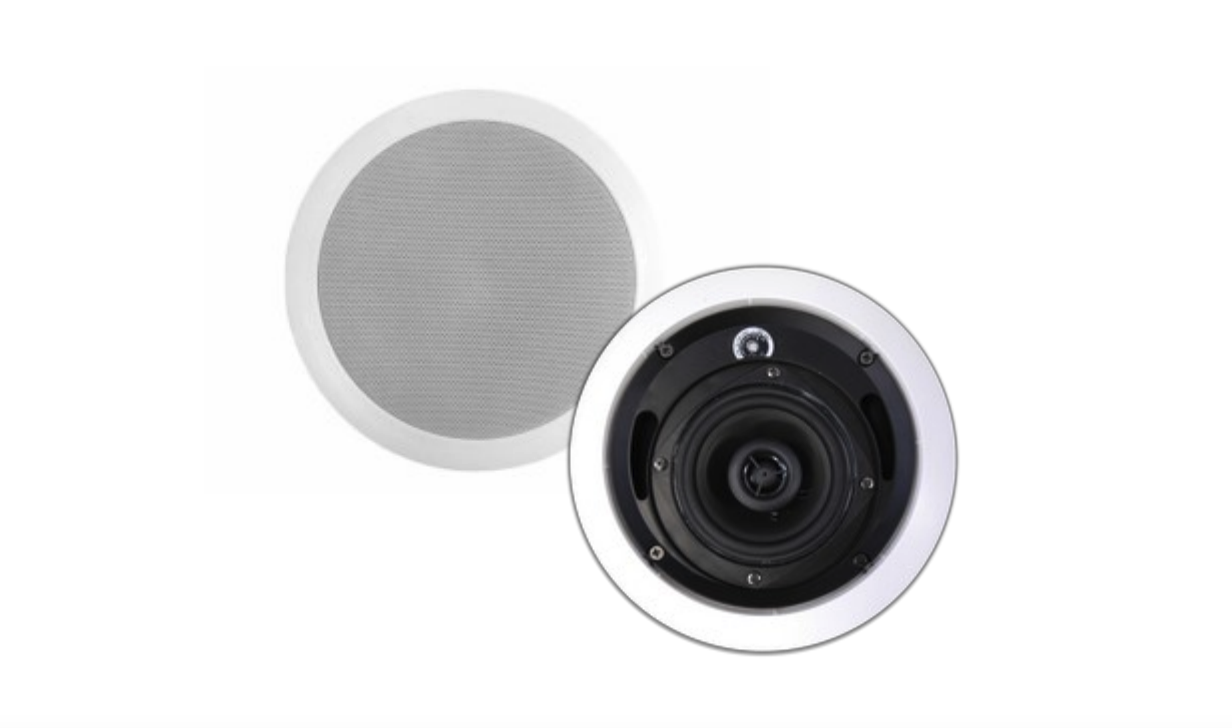

LDA audioTech SC-85T - Speaker for ceiling installation, 2-way architecture with a 4” woofer + 3/4” tweeter, bass-reflex enclosure and an RMS power of 20W at 100V.

4” woofer
3/4” tweeter
bass-reflex enclosure
sensitivity: 87 dB (1 W, 1 m).
frequency response 80 Hz - 20 kHz
maximum sound pressure level: 101 dB SPL (1 W, 1 m)
speaker impedance 8 Ω
conical dispersion: 180° at 1 kHz.
power via transformer (70/100 V) 8 Ω
- 20/10/5/2.5 W @ 100 V
- 20/10/5/2.5/1.25 W @ 70 V
colours: White, RAL 9016
connector: Euroblock type, 4 poles (allows direct parallel connection)
included clamps for ceiling or plaster
dimensions (diameter x depth) 202 x 180 mm
mounting diameter: 170 mm
weight 1.7 kg

Product code: LDASC85TS02

Unit of sale: piece

Specifications:

EN54 / EN60849 certificate:	yes
IP protection code:	fără
Power at 100V:	20 W
Colors (RAL):	White, RAL 9016
Weight:	1.7 kg
Dimensions:	202 x 180 mm
SPL:	87 dB
Frequency response:	80 Hz - 20 kHz
