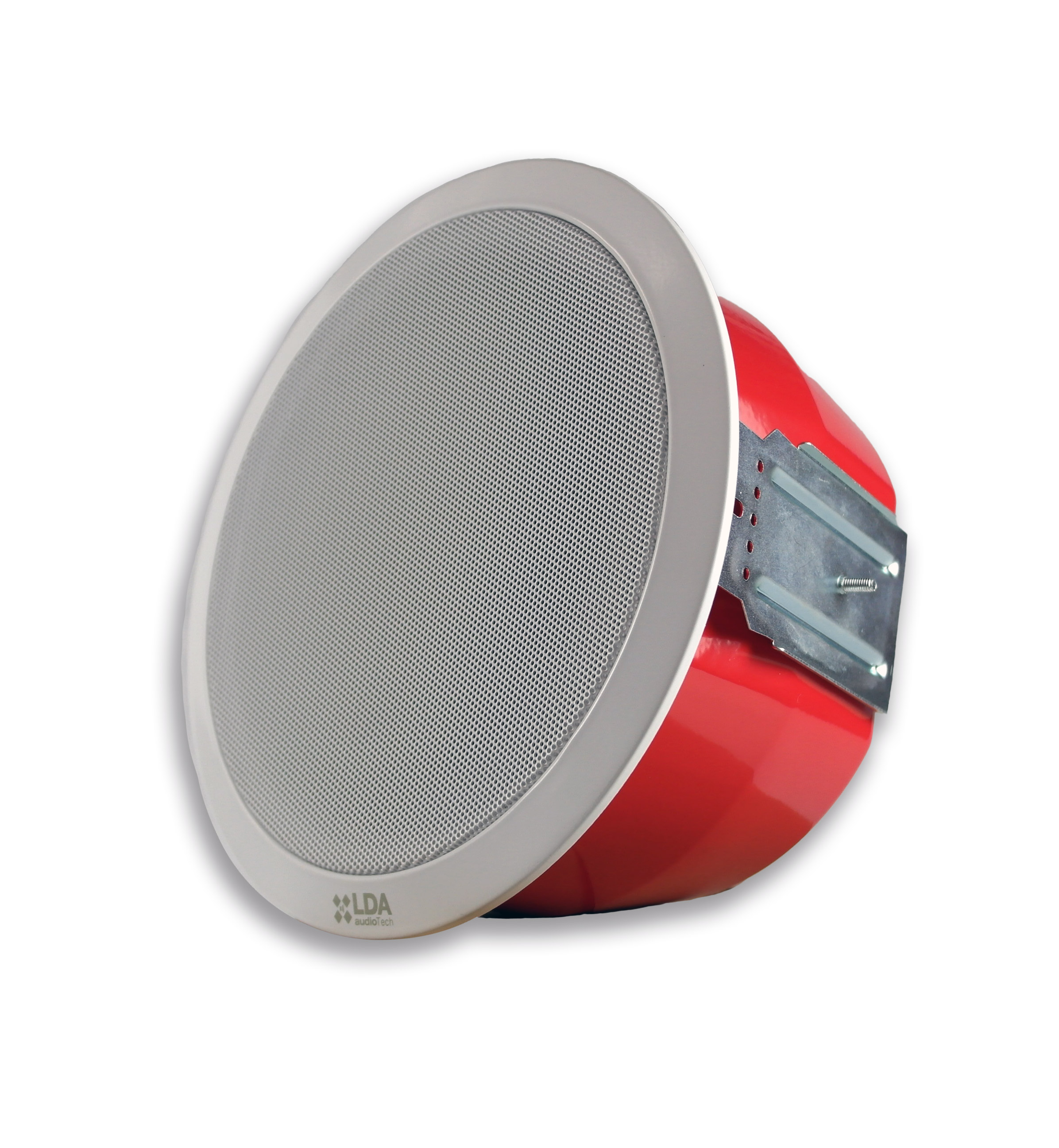

LDA audioTech CH-62TN

Ceiling Speaker

6.5" coaxial design with fireproof cover and metal grille.
wide frequency response from 100 Hz to 20 kHz.
maximum SPL of 106 dB at 1 metre.
suitable for various power settings: 24/12/6/3W at 100V or 24W at 4 Ohms.
certified to EN54-24 standards for safety.

70⁵² €

In stock and deliverable.

Central warehouse: 10+ In stores: 10+

Add to cart

also deliverable via

363 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details better price?

LDA audioTech CH-62TN Add to cart: 70⁵² €

LDA Audiotech CH-62TN, ceiling speaker, 6.5" coaxial with fireproof cover and metal grille. Its wide frequency range, low distortion, and high sound pressure level ensure intelligible voice reproduction and excellent sound quality.

coaxial, 2-way architecture
woofer diameter: 6.5"
maximum SPL at 1 metre: 106 dB
frequency response: 100 Hz -20 kHz
colour: white RAL 9016, RAL 3000 fireproof cover
connector: ceramic terminal, maximum allowed section 2.5 mm
dimensions: 224 x 129 mm
coverage (-6 dB):
- 500 Hz: 180º
- 1000 Hz: 165ºH 170ºV
- 2000 Hz: 130ºH 140ºV
- 4000 Hz: 55º
thermal protection: 115°
mounting hole diameter: 195 mm
operating temperature: -25°C to +55°C

Product code: LDACH62TNS01

Unit of sale: piece

Specifications:

EN54 / EN60849 certificate:	yes
IP protection code:	IP44
Power at 100V:	30 / 15 / 7.5 / 3.75 W
Colors (RAL):	RAL 9016
Weight:	1.75 kg
Dimensions:	224 x 129
SPL:	106 dB
Frequency response:	100 Hz - 20 kHz
