Fonestar SKY-5T

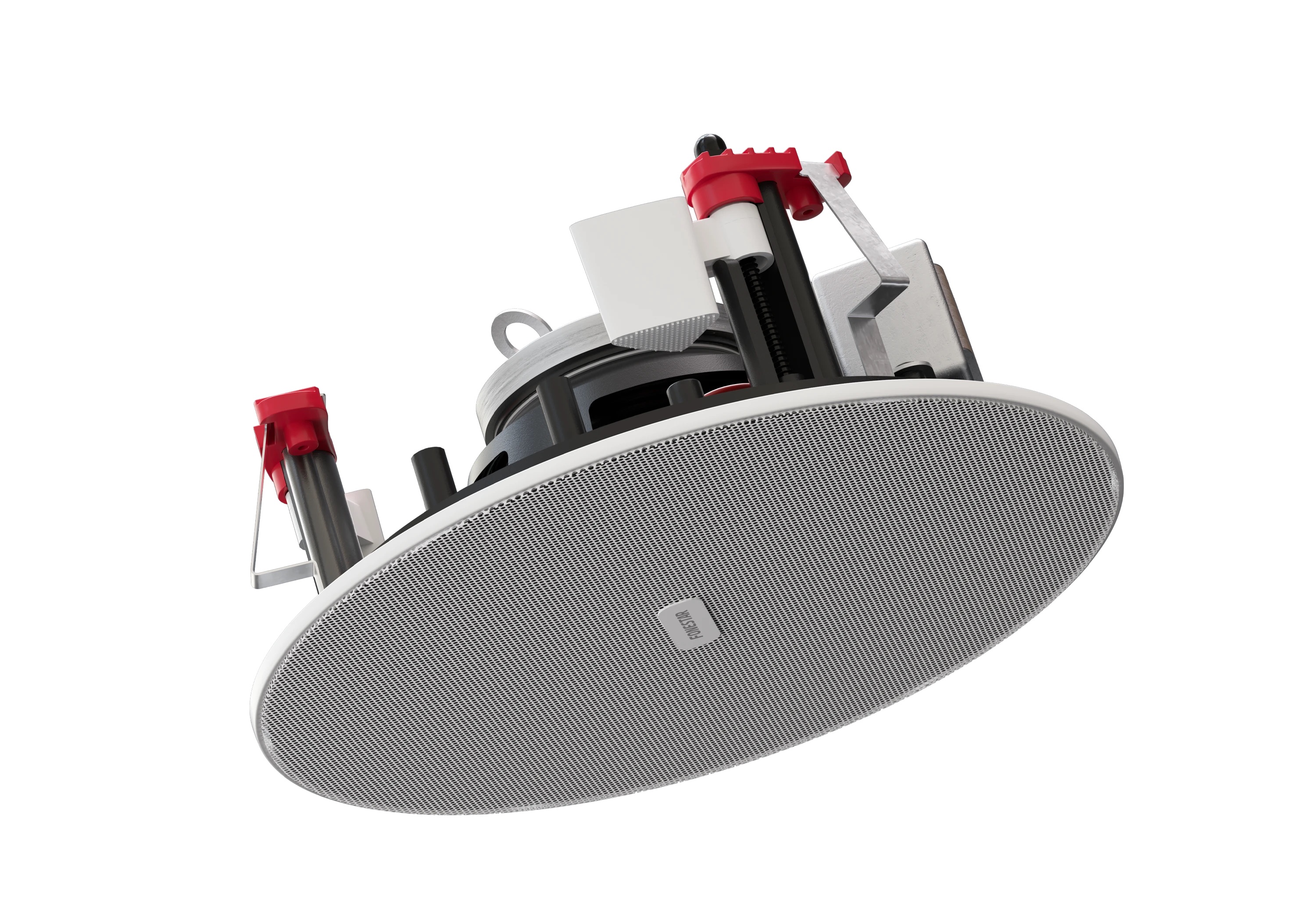

Fonestar SKY-5T – Ceiling speaker with transformer for 100 V line, ideal for audio installations in commercial spaces, educational institutions, or other locations requiring high-quality sound. This model features a low-profile design, detachable and lockable grille made of corrosion-resistant aluminium, making it durable and easy to integrate into any type of ceiling.

The coaxial speaker includes a 5-inch polypropylene woofer with a dual diaphragm and a 1-inch pivoting tweeter, ensuring a wide frequency response and excellent sound quality. The Fonestar SKY-5T offers a power of 12 W RMS and multiple impedance options for adaptation to various audio systems, as well as IP44 protection against dust and water, making it suitable for use in diverse environments.

FEATURES:

• Ceiling speaker with transformer for 100 V line

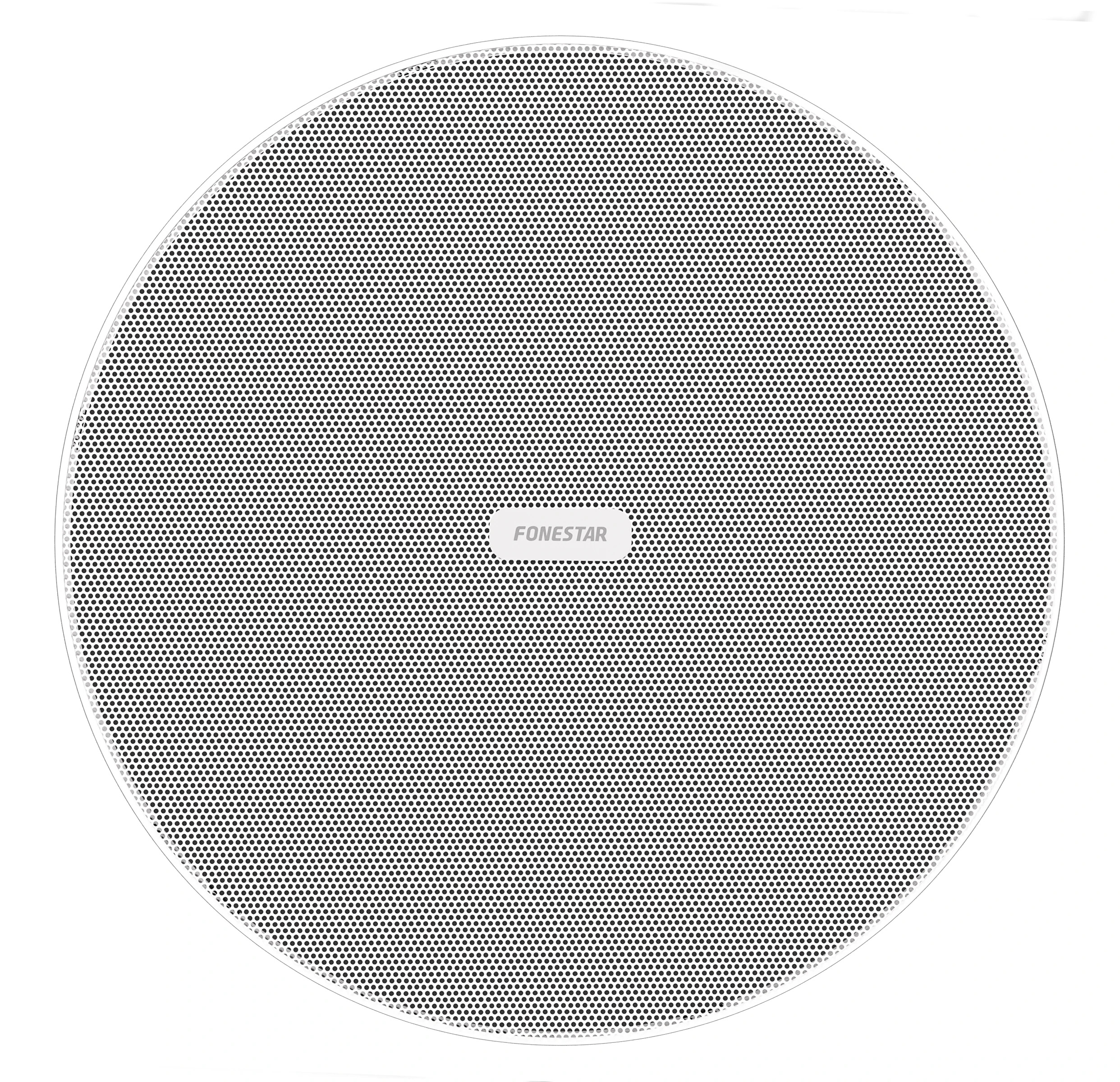

• Grille without rim, low-profile, made of corrosion-resistant aluminium, detachable and lockable by rotation
• Detachable logo and possibility of painting
• Fast terminals with high conductivity
• Anti-fall system for easy installation
• Safety cable hook
• Stable ceiling mounts with worm gear
• Protection against dust and water

POWER:

• 12 W RMS
• 16 W maximum

LOUDSPEAKER:

• Coaxial speaker with dual diaphragm polypropylene 5"
• Pivoting tweeter 1"

FREQUENCY RESPONSE:

• 55-20,000 Hz @ -10 dB
• 70-20,000 Hz @ -3 dB

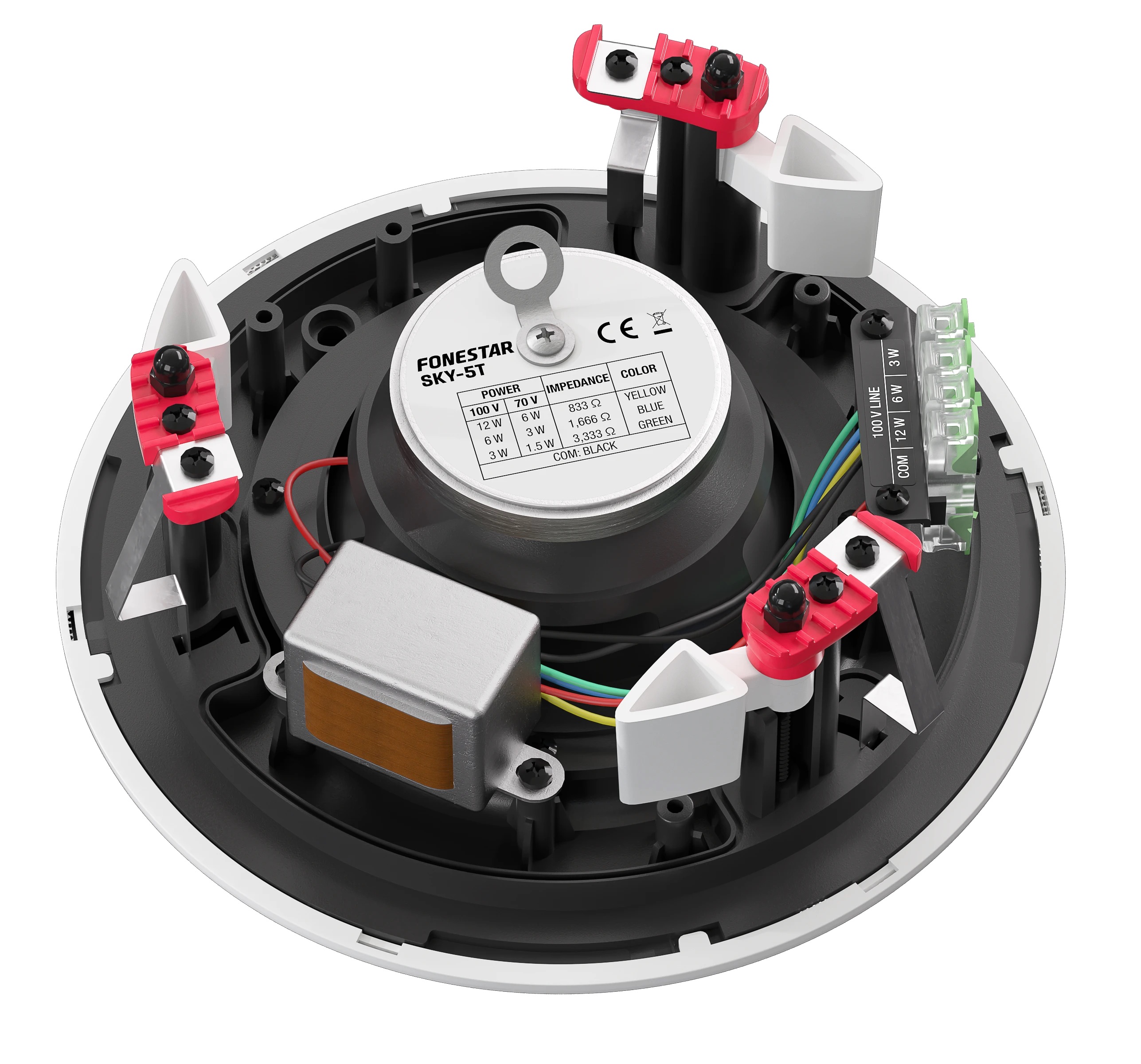

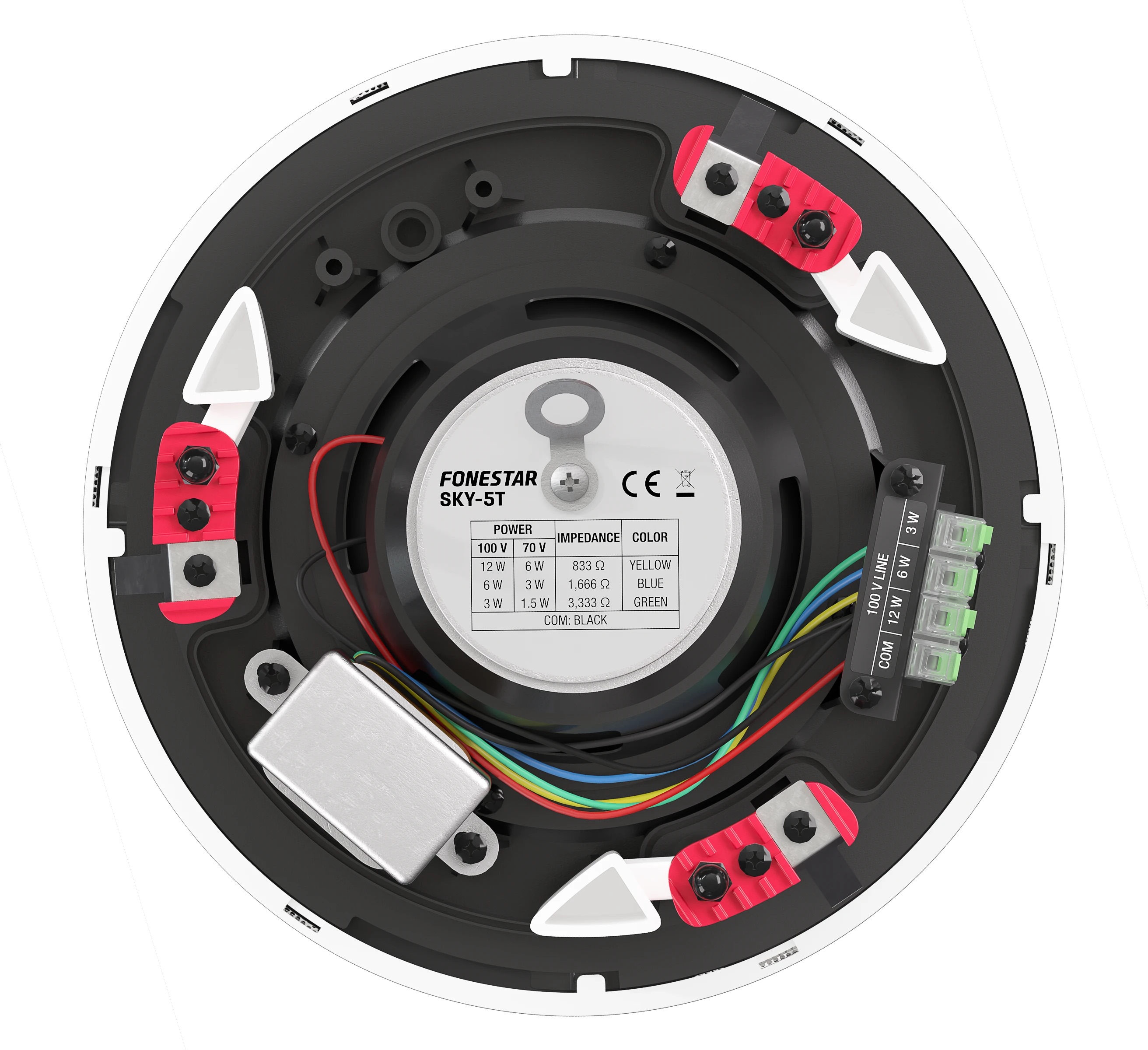

IMPEDANCE:

• 12 W RMS @ 100 V (833 Ω)
• 6 W RMS @ 100 V/70 V (1,666 Ω/816 Ω)
• 3 W RMS @ 100 V/70 V (3,333 Ω/1,633 Ω)
• 1.5 W RMS @ 70 V (3,266 Ω)

SENSITIVITY:

• 85 dB @ 1 W/1 m

ACOUSTIC PRESSURE:

• 97 dB @ maximum continuous power at 1 m
• 98 dB @ maximum peak power at 1 m

COVERAGE ANGLES:

• 90° @ 1 kHz (-6 dB)

PROTECTIONS:

• IP-44 according to IEC 60529 standard
• EN ISO 9227:2006 neutral salt spray test

MATERIAL:

• UV radiation resistant ABS
• Liquid painted aluminium grille

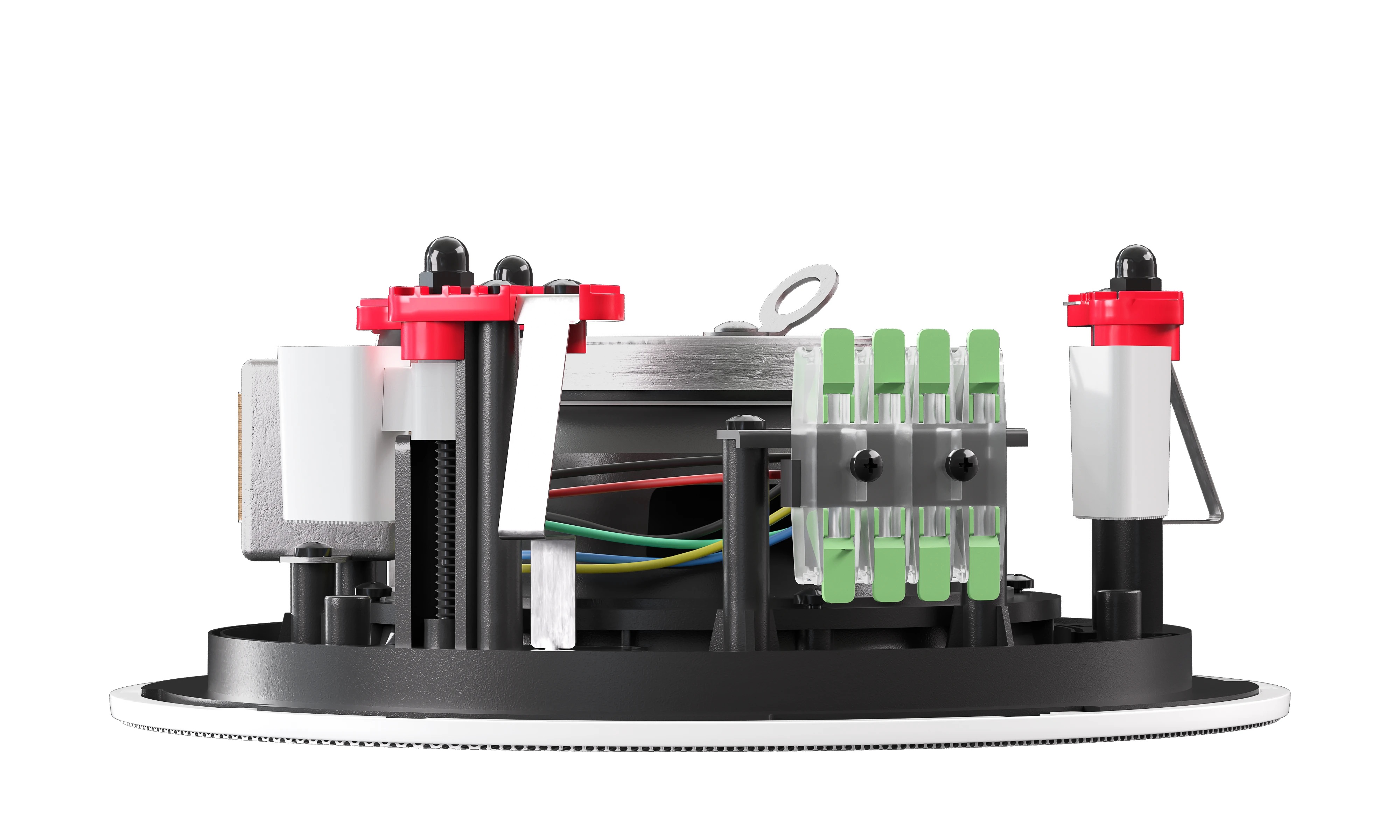

CONNECTIONS:

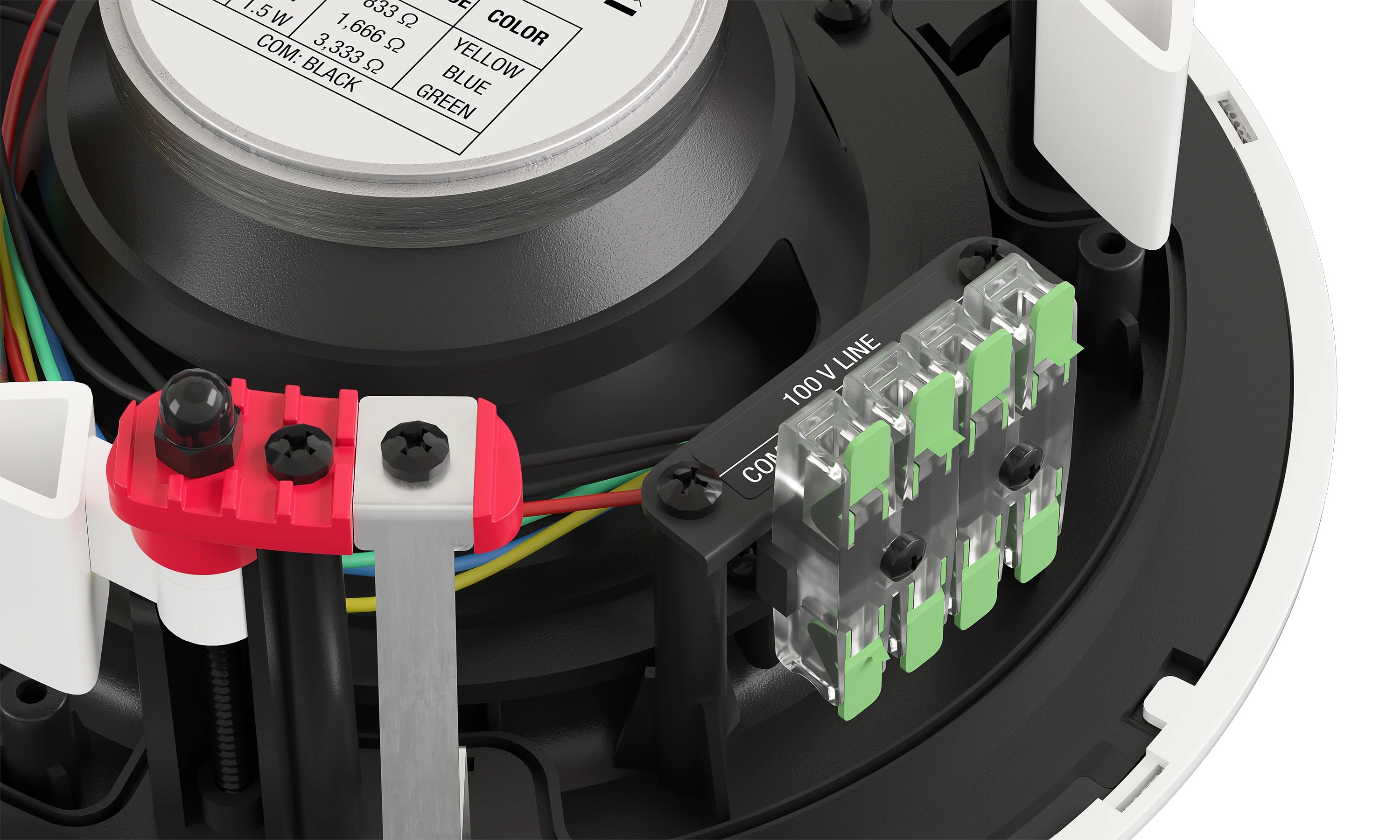

• Fast terminals, highly conductive, for cables of 0.4 – 4 mm²

OPERATING TEMPERATURE:

• -20°C to 70°C (48 hours)

STORAGE TEMPERATURE:

• 10°C to 40°C

MAXIMUM HUMIDITY:

• 95%

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Total speaker: 214 mm diameter x 85 mm height
• Grille thickness: 5 mm
• Embedded height: 80 mm
• Cutout for installation: 180 mm diameter
• Maximum ceiling thickness: 30 mm

WEIGHT:

• 0.8 kg

ACCESSORIES:

• Mounting template
