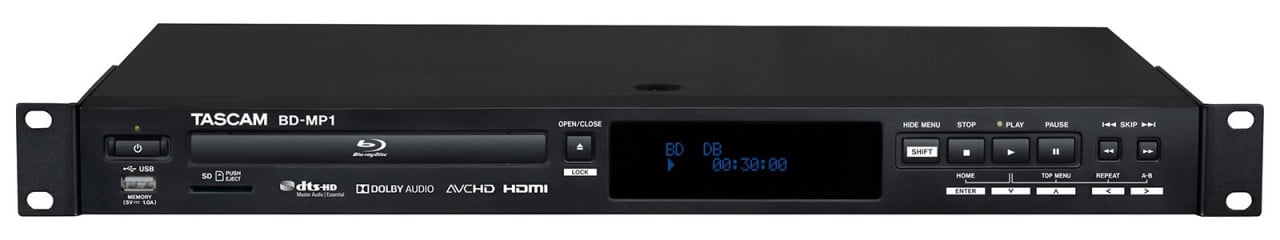

Tascam BD-MP1

TASCAM BD-MP1 is a professional Blu-ray player, capable of playback from DVD/CD or SD Card.

• Disc compatibility: Blu-ray, DVD, CD
• Video formats: ASF, MPG, AVI, MP4, etc.
• Audio formats: WAV, MP3, FLAC, etc.
• HDMI and digital/analog audio outputs
• Connectivity: USB, SD, Ethernet

Technical specifications:

Disc Media

• Blu-ray: BD25, BD50, BD-ROM, BD-R, BD-RE
• DVD: DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW
• CD: CD-DA, CD-R, CD-RW

Disc Type

• Blu-ray: BDMV, BDAV
• DVD: DVD-Video, DVD-VR, AVCHD

Format

• Video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV
• Audio: WAV, MP3, WMA, AAC, FLAC, APE
• Image: JPEG, GIF, PNG

Audio

• BD/DVD/USB/SD
• Sampling rate: 44.1k/48k/64k/88.2k/96k/176.4k/192kHz
• Audio resolution: 16/24 bit

CD

• Sampling rate: 44.1k/48k Hz
• Audio resolution: 16/24bit

MP3/WMA

• Sampling rate: 32k/44.1k/48k Hz
• Audio resolution:
• MP3: 112k - 320k bps
• WMA: 48k - 192k bps

HDMI Output

• Connection: HDMI 19pin Type A
• Resolution: 480i/576i, 480p/576p, 720p, 1080i, 1080p
• Aspect ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
• Video Format: NTSC, PAL, Multi
• HDMI signal system: RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2)

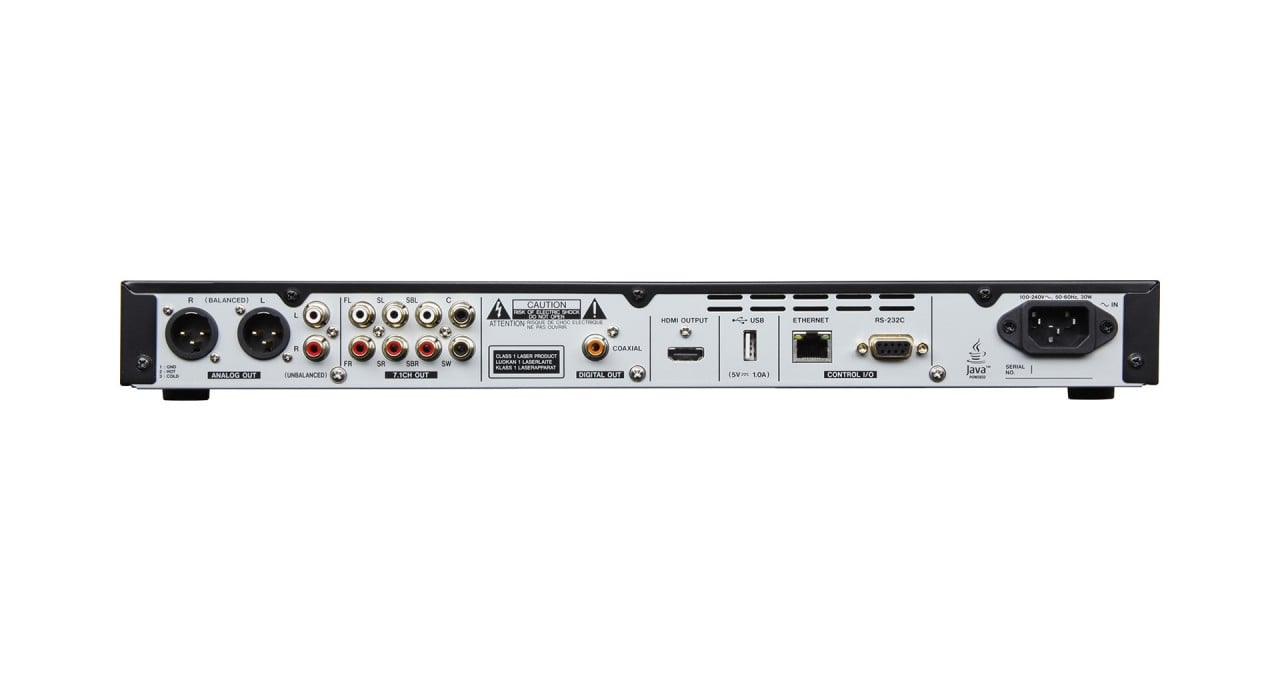

Digital Audio Outputs:
COAXIAL

• Connection: RCA pin jack
• Format: IEC60958-3(S/P DIF)
• Output impedance: 75Ohm

Analog Audio Outputs:

Balanced:

• Connection: XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) ×. 2 (Stereo)
• Output impedance: 200Ohm
• Normal output level: +4dBu (1.23 Vrms)
• Maximum output level: +20dBu (7.75Vrms)

Unbalanced:

• Connection: RCA pin jack ×. 1 pair
• Output impedance: 200Ohm
• Normal output level: -10dBV (0.316 Vrms)
• Maximum output level: +6dBV (2.0Vrms)

7.1 Audio Output

• Connection: RCA pin jack ×. 8 (FL/FR/SL/SR/SBL/SBR/C/SW)
• Connection colours:
• FL, SL, SBL : White
• FR, SR, SBR : Red
• C, SW : Black
• Output impedance: 200Ohm
• Normal output level: -10dBV (0.316 Vrms)
• Maximum output level: +6dBV (2.0Vrms)

RS-232C

• Connection: D-sub 9pin × 1
• Format: RS-232C

ETHERNET

• Connection: RJ-45
• Protocol: 10BASE-T/100BASE-TX

USB

• Connection:
• Front: USB A-type ×. 1
• Rear: USB A-type ×. 1
• Protocol: USB2.0
• Power supply voltage: DC 5V, 1A
• Storage: 2TB (Max)
• File format: FAT16/FAT32/NTFS

SD

• Media: SD (512MB to 2GB), SDHC (4GB to 32GB)
• Storage class: Max 32GB
• File format: FAT16/FAT32/NTFS

• Power supply: AC 100V - 240V, 50/60Hz
• Power consumption: 30W
• Dimensions: 482.6 ×. 44 ×. 280.7 mm
• Weight: 2.64kg
• Operating temperature: 5 - 35°C

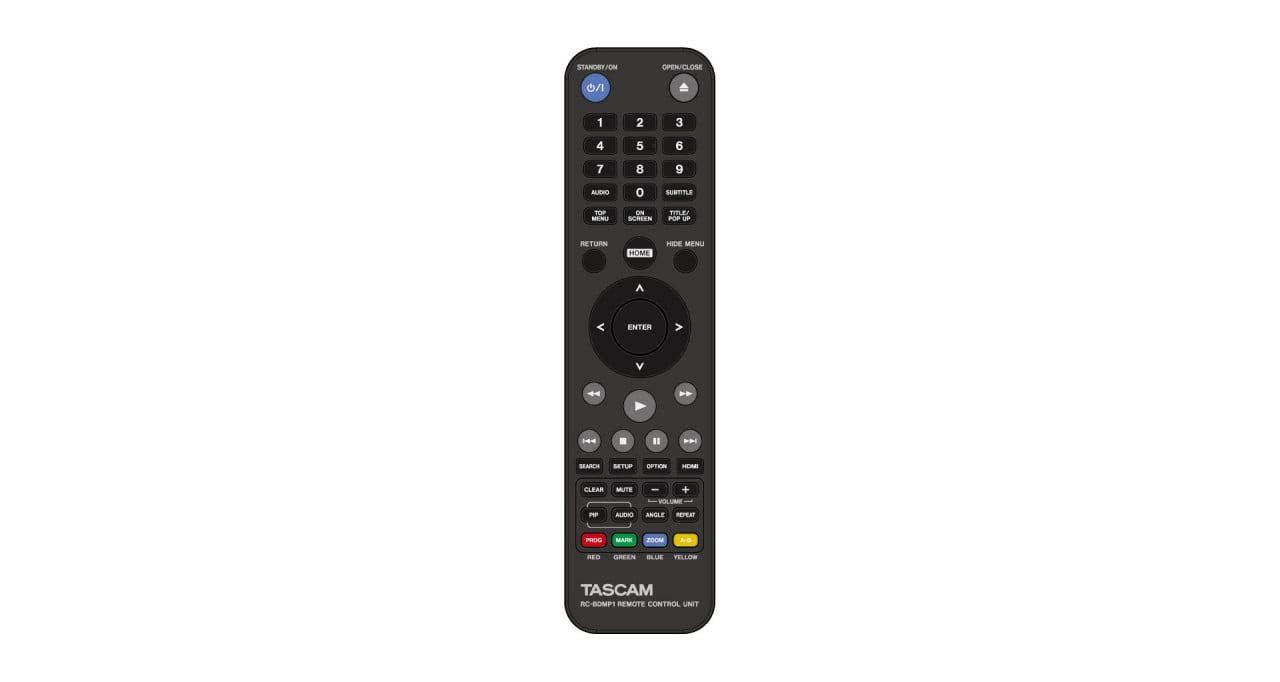

• Included accessories: remote control (RC-BDMP1), power supply, rack mounting kit, user manual

Audio performance:

• Frequency response: 20Hz - 20kHz, +/-0.5dB (JEITA)
• THD: 0.03% or less (1kHz, JEITA)
• S/N ratio: 96dB or greater (JEITA)
• Dynamic range: 96dB or greater (JEITA)
• Channel separation: 89dB or greater (JEITA)
