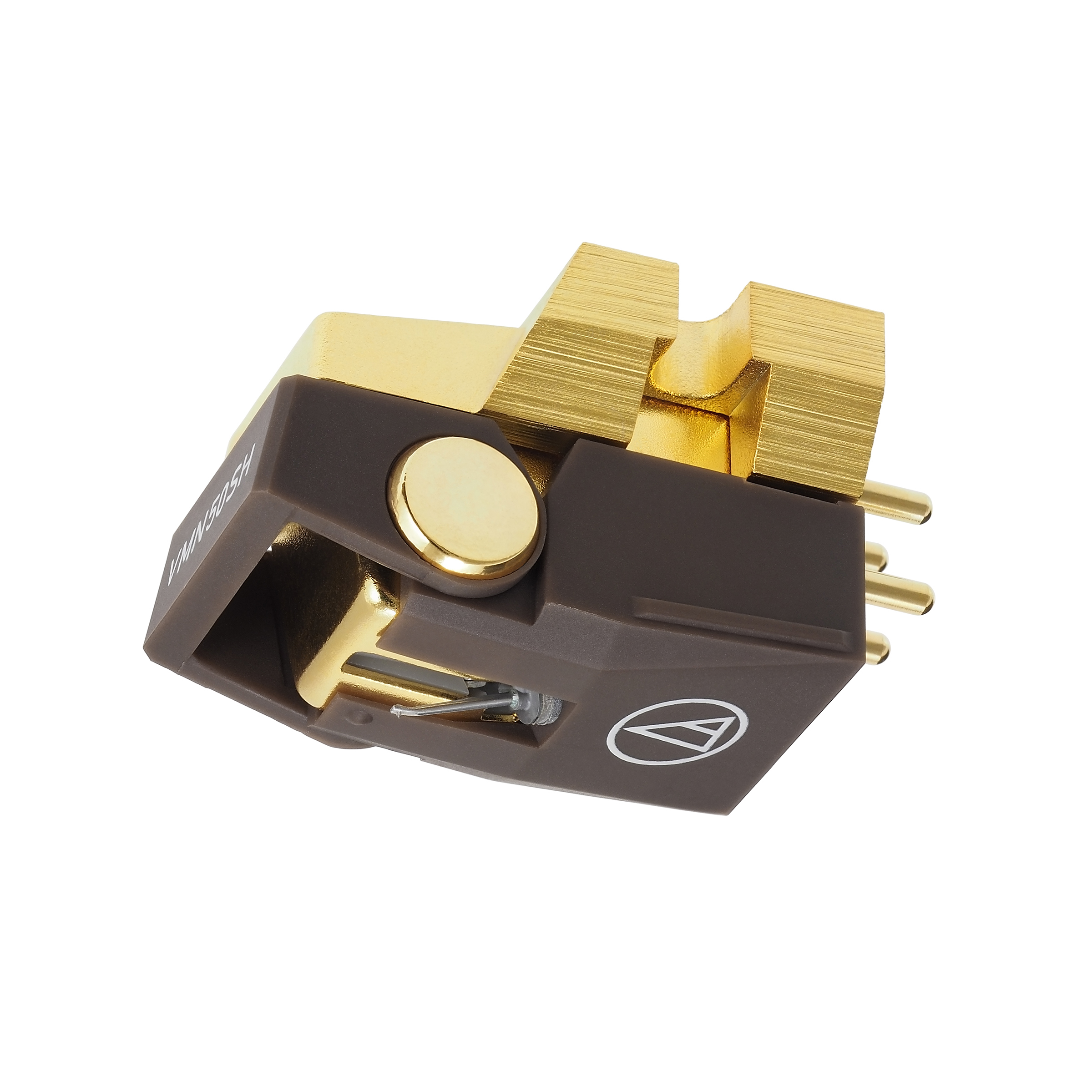

Audio-Technica VM-750 SH - replacement cartridge for turntables, being part of the 700 series of the VM line, featuring dual magnets positioned to correspond with the left/right channels of a stereo recording, ensuring precise channel separation and extended frequency response. The Shibata stylus provides an increased contact area, resulting in reduced tracking distortion and high accuracy sound reproduction.
Features:
VM cartridge with dual magnets and Shibata stylus
Shielded aluminium cantilever
Paratoroidal coils
Central shielding between left and right channels to reduce crosstalk
Aluminium alloy housing reduces vibration and adds natural shielding
Technical specifications:
Frequency response: 20-27,000 Hz
Channel separation: 30 dB (1 kHz)
Vertical tracking force: 1.8-2.2 g (2.0 g standard)
Stylus construction: Nude square shank
Recommended load impedance: 47,000 ohms
Output: 4.0 (mV at 1 kHz, 5 cm/sec)
Channel balance: 1.0 dB (1 kHz)

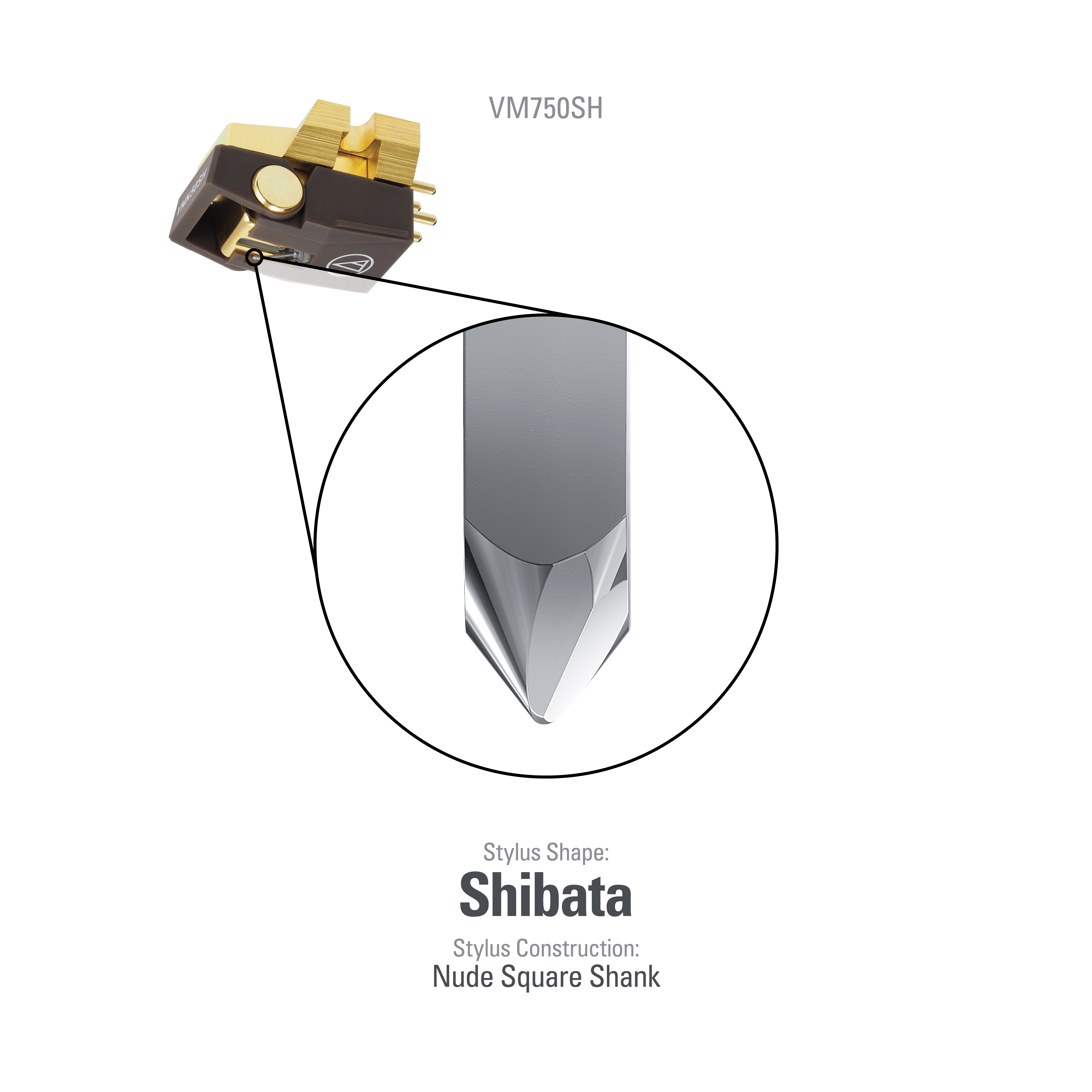

Stylus shape: 2.7 x 0.26 mil Shibata
Cantilever: shielded aluminium tube
Mount: half-inch
Replacement stylus: VMN50SH
Coil impedance: 2,700 ohms (1 kHz)
DC resistance: 800 ohms
Loading capacity: 100-200 pF
Coil inductance: 460 mH (1 kHz)
Vertical tracking angle: 23°
Dimensions (WxDxH): 17.0 x 28.2 x 17.3 mm
Weight: 8.0 g
Included accessories: 4 cartridge installation screws (5 mm x 2, 10 mm x 2), 2 washers, 2 nuts, non-magnetic screwdriver, brush, installation lead set
