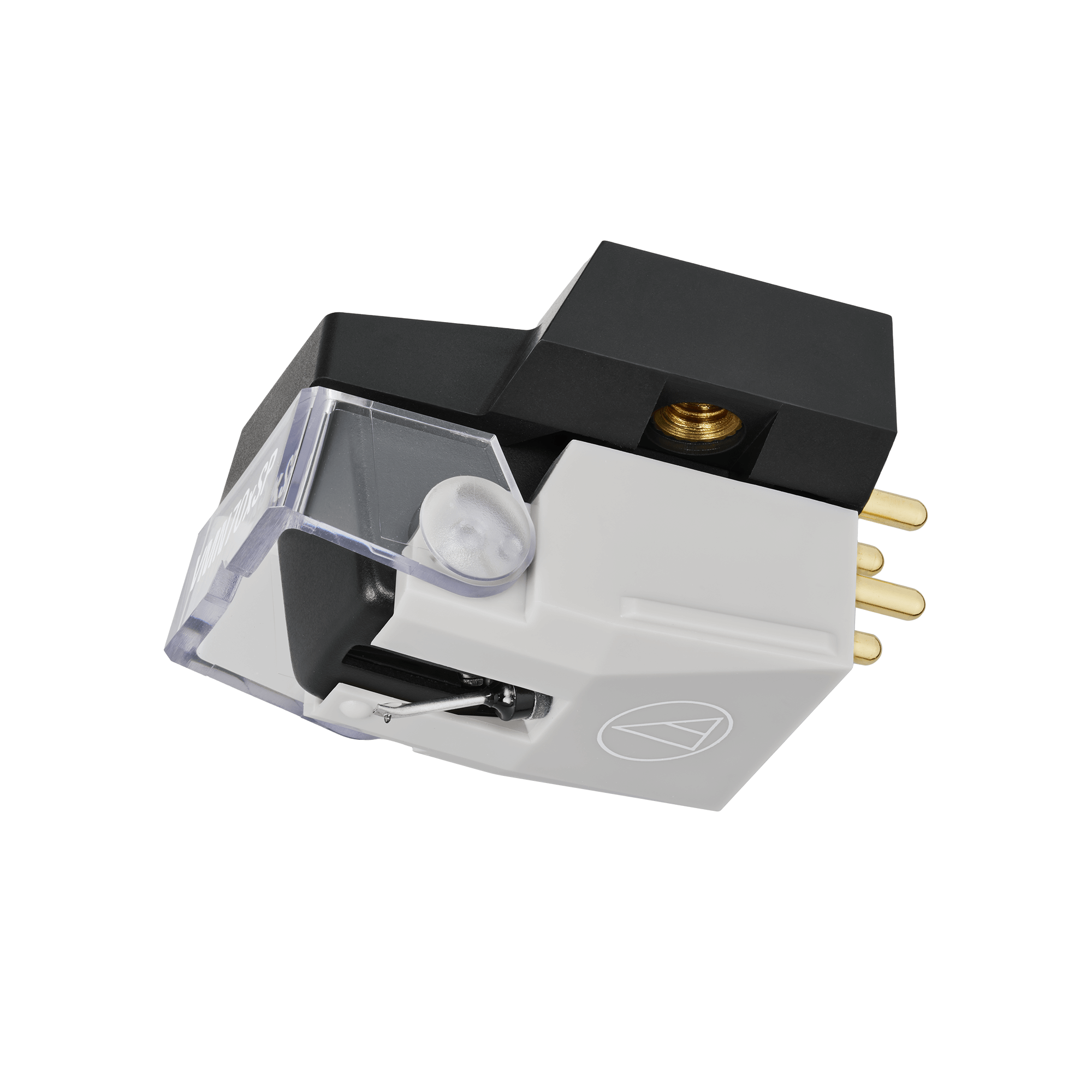

Audio-Technica AT-VM670xSP


Pickup Cartridge

  • specially designed for 78 RPM mono records, ideal for collectors and audiophiles.
  • dual Moving Magnet (MM) type with internal mono connection for reduced noise.
  • 3.0 mil conical stylus optimised for tracking wide grooves of shellac records.
  • easy installation with threaded inserts and V-shaped stylus protector.
  • output voltage of 4.7 mV and frequency response of 20 – 20,000 Hz.
Audio-Technica
14527
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
746 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

Audio-Technica AT-VM670xSP - Cartridge for pickup, specially designed for playing 78 RPM mono records. Ideal for collectors and audiophiles who wish to reproduce historical recordings with authentic fidelity and reduced noise. Part of the VMx series from Audio-Technica, this cartridge offers a combination of tradition and modern technology.

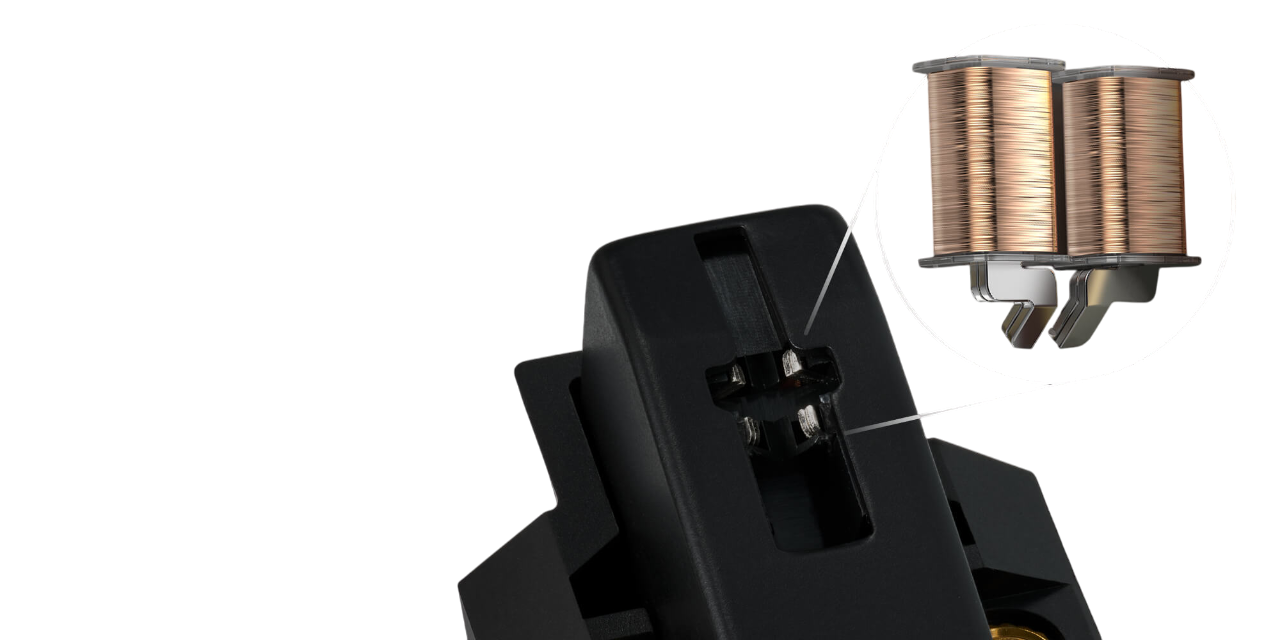

The design with internally connected dual magnets provides a centralised mono signal, significantly reducing crosstalk and surface noise. The 3.0 mil conical stylus is optimised for tracking the wide grooves of 78 RPM shellac records, delivering precise and stable reproduction of sound recorded in different eras.

The threaded inserts ensure easy installation, while the V-shaped stylus protector allows for correct positioning of the needle on the record.

Main features:

  • Mono cartridge for 78 RPM records
  • Type: Dual Moving Magnet (MM)
  • Internal mono connection – central sound image and reduced noise
  • Aluminium cantilever

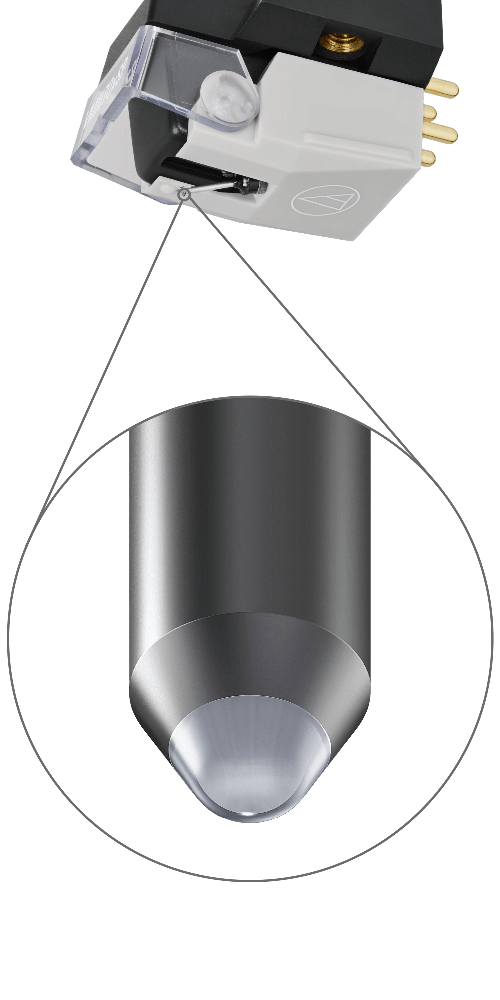

  • 3.0 mil conical stylus – ideal for shellac records, optimal tracking
  • Output voltage: 4.7 mV
  • Frequency response: 20 – 20,000 Hz
  • Recommended tracking force: 5.0 g (range: 4.5 – 5.5 g)
  • Easy mounting – threaded inserts + V-shaped stylus protector
  • Replacement stylus: AT-VMN70xSP (sold separately)
  • Included: M2.6 screws (10, 8 and 5 mm) × 2 / washers × 2 / Threaded hole: M2.6 × 2

Technical specifications:

  • Coil impedance: 1.6 kΩ
  • Coil inductance: 240 mH
  • DC resistance: 375 Ω
  • Recommended load impedance: 47 kΩ
  • Recommended loading capacitance: 150 – 250 pF
  • Vertical tracking angle: 20°
  • Aluminium rod
  • Horizontal/vertical output ratio: 20 dB (1 kHz)
  • Static compliance: 23 × 10-6 cm/dyne
  • Dimensions: 28 × 18.3 × 17.6 mm
  • Weight: 7.2 g

Product code: QN-AT-VM670xSP

Unit of sale: piece
