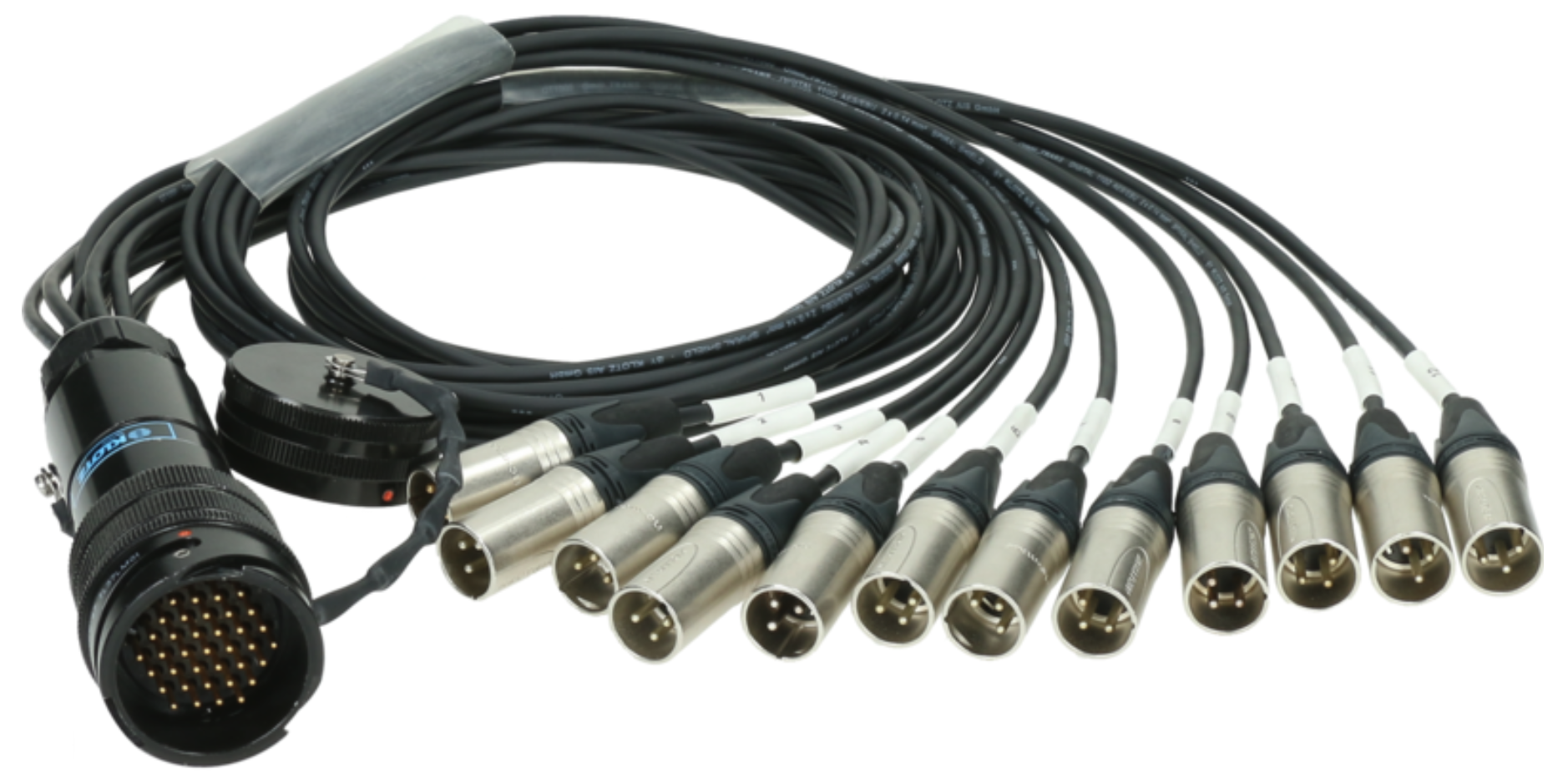

Klotz OT1000 - RMP 37p M - 12x XLR 3p M12-channel - digital fanout - PVC - Neutrik®

• RMP 37-pin (round multipin connector) with gold-plated male pins and protective cover
• quality, robust and reliable connection> 2000 plug cycles even under adverse conditions
• stainless aluminum housing state with bayonet, IP67 when plugged and closed (cover)
• compatible with LK connectors, Tourline and CIRLK, as well as other connectors according to MIL C 5015 standard
• OmniTRANS - 2x 0,15 mm² - AES/EBU patch cable - PVC
• tinned copper spiral shield, >95% coverage

Our multicore fanouts are the ideal choice for applications where analogue or digital audio signals have to be distributed and processed. The fanouts are fitted with RMP connectors – from the shortest patch cable to the longest connector cable – ensuring the RMP F/M philosophy is consistently in place throughout all peripherals. The RMP connectors have rustproof aluminium housing and bayonet connections, providing IP67 rating in both connected and closed states. They are also incredibly reliable (over 2000 mating cycles) even in the harshest outdoor conditions. The fanout of the 1.2 m patch cable is based on our OT1000 AES/EBU Patch Cable. With an external diameter of a mere 4.6 mm, it’s extremely compact – and, with ultra-dense tinned copper spiral shield, also superbly flexible. Fanouts in lengths of 3-15 m are made up with our multicore cables; we use PolyLIVE for analogue signals, and OmniLIVE for digital signals. PolyLIVE is our best-selling multicore. Low capacitance, outstanding crosstalk attenuation thanks to matched lay lengths, and an array of shielding features all keep external interference at bay. OmniLIVE also offers outstanding electrical properties combined with extra-low external diameter and obligatory 110-ohm characteristic impedance. Fanouts are available with Neutrik XLR connectors or our own in-house KLOTZ connectors.

cable

cable typ: OT1000 - very compact cable for cramped space conditions, Ø 4.6 mm

heat shrink (transparent): 70 mm

connectors

pins: 37

connector 1: RMP (round multipin connector) male

contact 1: gold-plated

pinout: pinout male insert - wiring side

connector 2: XLR fanout with 12 XLR male

contact 2: silver-plated

Caracteristici

multipin connection	RMP M
pins	37
cable type	OT1000
XLR inputs	0
XLR outputs	12
manufacturer XLR	Neutrik®
cable color	black
length	1.2 m
