Klotz OmniLIVE - RMP 54p M - 16x XLR M16-channel - digital fanout - PVC - plastic / ZEP - 20 m

Professional multicore cable

conector multipin RMP cu contacte placate cu aur și protecție IP67.
carcasă robustă din aluminiu, peste 2000 de cicluri de conectare.
compatibil cu mai multe tipuri de conectori standard.
cablu multicore OmniLIVE cu ecranaj total și fanout XLR 16x.
marcarea canalelor pe XLR prin gravare laser sau tub termocontractabil.

Variants:

1 147¹⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

5891 points of loyalty

Shipping free

Warranty 12 months

Returns 14 days

request details

Klotz OmniLIVE - RMP 54p M - 16x XLR M16-channel - digital fanout - PVC - plastic / ZEP - 20 m Add to cart: 1 147¹⁰ €

RMP (round multipin connector) with gold-plated contacts and protective cover
quality, robust and reliable connection> 2000 plug cycles even under adverse conditions
stainless aluminum housing state with bayonet, IP67 when plugged and closed (cover)
compatible with LK connectors, Tourline and CIRLK, as well as other connectors according to MIL C 5015 standard
OmniLIVE AES/EBU multicore - n x 2 x 0.22 mm² - PVC
overall braid shield
strain relief optionally made of plastic (ZEP) or metal (Remke)
variant with KLOTZ XLR: channel labeling by laser engraving on the XLR connectors
variant with Neutrik® XLR: channel labeling by printed heat shrink tubing

Our Multicore Fanouts are the ideal choice for applications where analogue or digital audio signals have to be distributed and processed. The RMP connectors have rustproof aluminium housing and bayonet connections, providing IP67 rating in both connected and closed states. They are also incredibly reliable (over 2000 mating cycles) even in the harshest outdoor conditions.

cable

cable typ: OmniLIVE audio multicor for mobile use, correspondent to the ARD / ZDF specification 3/3, highly suitable for analog and digital audio signals

connectors

pins: 54

connector 1: RMP (round multipin connector) male

contact 1: gold-plated

pinout: pinout female insert - wiring side

connector 2: XLR fanout with braided sleeve: 16x male

contact 2: gold-plated

Caracteristici

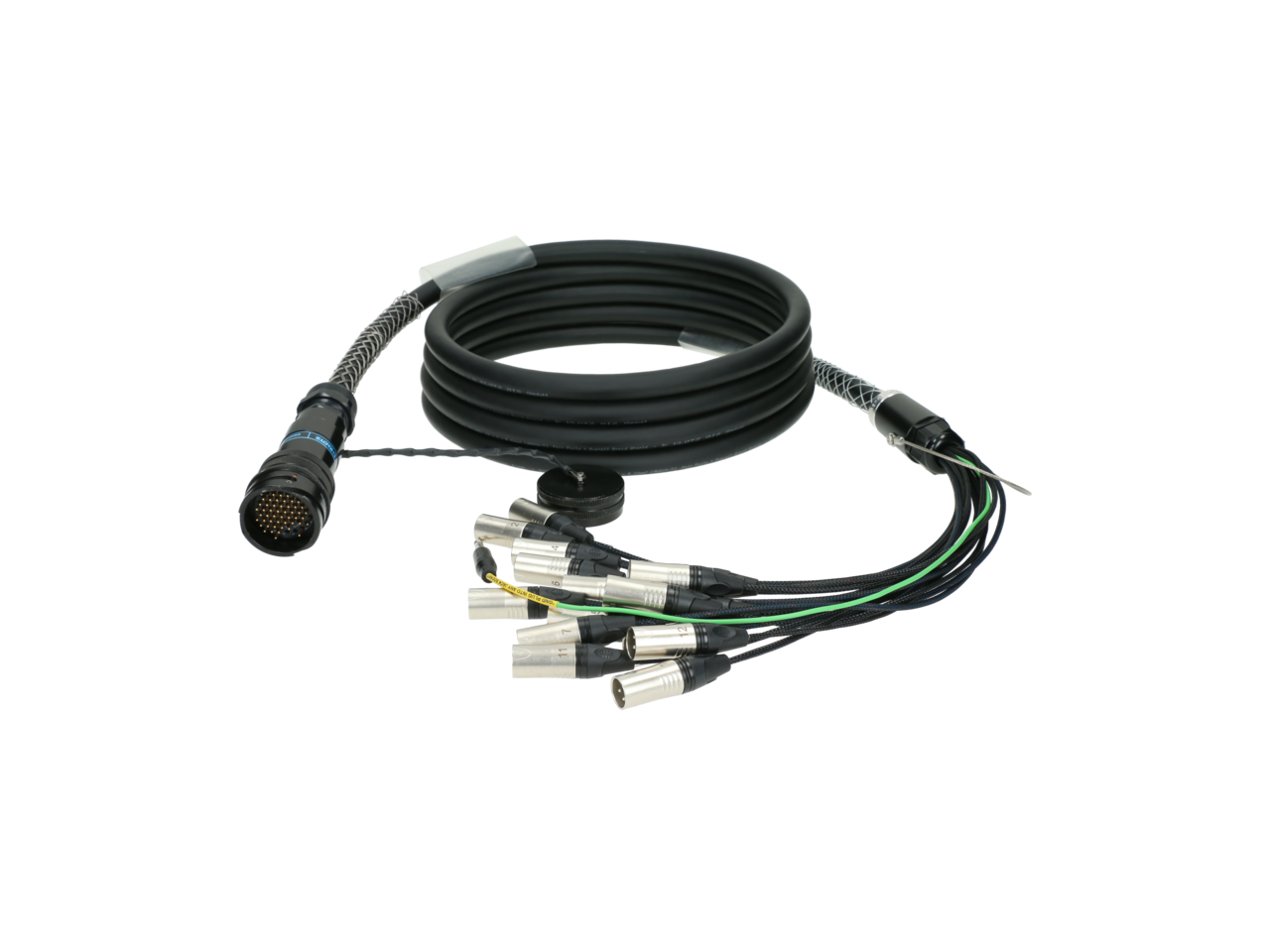

fig. shows	similar 16-channel fanout
multipin connection	RMP M
pins	54
cable type	OL22Y16
XLR inputs	0
XLR outputs	16
manufacturer XLR	KLOTZ
cable color	black
fanout	with braided sleeve
fanout length	400 mm
strain relief	plastic / ZEP
length	20 m
