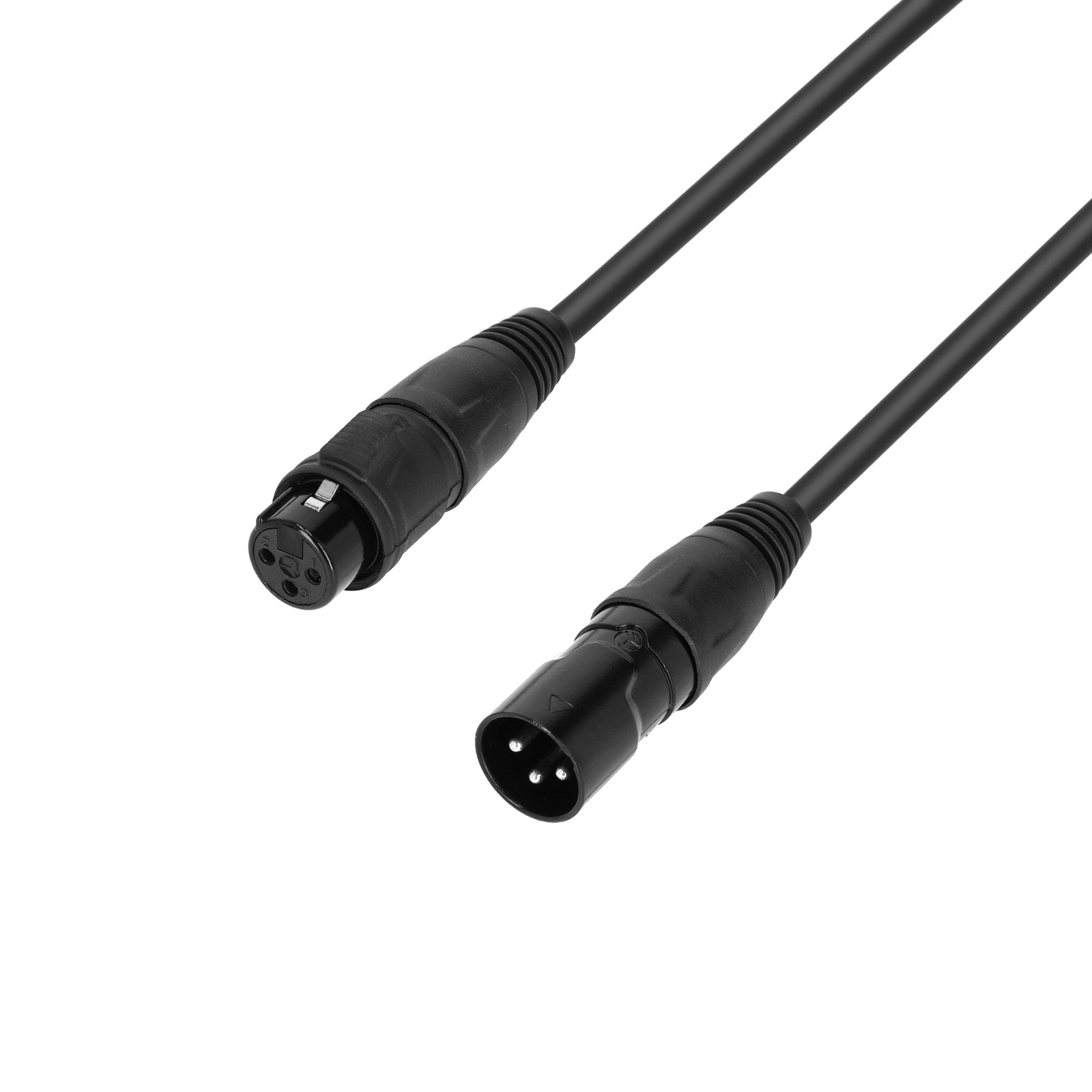

Adam Hall 4Star DMX XLR3 IP65 10m


DMX cable

  • this DMX, AES/EBU Cable from our 4 STAR SERIES is made for professional users
  • for this cable we only use original Rean® connectors with silver-plated contacts, which are rated as IP65. Rean® is a brand of the Neutrik Group®. Every new developed product goes through the hands of a Neutrik® engineer
  • the line with 0.34 mm²
  • this DMX, AES/EBU Cable from our 4 STAR SERIES is made for professional users
  • for this cable we only use original Rean® connectors with silver-plated contacts, which are rated as IP65. Rean® is a brand of the Neutrik Group®. Every new developed product goes through the hands of a Neutrik® engineer
Adam Hall
2102
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
108 points of loyalty
Shipping 8.00 €
Warranty 24 months
Returns 14 days

Professional Quality Cable

For professional applications on stage, in the studio or in the rehearsal room, professional quality is available with our 4 STAR SERIES. This cable is completely developed in Germany and therefore meets the relevant requirements for professional use.

We focus on durability and reliability, and have therefore developed a line of cables that are not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 4 STAR SERIES which has very good bending abilities. Of course, the jacket is not the only factor that makes a cable great, so we use a dense copper-spiral shielding, for professional transmission values. All these parts make the cable very flexible.

Specifications:

Cable length: 10 m
Cable jacket: PVC (Polyvinyl chloride)
Cable diameter: 6.5 mm
Cable colour: Black
Connector type plug 1: XLR 3-pole female
Model name plug 1: Adam Hall K4CXF3IP65
Connector type plug 2: XLR 3-pole male
Model name plug 2: Adam Hall K4CXM3IP65
Conductor material: OFC (Oxygen-free copper)
Conductor diameter: 2 x 0,34 mm²
Capacity/m: 65 pF
Conductor impedance/km: 53 Ohm
Protection class: IP65
Ambient temperature: -20 - 70 °C
Weight: 381 g
Product type: Bulk Cable
Type: DMX & AES/EBU Cable
Color: Black
Overall diameter: 6.5 (+/- 0.2 ) mm
Center conductor cross section: 0.34 mm²
Center conductor material: Copper, OFC
Center conductor construction: 7 x 0.25 mm
Number of internal conductors: 2
Shield material: copper
Shield: Braided shielding
Line resistance: 53 Ohm(s)
Capacitance: 65 pF/m
Jacket material: PVC
Weight: 0,05 kg
Product type: Plugs and Connectors
Type: XLR Connectors
Poles: 3
Gender: male
Cable diameter: 3.5 - 8 mm
Contacts: gold plated
Connection type: solder contacts
Color: silver, black + orange
Housing: die-cast zinc
Length: 70.8 mm
Diameter: 18.9 mm
Weight: 0,02 kg
Product type: Plugs and Connectors
Type: XLR Connectors
Poles: 3
Gender: female
Cable diameter: 3.5 - 8 mm
Contacts: gold plated
Connection type: solder contacts
Color: silver, black + orange
Housing: die-cast zinc
Length: 73.6 mm
Diameter: 16,8 mm
Weight: 0,02 kg

Product code: K4DMF1000IP65

Unit of sale: piece

Specifications:
Connector type: XLR 3
IP protection grade: IP65
Length (meters): 10 m
