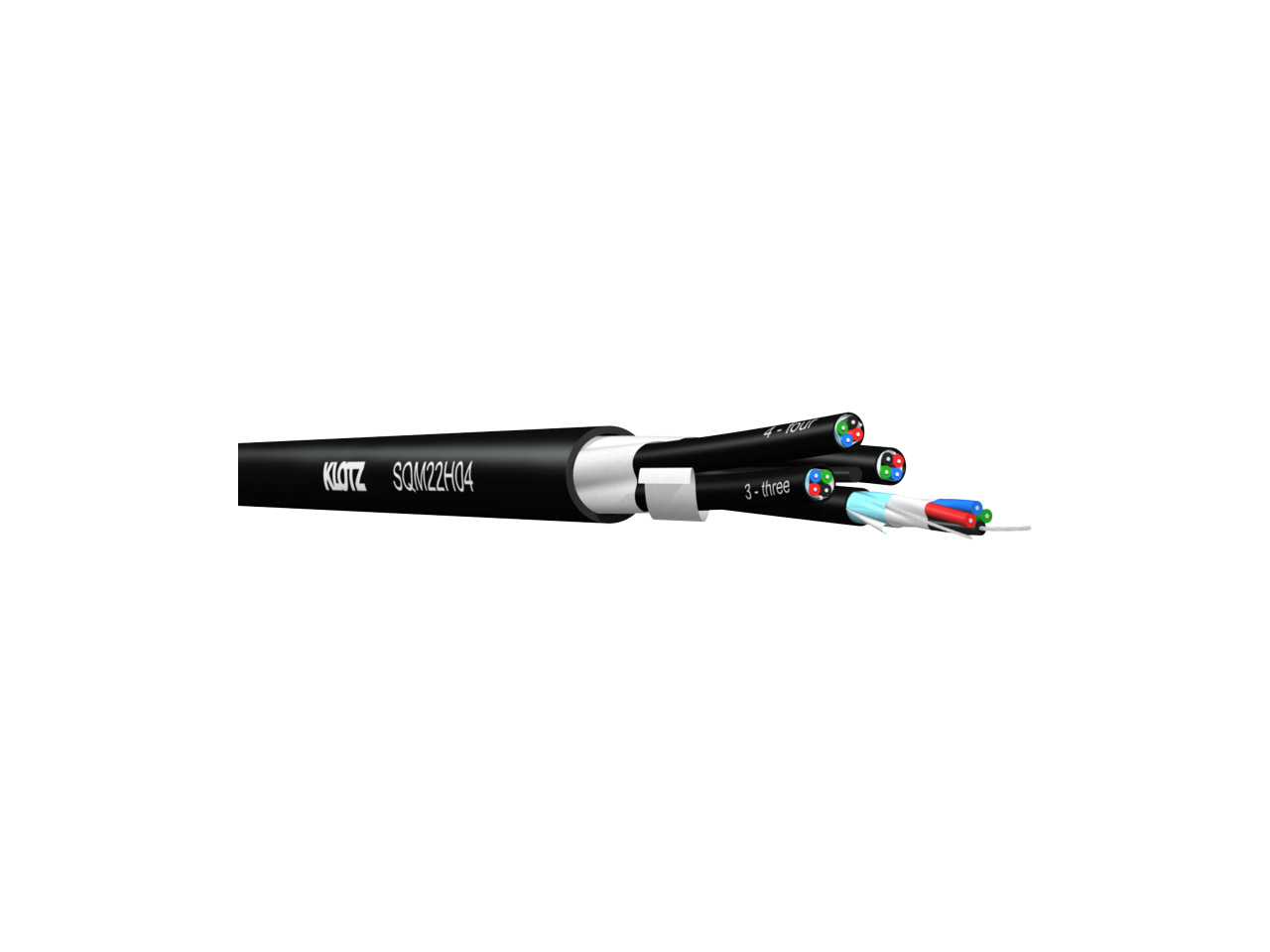

Klotz StarQuad SQM22

Multicore microphone cable

combines four cables for superior performance and minimal interference.
halogen-free FRNC sheath for safety and compliance.
stable and robust structure ensures long-lasting durability.
excellent capacitance values for high-quality sound transmission.
ideal for installations in professional audio environments.

10³³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 12 months

Returns 14 days

request details

Klotz StarQuad SQM22 Add to cart: 10³³ €

Klotz StarQuad SQM22, a multicore microphone cable that combines four cables based on the conductive properties of the SQ422H cable. It features a halogen-free FRNC sheath, flame-resistant, ideal for installations. Each individual cable consists of a star quad with electrically opposite cores, minimising electromagnetic interference. The aluminium-covered foil shield effectively protects against interference. The layered twisting of the individual cables creates a stable and robust structure for durability.

Conductor construction: tinned copper, 7 x 0.20 mm
Conductor cross-section: 0.22 mm²
Insulation: polyethylene (PE)
Core arrangement: 4 twisted cores in star quad
Drain wire: tinned copper, 7 x 0.20 mm
Shielding: AL/PETP foil
Element jacket: LSZH, black, numbered
Twisting: 4 twisted elements
Outer jacket: FRNC, black
Minimum bending radius: 10x total diameter
Halogen-free: according to IEC 60754-2
Flame resistance: according to IEC 60332-1
Conductor resistance: 85 Ω/km
Insulation resistance: > 10 GΩ x km
Capacitance:
- cond./cond.: 120 pF/m
- cond./screen: 180 pF/m

cond./cond.²: 50 pF/m
cond./screen²: 100 pF/m

Product code: SQM22H04

Unit of sale: metru liniar
