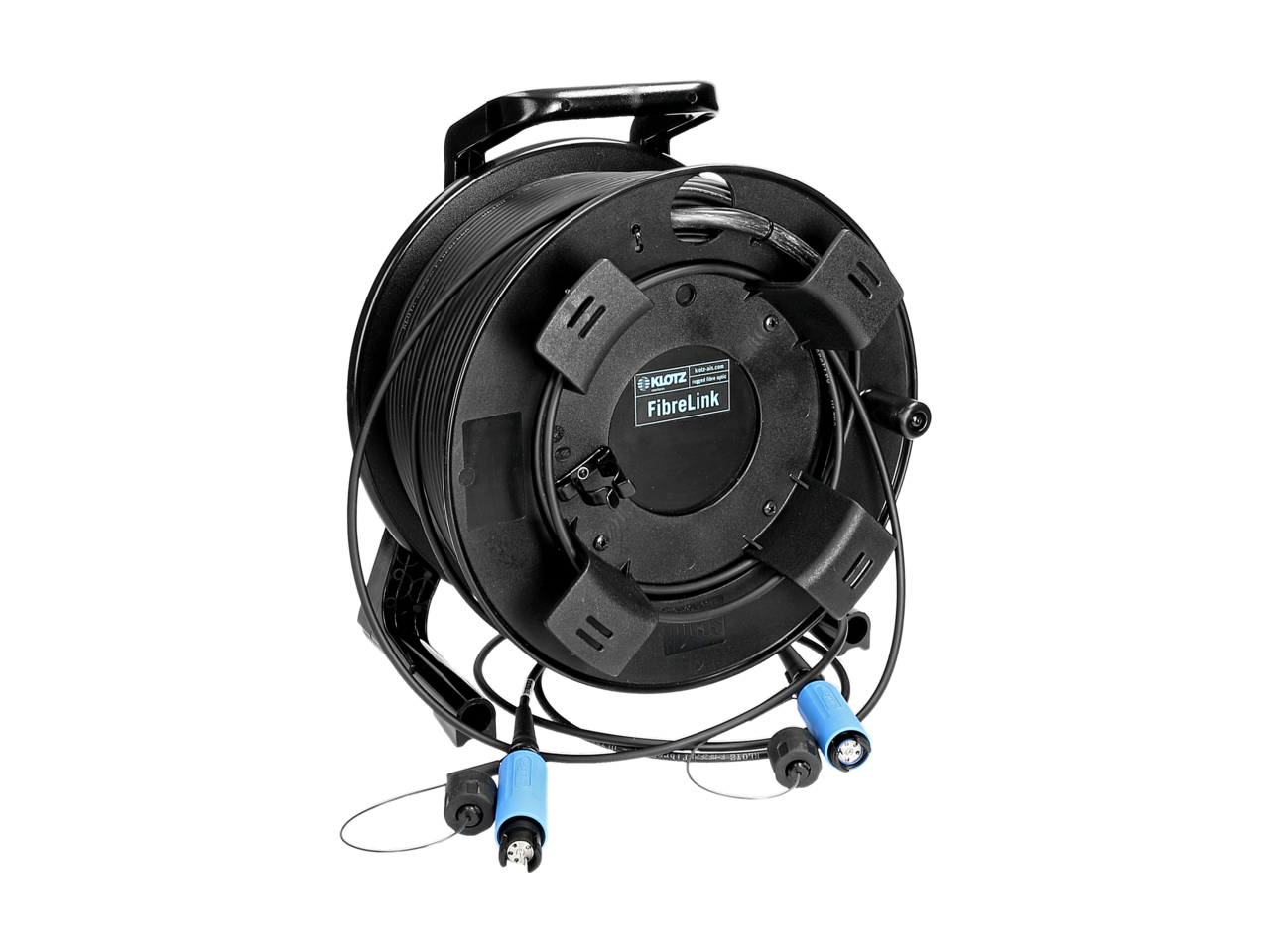

Klotz SmartBeam DUO cable drumFiberLink - single-mode OS2 - 100 m - GT310

• KLOTZ SmartBeam DUO, unique hermaphrodite 2x expanded beam connector
• ultra-low attenuation:
• undirected connection technology with > 3000 mating cycles / SmartBeam

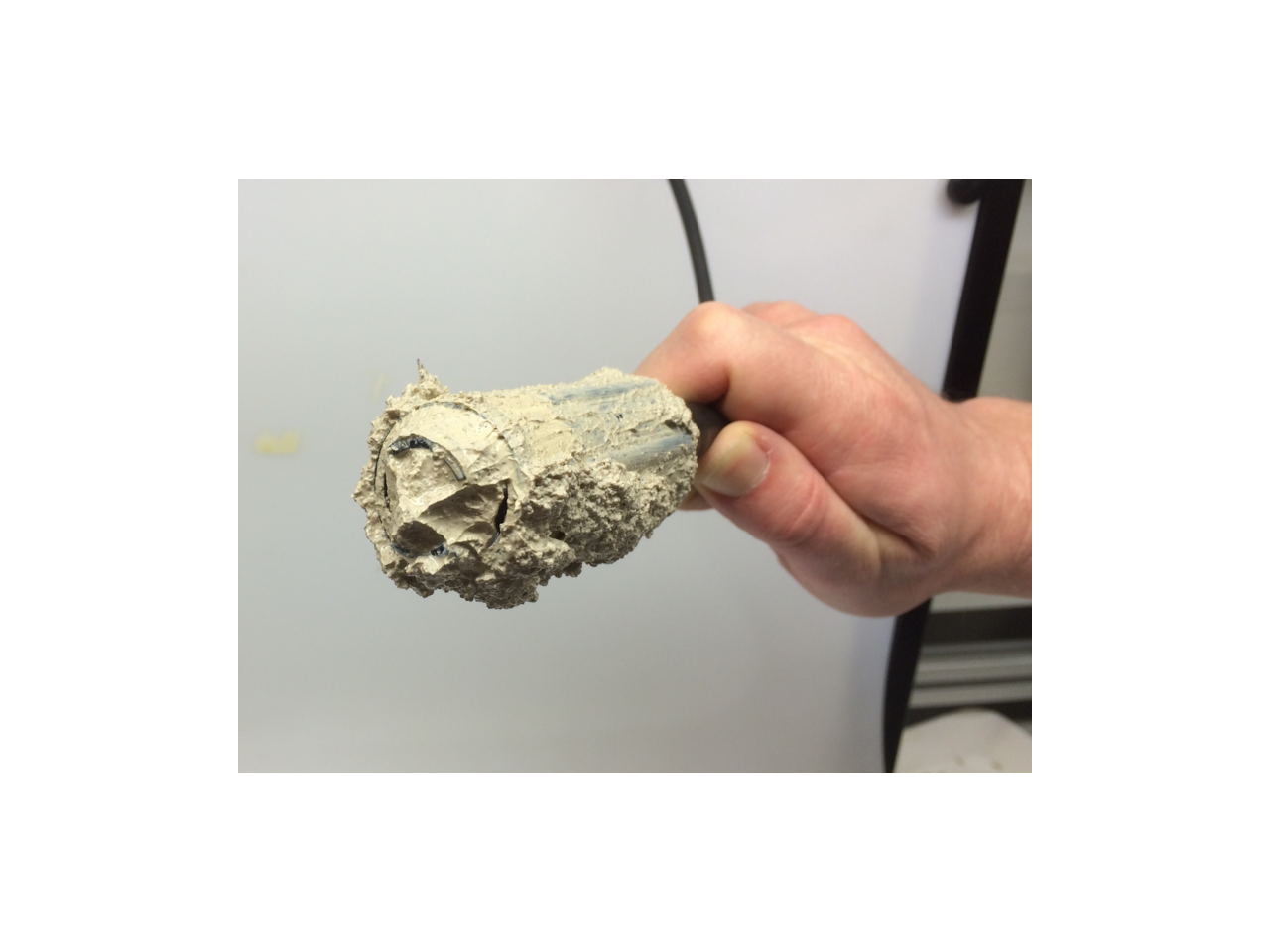

• no physical fibre contact – the connector thus features long-term stable insertion loss, IP67 rating, resistant to dust and dirt / SmartBeam
• compatible with international standards and systems such as Fiberfox, FibreCo HMA, Stratos, Optocore, Eurolens EBC, Optocon, FibreCast™ or MIL-DTL-83526/20 connectors and MIL-DTL-83526/21 bulkheads / SmartBeam
• FiberFlex ULTRA cable – OS2 fibers 9/125 µm, 900 µm tight buffered, PUR jacket
• 10 Gbit/s transmission up to 10 km (specification bulk cable)
• extremely rugged and highly flexible, suitable for outdoor use, ideal for the most challenging situations
• great mechanical strength, strong resistance to shear pressure, narrow bending ranges possible and low kinking sensitivity, strain relief due to aramid yarns

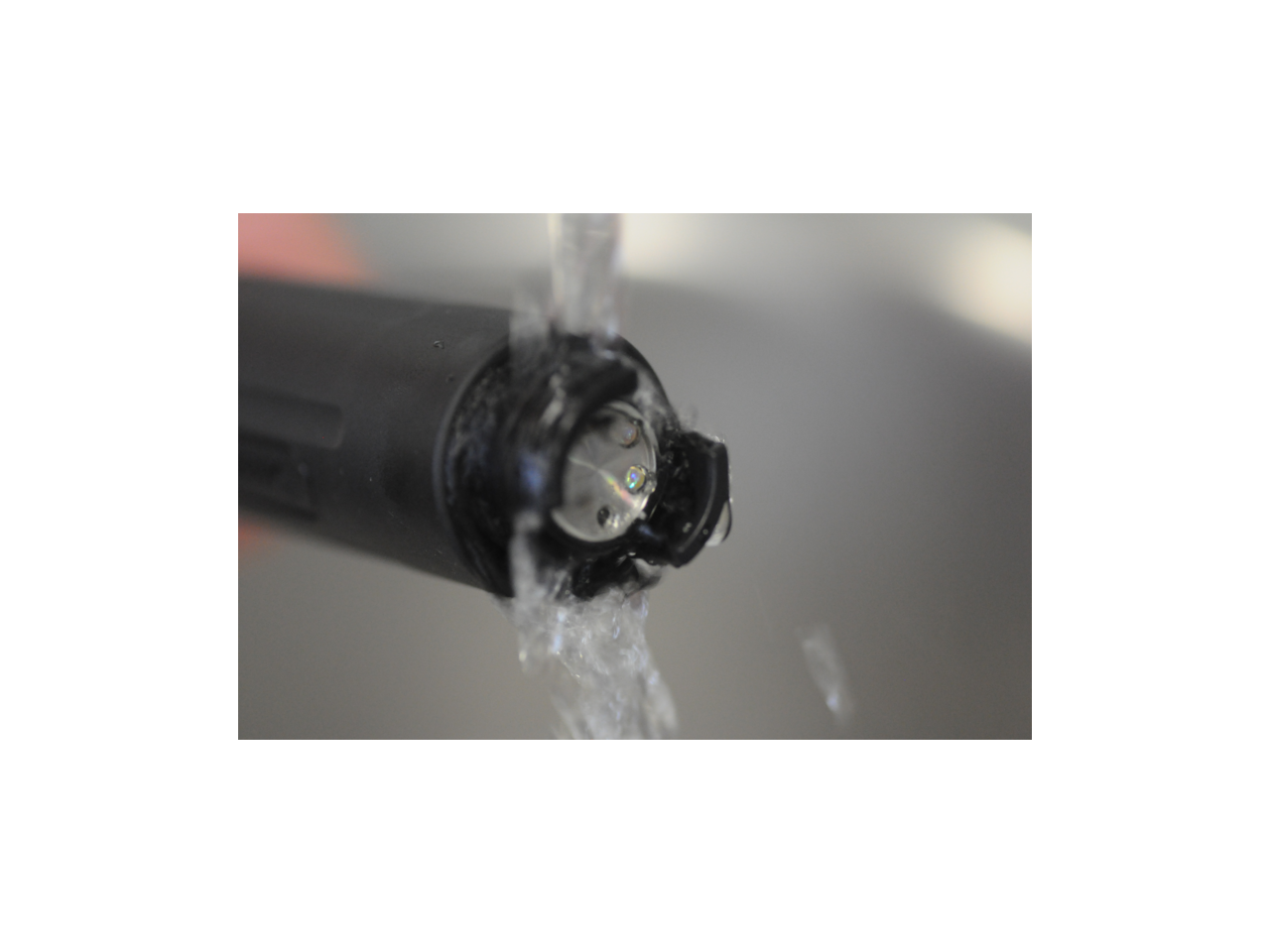

Our SmartBeam DUO is in a class of its own! The two-lens hermaphrodite connector is ideal for omnidirectional connection technology, with transmission rates of up to 2 x 10 GB/s. Its ultra-rugged design can cope with > 3000 mating cycles. The connector is also impervious to dust and dirt during outdoor use, with an IP 67 rating offering protection against dust and water ingress. It’s easy to clean using water and a lint-free cloth. Contactless transmission eliminates lens wear and ensures absolutely stable long-term insertion loss. The SmartBeam DUO is naturally compatible with international standards and systems, e.g. Fiberfox, Stratos, Optocore, Eurolens, Optocon and FibreCast™. This extra-slim two-strand FO cable (external diameter less than 6 mm) delivers transmission rates of 10 GB/s over distances of up to 300 m. Its highly flexible design, featuring 500 μm primary coating and 900 µm tight buffered fibre layers, protects the conductors (2 x 50/125 µm, multimode) from external influences while keeping bending radius to a minimum. The individual optical fibres are protected and separated by an extra thick acrylate layer. Ultra-low attenuation of less than 0.7 dB/km ensures superb signal quality throughout the entire transmission distance.

cable

fiber: single-mode OS2

connectors

connector 1: hermaphroditic SmartBeam DUO lens connector designed for harsh climatic conditions, with plastic protection cap

connector 2: hermaphroditic SmartBeam DUO lens connector designed for harsh climatic conditions, with plastic protection cap

Caracteristici

length	100 m
connectors	SmartBeam DUO
fiber category	Single-Mode OS2
cable drum	GT310
cable color	black
