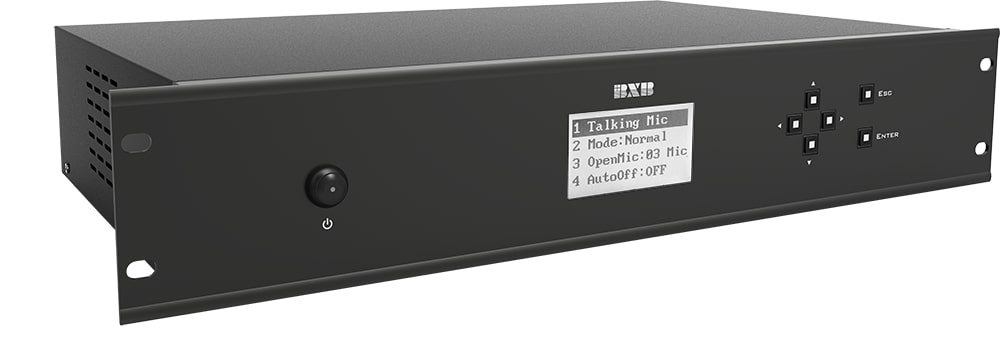

BXB Central Unit FCS 6350

Central Unit FCS 6350 - Central unit:

• 4 inputs for connecting microphone desktops
• Up to 24 desktops can be connected to each connector
• Independent audio outputs for individual desktop branches
• LCD display 128 x 64 pixels

Operating modes and available functions:

• NORMAL / OVERRIDE / CHAIRMAN
• FIFO: A limited number of delegates can speak; each subsequent microphone will be set to standby
• OPEN-MIC: 1-30 delegates can speak
• VOICE: 10-99 seconds after the end of speaking, the microphones are automatically turned off

Automatic testing of microphone connections after the system is powered on.

Management of delegate desk activities from the central unit or the chairman's desk.

RS-232 port for control via graphical software (required for voting function) or to cooperate with multimedia room management systems (e.g., Crestron, AMX).

Option to activate one of the speaker tracking modes: BUTTON / VOICE / PRESET.

Control of system operation using dedicated B FCS 6370 graphical software (full functionality and voting), via a web browser (without voting function) or through an iPhone/iPad app.

Automatic control of output sensitivity, volume, and echo and interference elimination (built-in DSP processor)

USB port for audio recording and playback.

Technical specifications:

• Frequency response: 50Hz ÷ 16kHz
• THD: <0.1%
• S/N ratio: ≥ 85dBV
• Connection for console microphones: 4 × RJ45 socket
• Ethernet: 10Mbps
• XLR microphone inputs: 1 x 600Ω / 6mV / -20dB (digital control)
• Line Out: -4dB ÷ + 12dB, 200Ω balanced
• AUX In: 1 x 20kΩ / 300mV / 0dB (digital control)
• AUX Out: -3dB ~ + 12dB ≧ 200Ω (RCA)
• Dimensions: 100 x 430 x 280mm
• Weight: 5.8kg
