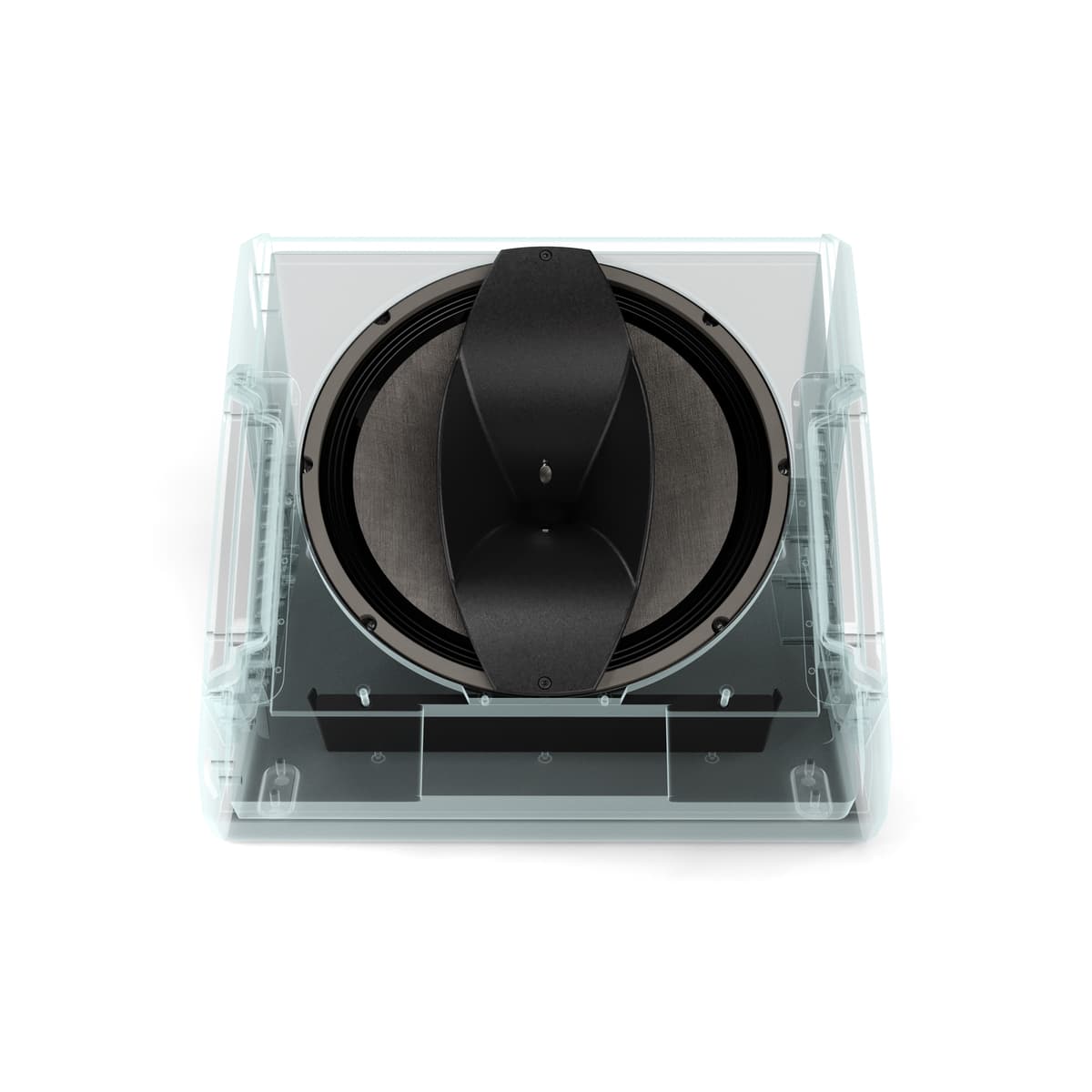

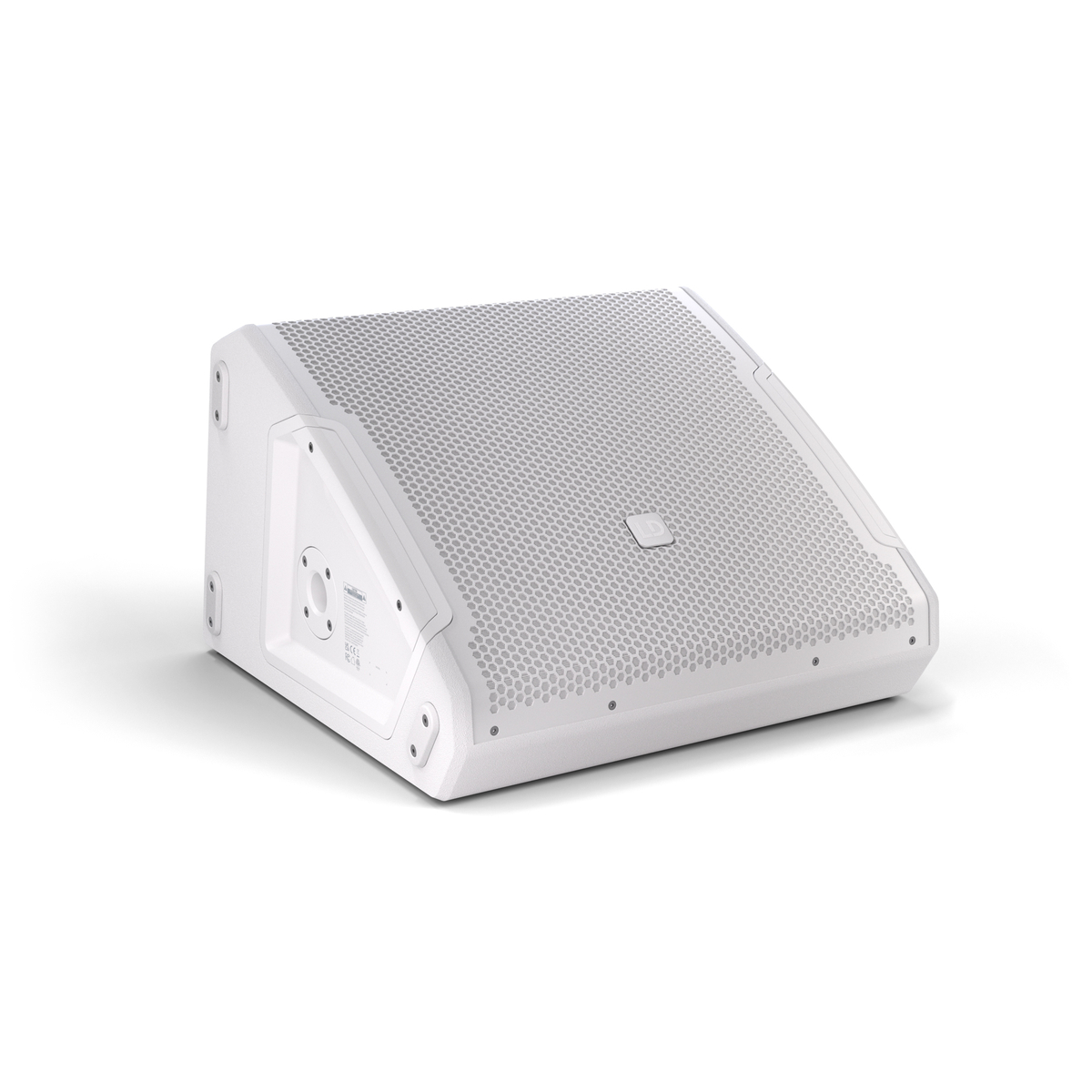

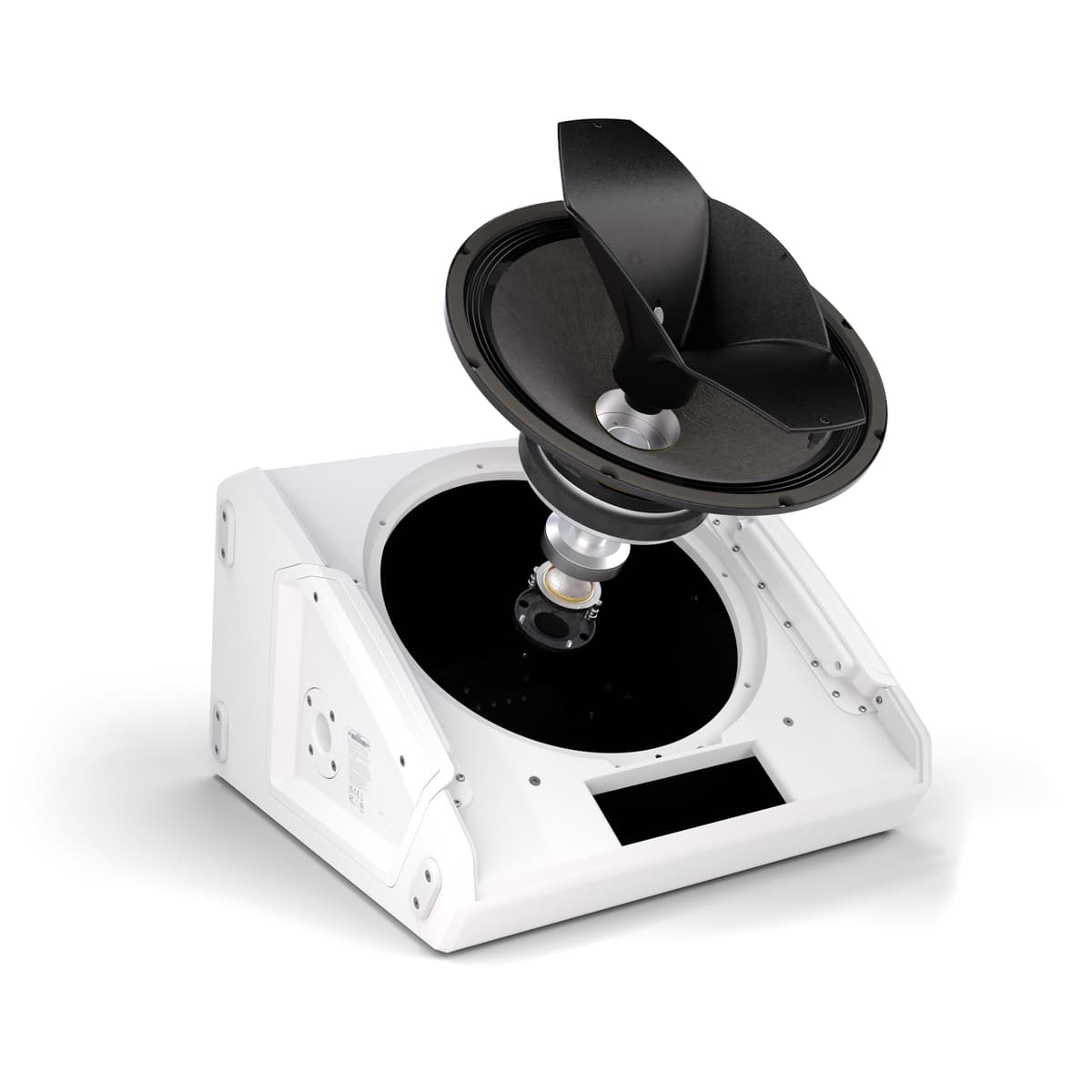

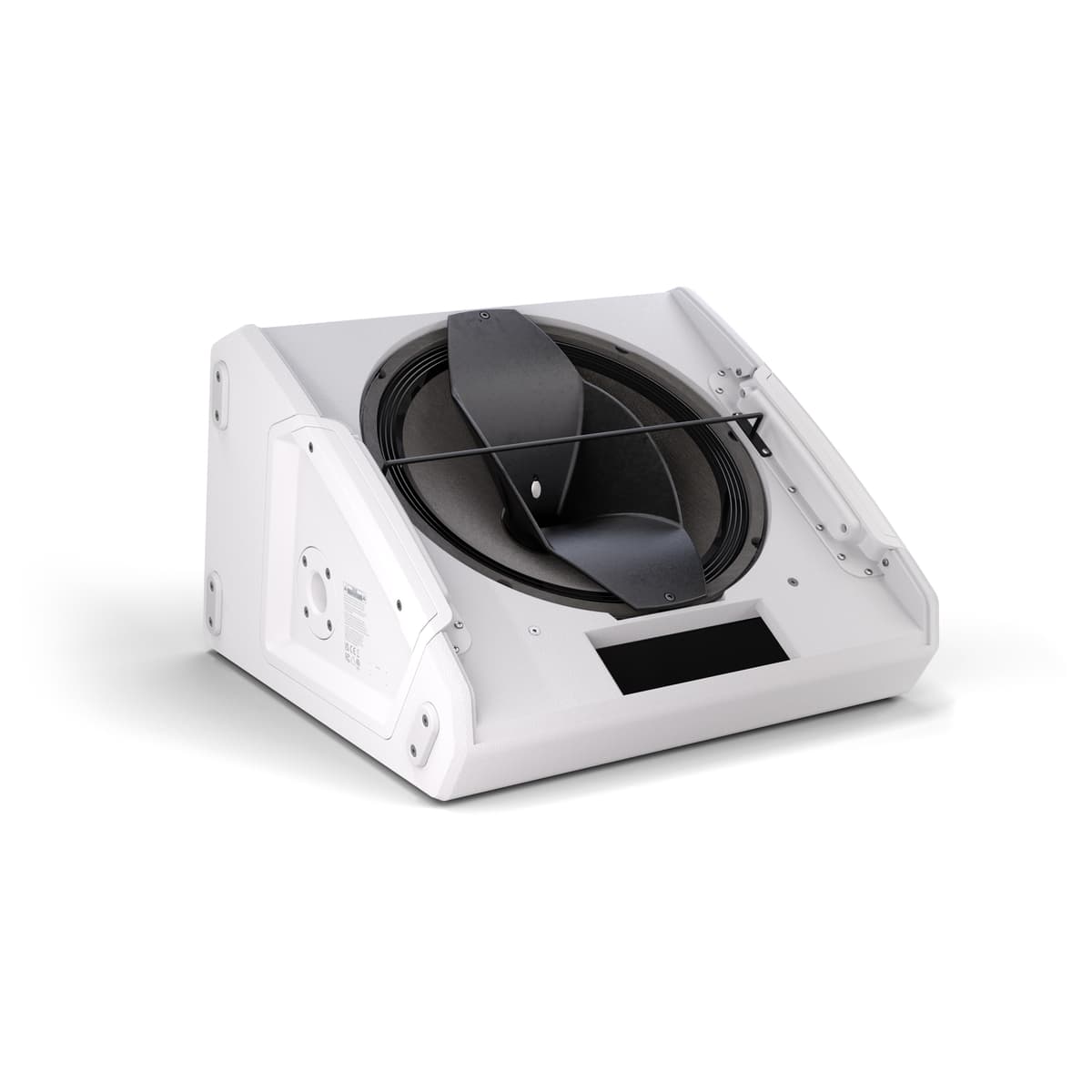

The MON 15 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

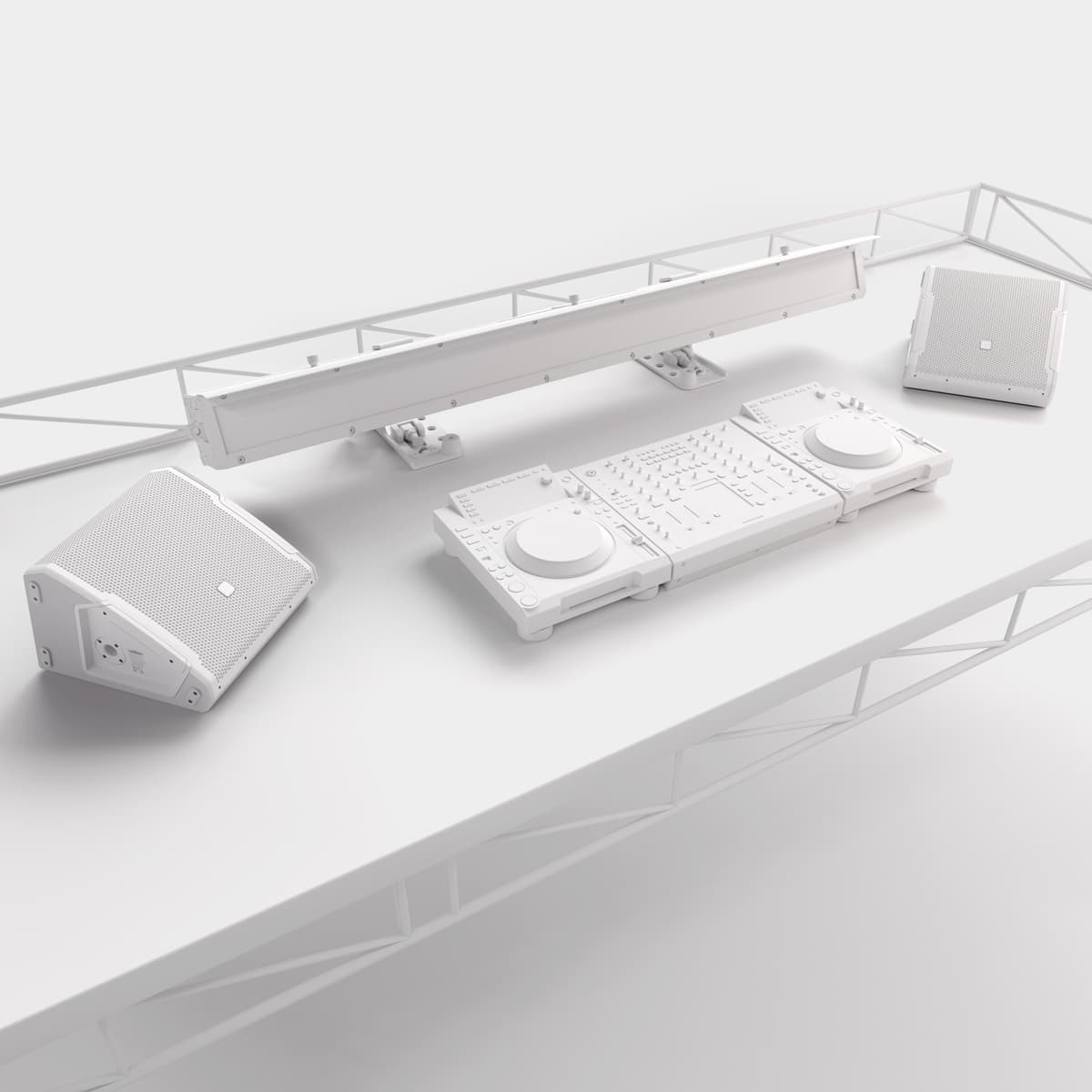

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 W the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

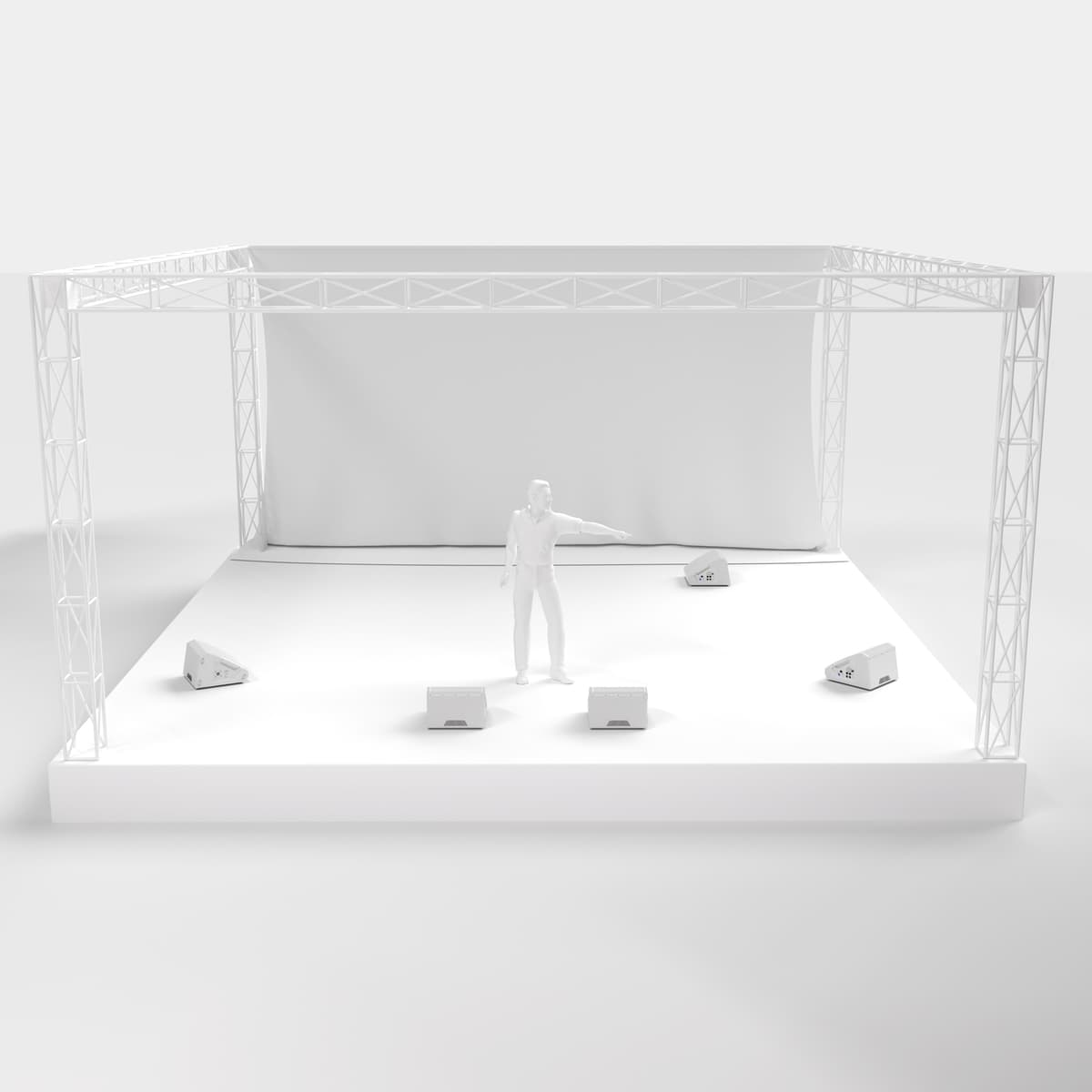

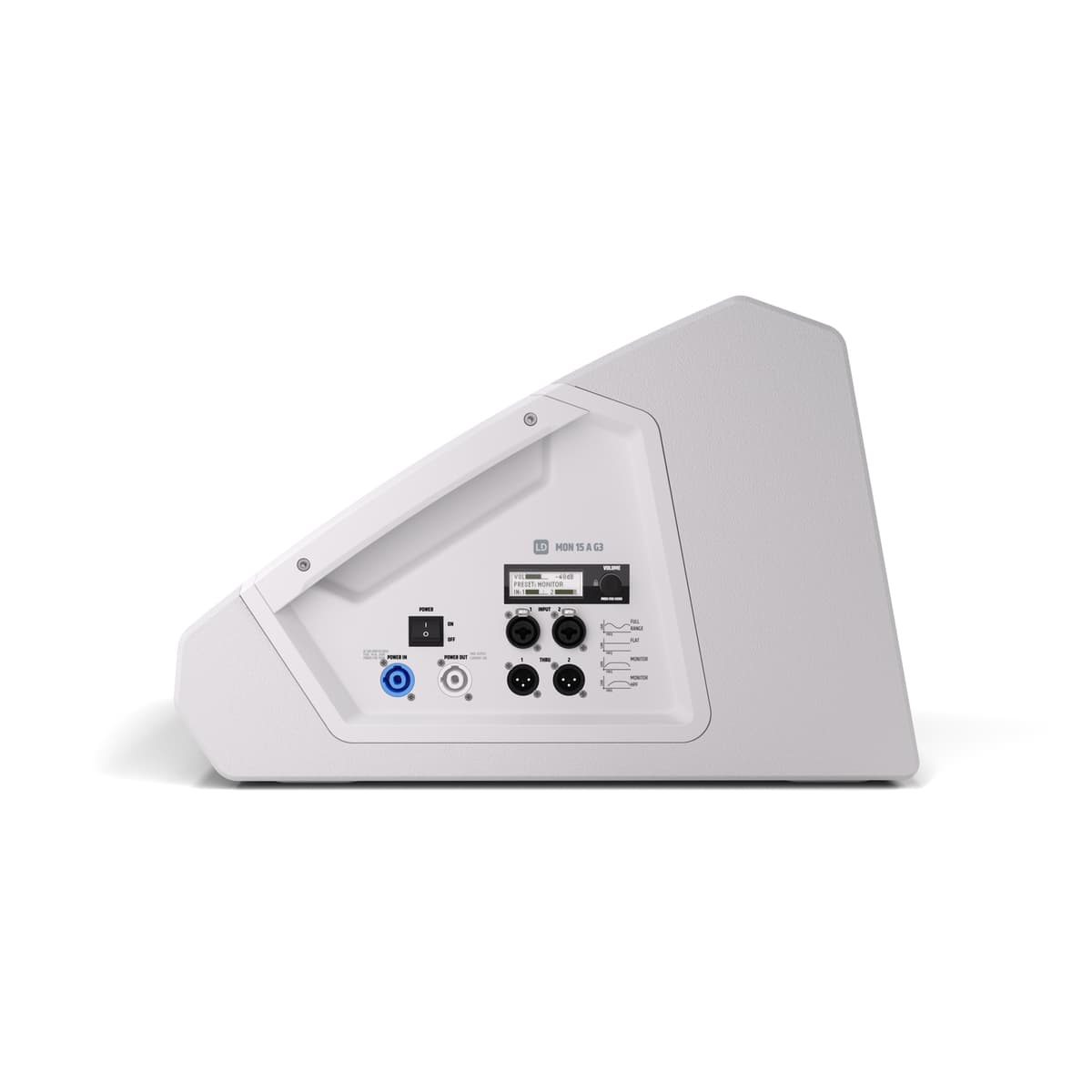

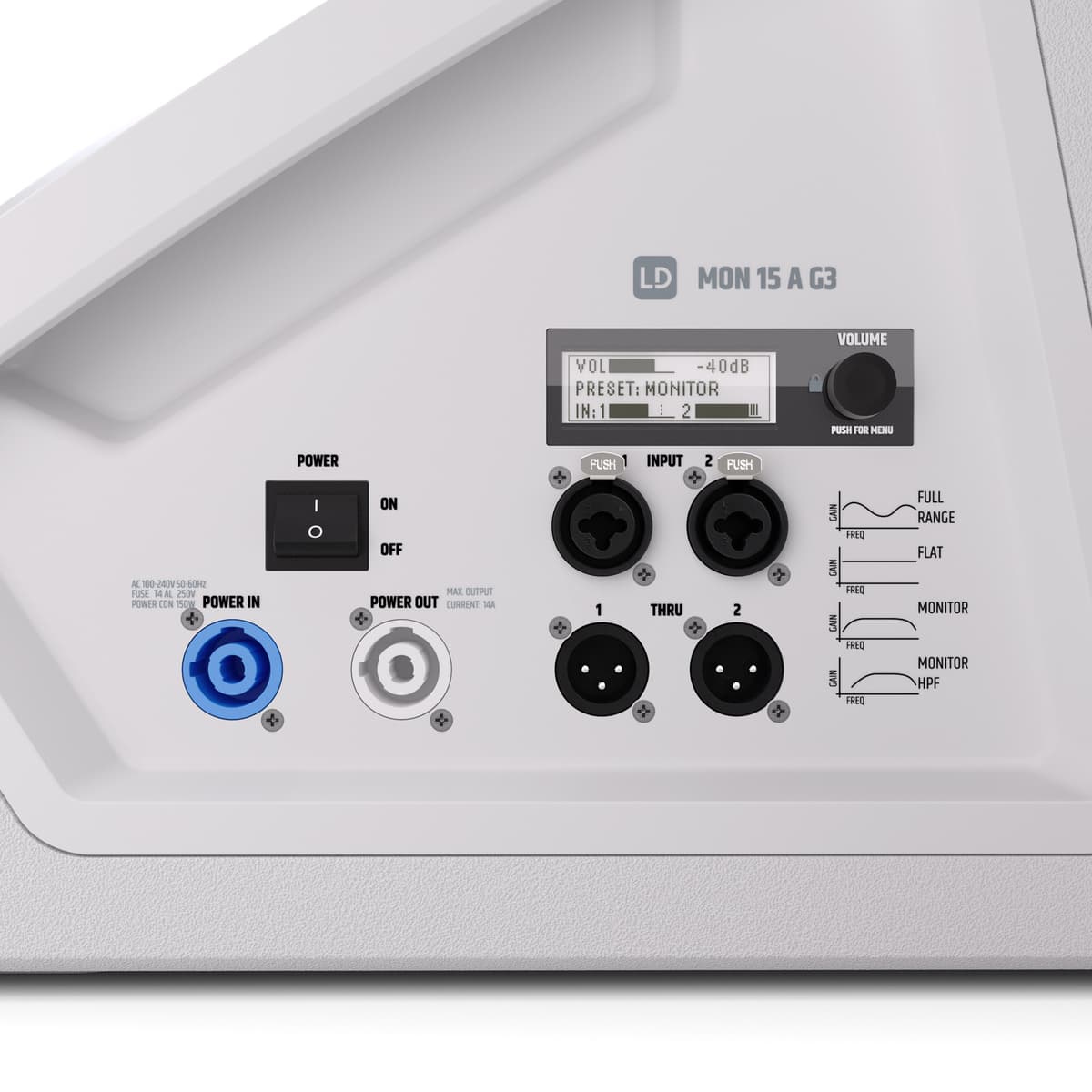

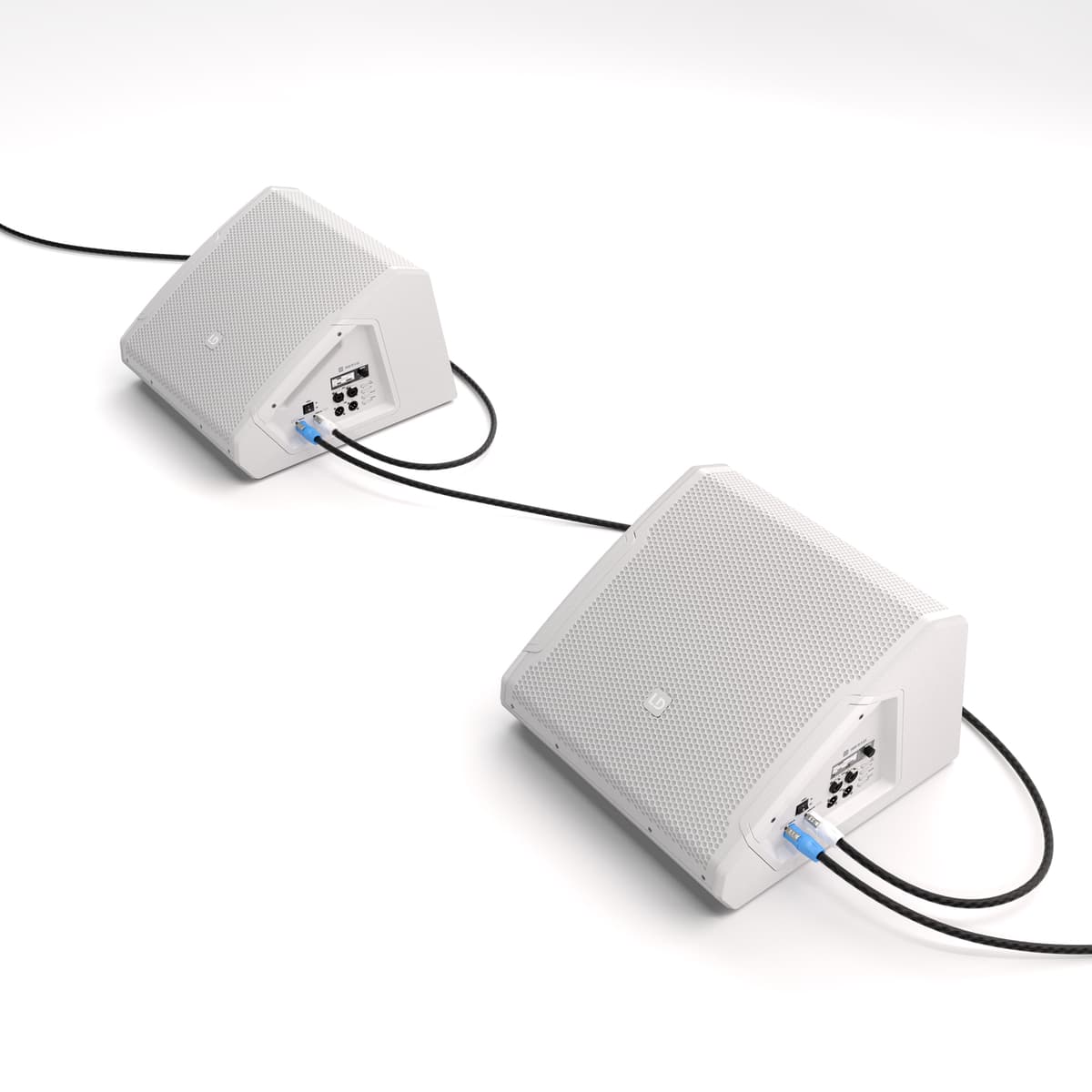

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
Specifications:
Type: Active
Peak output power: 1,200 W
RMS output power: 300 W
Amp class: Class D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): 129 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 122 dB
Frequency response (-3 dB, rel. Avg): 58 - 18,000 Hz
Frequency response (-10 dB, rel. Avg): 48 - 20,000 Hz
Speaker system: 2-way coaxial system
Crossover frequency: 1300 Hz
Beam angle: 50° (hor.) / 90° (vert.)
Monitor angle: 33 °
Number of inputs: 2
Input connector types: 6.3 mm Jack TRS female
Number of outputs: 2
Output connector types: XLR 3-pole female
Colour: White
Number of line inputs: 2
Line-In connector type: 6.3 mm Jack TRS female
Number of line outputs: 2
Line outputs connector type: XLR 3-pole female
Audio processing: 3 band EQ (High, Mid, Low), Delay Line, Notch filter, Presets
Size: 15 "
Outer diameter: 381 mm
Magnet: Ferrite
Voice coil: 1.75 "
Driver size: 1 "
Power supply type: External switched-mode power supply (SMPS)
Rated power: 150 W
Mains connector: Mains socket indoor power in male & powerCON®
Mains fuse: T4AL/250 V
Design: Bass reflex
Number of handles: 2

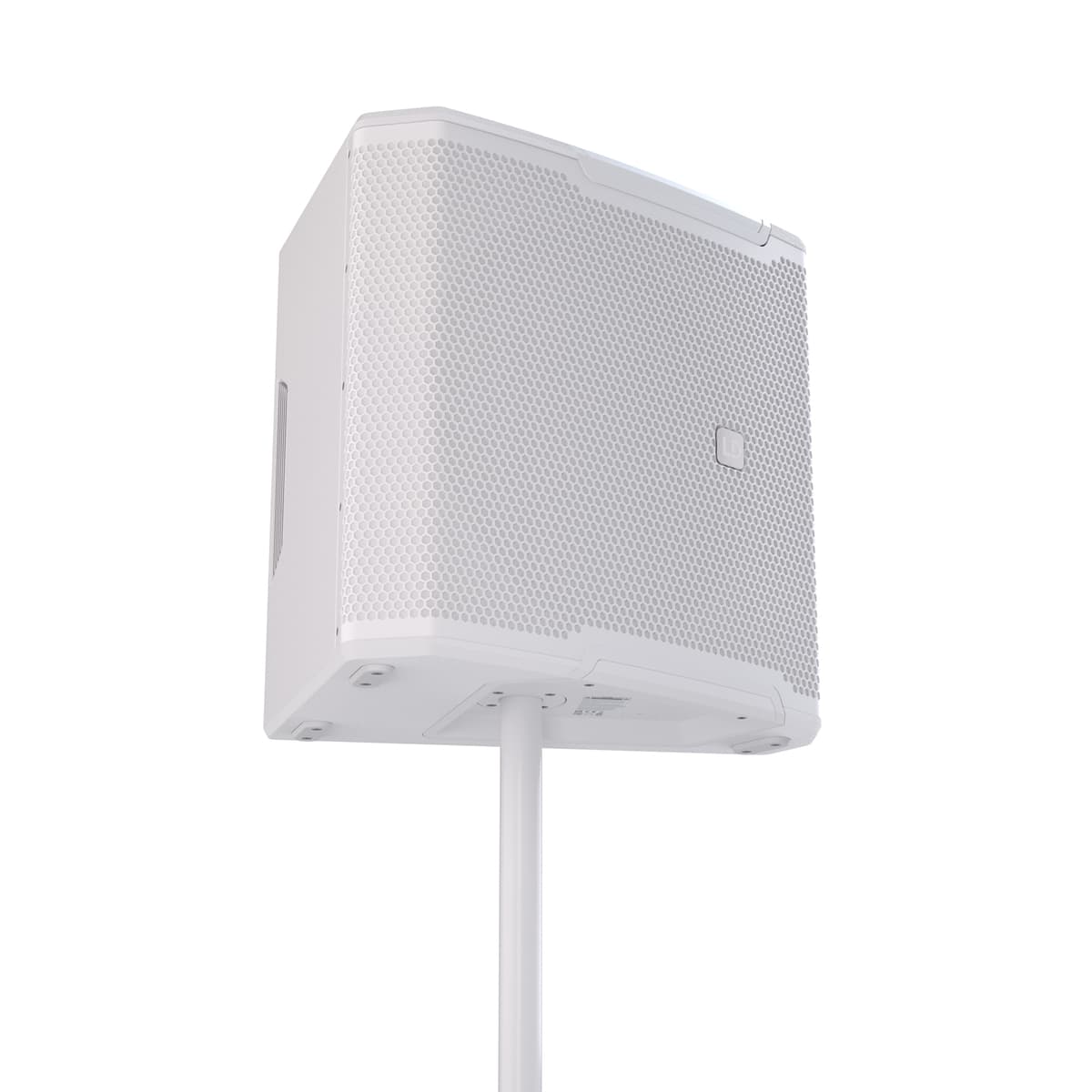

Flange: 36 mm (0°/5°)
Cabinet material: Birch multiplex, Medium-density fibreboard MDF
Material thickness: 15 mm
Front grille material: Aluminium
Ambient temperature: 0 - 40 °C
Maximum air humidity (non-condensing): 80
Width: 505 mm
Height: 340 mm
Depth: 517 mm
Weight: 2,315 kg
Included accessories: Mains cable
