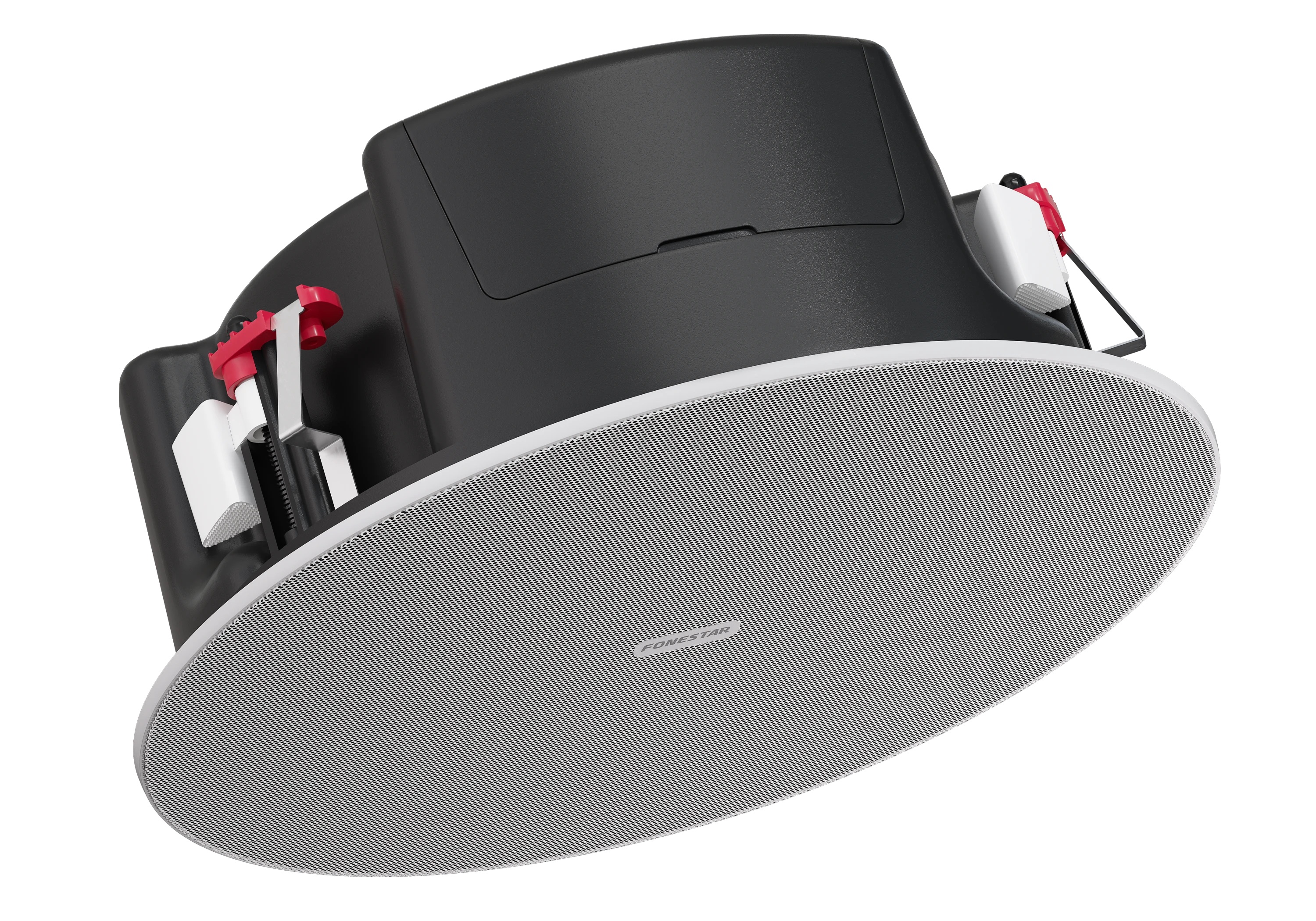

Fonestar SKY-8T-DOME - Ceiling speaker designed for professional installations that require high acoustic performance and reliability in challenging conditions. It offers a power of 30 W RMS and a frequency response of 90 – 20,000 Hz, ensuring clear and balanced sound reproduction. It is equipped with a coaxial speaker, featuring an 8” woofer and a directional 1” tweeter, optimised for even dispersion.
The compact design, with a frameless grille, low profile, and paintable option, allows for discreet integration into any decor. The materials used – UV-resistant ABS and aluminium grille – provide durability in demanding environments, with IP-65 protection against dust and water, having been tested according to standard EN ISO 9227:2006 for corrosion resistance.
Installation is simple and secure, thanks to the anti-fall system, safety cable hook, adjustable brackets, and quick terminals. The SKY-8T-DOME is compatible with both 100 V line systems and low impedance, featuring an easily accessible power selector on the front. This model is the perfect solution for complex audio projects that demand quality, durability, and aesthetic integration.
FEATURES:
Ceiling speaker with 100 V line transformer and low impedance
Domed rear cover for protection
Frameless grille with low profile, made of corrosion-resistant aluminium
Detachable grille, lockable by rotation; logo can be removed and surface painted
Quick connection terminals with high conductivity
Junction box in the rear cover with cable input and output
Anti-fall system for installation assistance
Safety cable hook
Stable mounting brackets with a spiral system
Easy installation in ceilings with limited space
Protection against dust and water
POWER:
30 W RMS
40 W maximum
LOUDSPEAKER:
Coaxial speaker
8” polypropylene woofer
Adjustable 1” tweeter
FREQUENCY RESPONSE:
90–20,000 Hz @ -10 dB
100–20,000 Hz @ -3 dB
IMPEDANCE:
30 W @ 100 V (333 Ω)
15 W @ 100 V / 70 V (666 Ω / 326 Ω)
7.5 W @ 100 V / 70 V (1,333 Ω / 653 Ω)
3.75 W @ 100 V / 70 V (2,666 Ω / 1,306 Ω)
1.87 W @ 70 V (2,620 Ω)
Low impedance: 8 Ω
SENSITIVITY:
90 dB @ 1 W/1 m
SOUND PRESSURE:
108 dB continuous @ max W/1 m
109 dB peak @ max W/1 m
COVERAGE ANGLE:
90° @ 1 kHz (-6 dB)
PROTECTIONS:
IP-65 according to IEC 60529
Salt spray test according to EN ISO 9227:2006
MATERIALS:
UV-resistant ABS
Liquid painted aluminium grille
CONNECTORS:
Quick terminals with high conductivity
For cable section of 0.4 ~ 4 mm²
Junction box with entries and exits in the rear cover
