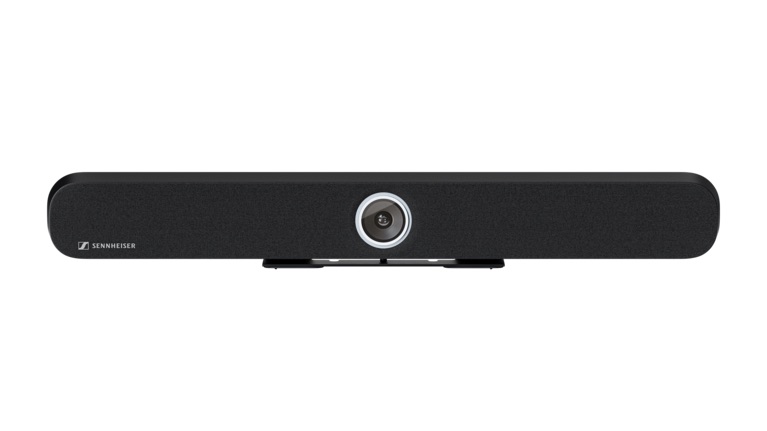

Sennheiser TeamConnect Bar M

Sennheiser TeamConnect Bar M – All-in-one USB conference/video bar for meeting rooms and medium-sized collaboration spaces. It features a 4K ultra HD video camera, 6 microphones, and 4 integrated speakers to deliver Sennheiser audio quality at every meeting.

• Plug and Play device: Quick start via USB cable
• Beamforming technology: Smooth movement and transitions without interruptions between speakers
• Dante connection for adding extension microphones and/or a secondary USB external camera
• Integrated video camera: 4K Ultra HD camera equipped with advanced AI features
• Full-Range stereo speakers: Natural voice, intelligibility in speech
• Built-in DSP automatically optimises room acoustics
• Multiple mounting options:
  • Wall mounting
  • VESA mounting
  • Tabletop or freestanding
• Autoframing and Person Tiling: Features to clearly see all people in the room
• Wireless control via “Sennheiser Control Cockpit”
• Certifications in progress for third-party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
• Encrypted control communications and password protection by default for secure content transmission
• Field of view: 115° horizontal, 120° diagonal
• Connections:
  • 2 HDMI 2.0 outputs
  • 1 x USB C 3.1
  • 1 x USB A 3.1
  • 1 x RJ45 for Ethernet: 1000/100/10 M (use only CAAT5e (F/STP) or better network cables)
• TDH/N < 5%
• Frequency response: 100 Hz – 18 kHz
• Dynamic range: 69 dB (A)
• Max SPL: 84 dB
• Connection: wired
• Battery specifications: 2 x AAA batteries
• WIFI transmission: SISO (Single-In, Single-Out)
• Camera technology: ePTZ
• Camera zoom: 1.5 x digital (MS Teams certified), digital 5x (optional)
• Camera resolution: UHD 2160p (4K), 960x480, 848x480, 640x480, 640x360, 432x243
• Bluetooth connection: version 5.1
• Bluetooth transmission frequency: 2405 MHz – 2480 MHz
• Dimensions: 95 x 71, Weight of 2.5 kg
• Supported by Windows 10 or later, MacOS 13 or later, Android 11 or later
• In the package:
  • Mounting plate + drainage marking
  • Power E096
  • RC TC bar
  • HDMI cable
  • Magnetic lens cover
  • Mounting screws
  • 2 x 1.5 V AAA batteries
  • USB-C 3.1 cable
  • User manual
