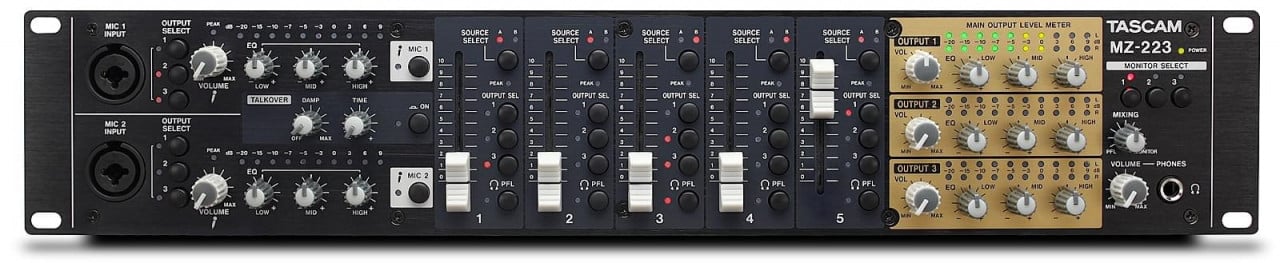

Tascam MZ-223

TASCAM MZ-223 is a compact multi-zone mixer, ideal for hotels, restaurants, conference rooms, and schools.

MIC Inputs 1–2 (Balanced)

• Connection: XLR 3-31 / 1/4" TRS combo jack
• MAX Level: –65dBu
• MIN Level: –30dBu
• Input Impedance: 33kΩ

LINE Inputs (Unbalanced)

• Connection: RCA Pin jack
• Nominal Input Level: –10dBV
• Maximum Input Level: 10dBV
• Input Impedance: 22kΩ

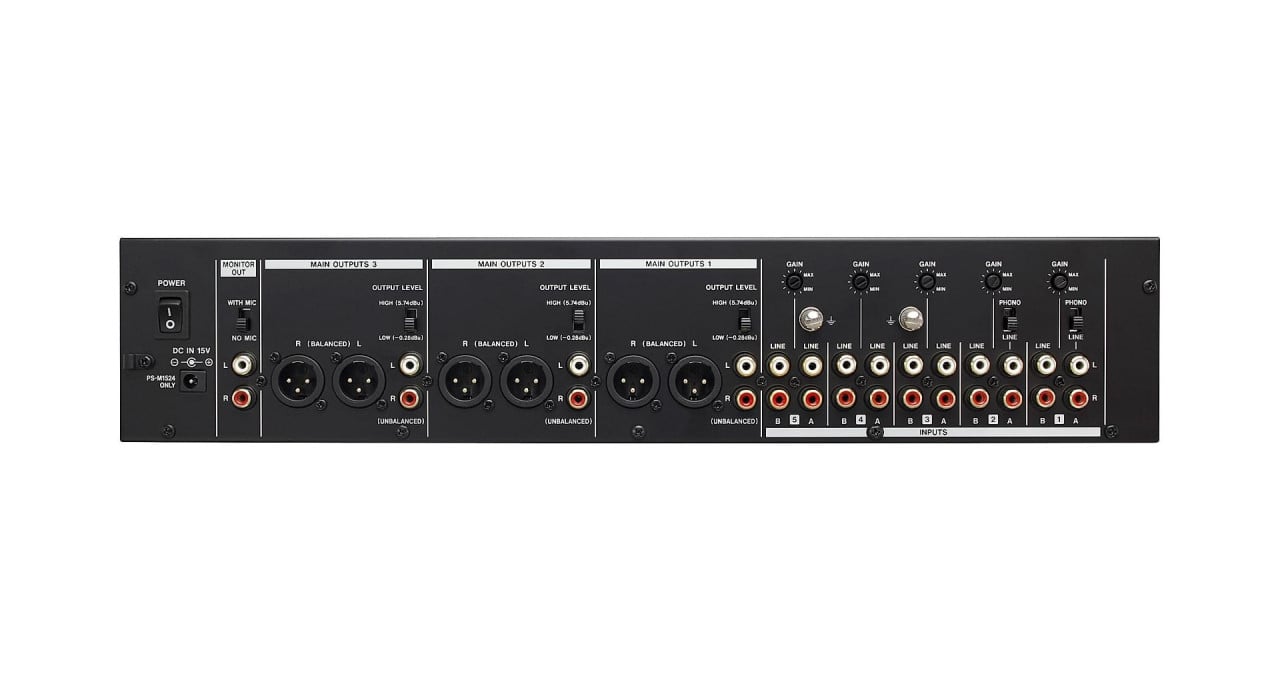

Audio Outputs

Main Outputs (Unbalanced)

• Connection: RCA Pin jack
• Nominal Output Level: –10dBV
• Maximum Output Level: 6dBV
• Output Impedance: 200Ω

Main Outputs (Balanced)

• Connection: XLR 3-31
• Nominal Output Level: 4dBu
• Maximum Output Level: 24dBu
• Output Impedance: 200Ω

Monitor Output

• Connection: RCA Pin jack
• Nominal Output Level: –16 dBV
• Maximum Output Level: 0dBV
• Output Impedance: 200Ω

Headphones

• Connection: 1/4" Stereo phone jack
• Maximum Output Level: 50mW + 50mW (at 32Ω)
• Power Supply: AC Adapter
• Input Voltage: AC 100 - 240V
• Output Voltage: DC 15V
• Output Current: 2.4A
• Power Consumption: 35W
• Dimensions: 482 × 88 × 93.2 mm
• Weight: 2.5 kg
• Frequency Response: 20Hz - 20kHz
• Distortion: 0.03% or less
• S/N Ratio: 80dB
• Crosstalk: 65dB
