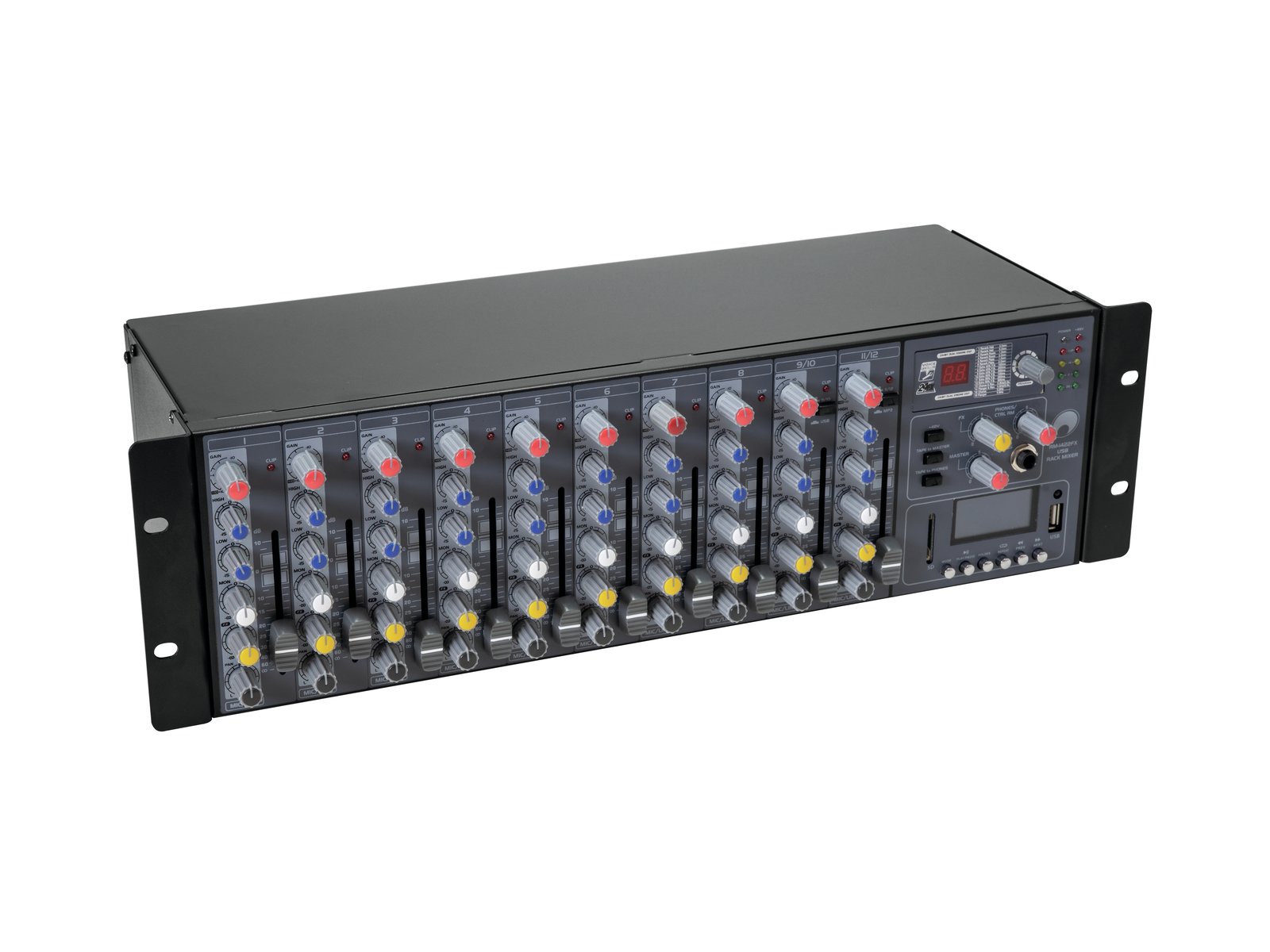

Compact multifunctional Whether used as a small live mixer, in recording studios, or for permanent installations, the RM-1422FX is the right answer for your 19" rack. Along with a complete audio mixer, you will get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recording and playback with a computer in the smallest space.
PRO 19" mixer with 12 channels, DSP FX unit, and MP3 player
- The built-in USB audio interface allows recording and playback of digital audio files with a computer (PC and Mac)
- 24-bit DSP FX unit with 16 different effects, such as reverb, echo, and flanger
- 6 mono input channels with gain control, 2-band EQ, pan control, and channel fader
- 2 stereo input channels with 2-way EQ, balance control, and channel fader
- 8 channel inserts
- Tape in and out
- Separate outputs for the main mix and control room
- 2 Aux Send outputs
- Adjustable headphone output
- +48V phantom power, centrally switchable
- 4-digit stereo LED display
- MP3 player with SD card slot, USB input, LCD, and IR remote control
- (19") 48.3 cm rack installation 3 U
Package contents
- 1 x mixer, 1 x user manual, 1 x power cable, 1 x remote control, 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 27 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) connector, power cable mounting version with safety plug (supplied) |
| Device fuse: | 5 x 20 mm, T 0.5 A replaceable fuse |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >89 dB |
| THD: | <0.05 % at 1 kHz |
| DSP: | 24-bit digital signal processor with 16 effects |
| Control: | IR remote control |
| Cassette player: | USB + SD, |
| Display type: | Monochrome LCD screen
Monochrome LED display with 2 digits and 7 segments |
| Control elements: | Phantom power switch, audio player, encoder |
| Status LEDs: | Power, master level meter, clip, phantom power |
| Connections: | Input: microphone via XLR 8 x 3-pin
Input: line via 12 x 6.3 mm jack socket mounting version (mono).
Input: 2 track via 1 x RCA stereo
Input: AUX return via mounting version with 2 x 6.3 mm jack sockets (mono).
Output: AUX sends via mounting version with 2 x 6.3 mm jack sockets (stereo)
Output: 2 track via 1 x RCA stereo
Output: master via 2 x 3-pin XLR
Output: headphone via mounting version with 1 x 6.3 mm jack socket (stereo).
Output: control room via 2 x 6.3 mm sockets (unbalanced)
Insert: mounting version with 8 x 6.3 mm jack sockets (stereo).
Link: line via 1 x USB B (F) mounting version. |
| Channels: | Input channel: 8 x mono via XLR or jack, channel control via fader, tone control with 2-band EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, pan control,
Input channel: 1 x stereo with Line-USB switch via socket, channel control via fader, tone control with 2-band EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balance control,
Input channel: 1 x stereo with Line-player switch via socket, channel control via rotary selector, tone control with 2-band EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balance control,
Master output: 1 x stereo via XLR, channel control via rotary selector
Headphone output: 1 x stereo via socket, channel control via rotary selector |
| USB port: | 1 x Type A; 1 x USB 1.1, Type B |
| Material: | Metal |
| Colour: | Black |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48.3 cm
Depth: 18 cm
Height: 13.35 cm |
| Weight: | 4.07 kg |
| Remote control |
| Battery: | 1 x 3.0 V CR2025 lithium manganese button cell built-in |
