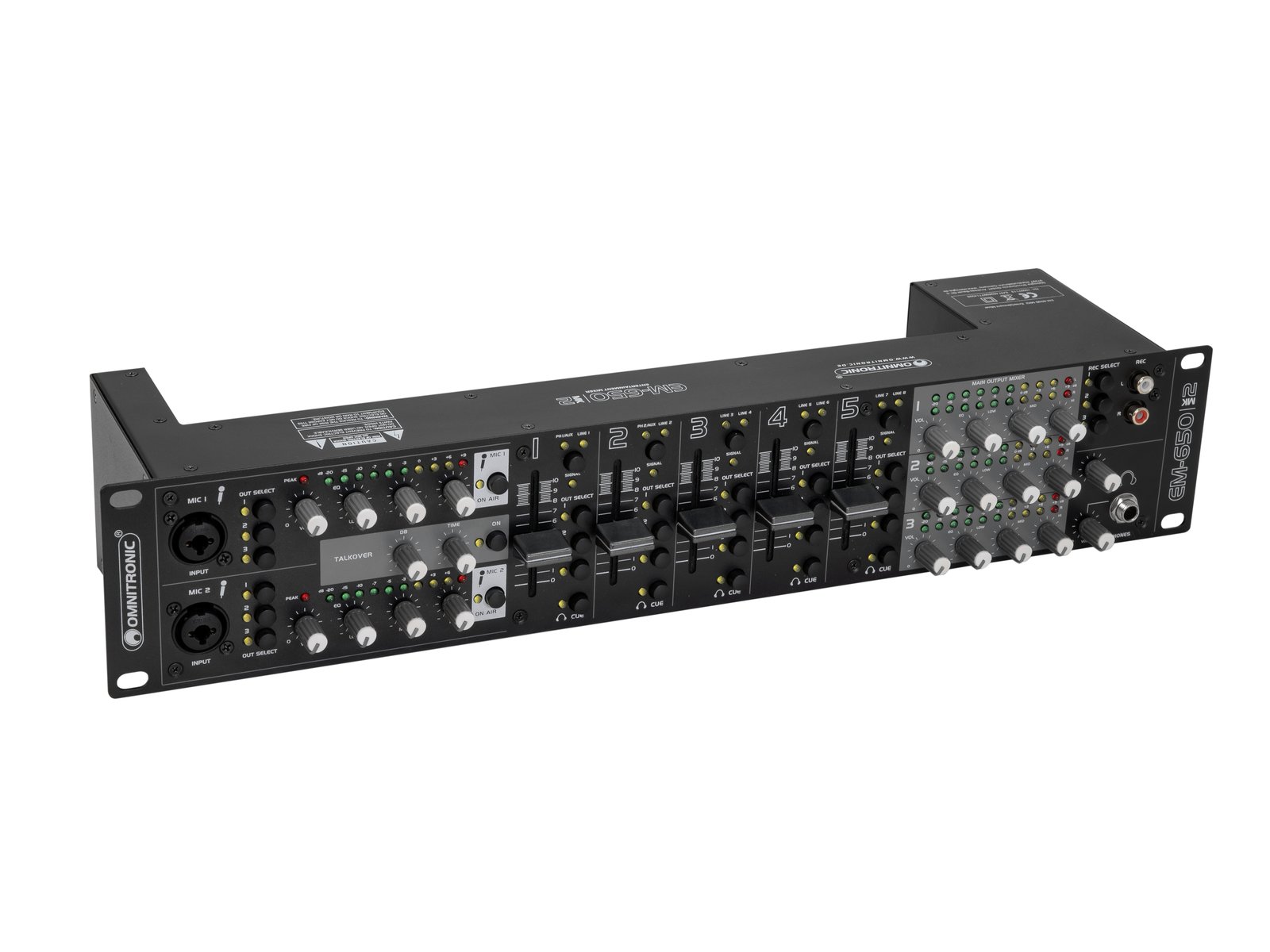

Multifunctional 5+2 channel mixer with 3 zones, black
- 5 input channels with built-in gain controls on the rear panel, signal LED and smooth channel faders
- 3 adjustable master outputs with 3-band equaliser and 10-segment stereo level LED indicator
- (19") 48.3 cm rack mount 2 U
| Power supply: | 230 V AC, 50 Hz |
| Protection class: | Class II |
| Power connection: | Power cable with Euro plug (supplied) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >60 dB line
>70 dB phono |
| THD: | Line/phono <0.02 % at 1 kHz |
| Gain: | Microphone 52 dB
Line 17 dB
Phono 53 dB |
| Case colour: | Black |
| Zone output: | 3 adjustable zones |
| Control elements: | Power switch, talkback, source selector |
| Status LED: | Signal, channel level meter, master level meter, peak, channel source; CUE, Talkover, ON AIR, Routing |
| Connections: | Input: microphone via 2 x 3-pin XLR/jack 6.35 mm (F) (mounting version)
Input: line/phono via 2 x RCA stereo
Input: line via 8 x RCA stereo
Output: master via 3 x 3-pin XLR
Output: master via 3 x RCA stereo
Output: rec. via 2 x RCA stereo
Output: headphones via 1 x 6.3 mm (bal.) jack |
| Channels: | Input channel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, 3-band tone control EQ, routing bus switch, gain control, source selector, CUE switch
Input channel: 3 x stereo with line switch via RCA, channel control via fader, master bus routing switch, gain control, source selector, CUE switch
Microphone channel: 2 x mono via combo jack (XLR/jack), channel control via rotary selector, ON AIR switch, main routing switch, Talkover switch,
Master output: 3 x stereo via XLR or RCA, channel control via rotary selector, 3-band tone control EQ
Rec. output: 1 x stereo via RCA, master bus routing switch,
Headphones output: 1 x stereo via jack, channel control via rotary selector, Cue-mix function, |
| Case design: | (19") 48.3 cm rack mount 2 U |
| Dimensions: | Width: 48.3 cm
Depth: 14.8 cm
Height: 8.9 cm |
| Weight: | 3.00 kg |
