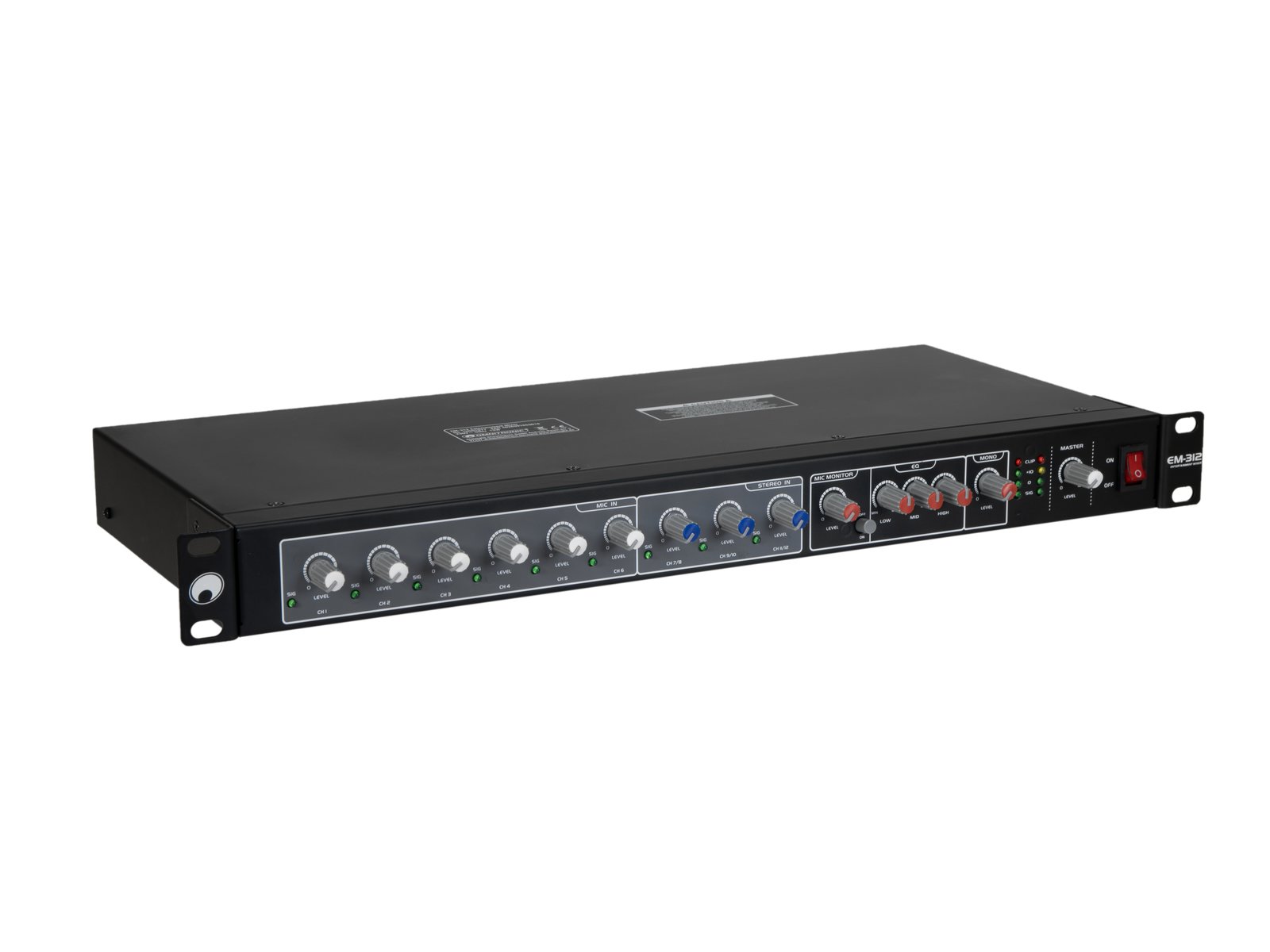

EM-312 is a slim 12-channel rack-mounted mixer with 6 combo mic/line inputs and 6 additional line inputs. It features XLR outputs, a mono 6.3 mm output, a stereo RCA recording output, and a 6.3 mm monitoring output for the microphone section. EM-312 offers separate volume controls for all inputs, in addition to a volume control for the mono output and a main volume control. It has a 3-band equaliser and an adjustable priority function for microphone announcements through channel 1.
Microphone line mixer, 6 mono channels + 3 stereo channels
- 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be activated for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced XLR stereo outputs and RCA outputs
- Adjustable monitor output
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo level meter LED, and 3-band equaliser
- Additional screw terminals for 24 V DC power supply
- (19") 48.3 cm rack mount 1 U
Package contents
- 1 x device, 1 x power cable, 4 x feet, 1 x user manual
| Power supply: | 230 V AC, 50 Hz
Or
24 V DC |
| Power consumption: | 12 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) connector, cable mount version with safety plug (supplied)
Mains input via screw terminal |
| Frequency range: | 20 - 22000 Hz |
| S/N ratio: | >103 dB |
| THD: | <0.03 % at 1 kHz |
| Phantom power: | 18 V DC or 21 V DC |
| Impedance: | Input: mic/line 1.4 kOhm
Input: line 10 kOhm
Output: 120 Ohm |
| Control elements: | Switch |
| Status LED: | Power, signal, master level meter, clip |
| Connections: | Input: microphone/line via 3-pin XLR combo jack/6.35 mm (F) (mounting version)
Input: line via 3 x RCA stereo
Output: master via 2 x 3-pin XLR
Output: mono via mounting version with 1 x 6.3 mm jack (mono).
Output: rec. via 1 x RCA stereo |
| Channels: | Input channel: 6 x mono with Mic-line switch via combo jack (XLR/jack), channel control via rotary selector, 3-band EQ tone control 80Hz/2.5kHz/12kHz
Input channel: 3 x stereo via RCA, channel control via rotary selector, 3-band EQ tone control 80Hz/2.5kHz/12kHz
Master output: 1 x stereo via XLR, channel control via rotary selector
Master output: 1 x mono via jack, channel control via rotary selector |
| Max. level: | Input: Microphone -19 dBu
Input: line +21 dBu
Output: +21 dBu |
| Housing design: | (19") 48.3 cm rack mount 1 U |
| Dimensions: | Width: 48.3 cm
Depth: 23 cm
Height: 4.45 cm |
| Weight: | 3.04 kg |
