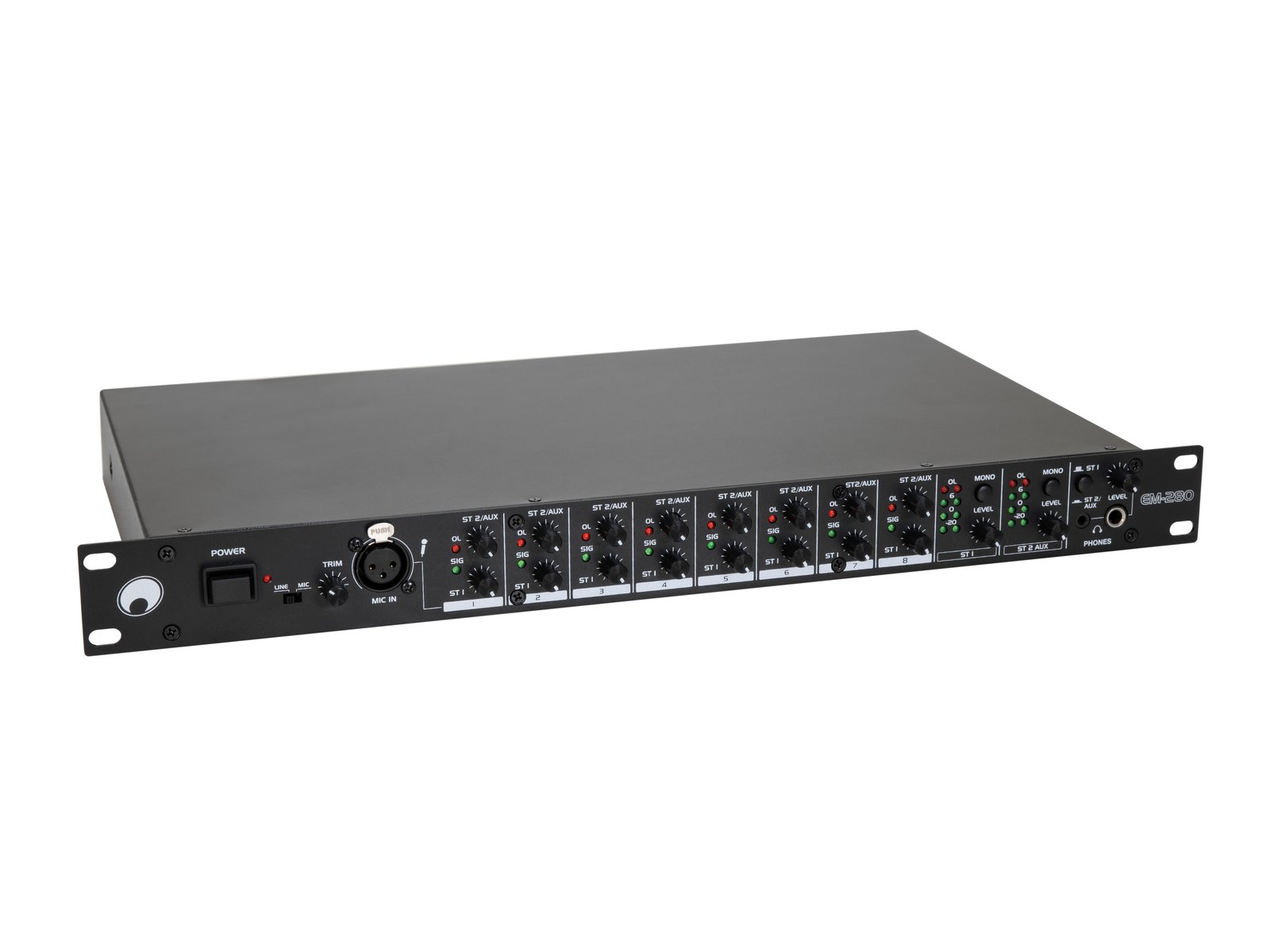

Stereo mixer with 8 channels and 2 adjustable zone outputs, 19"
- 1 additional XLR microphone input on channel 1
- Nominal input level switchable between +4dBu and -10 dBV
- Signal and overload indicators on each channel
- 4-digit stereo level meter for each bus output
- (19") 48.3 cm rack mount 1 U
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Power cable with safety plug (supplied) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >92 dB line
Microphone >65 dB |
| THD: | Line <0.9 % at 1 kHz |
| Gain: | Microphone/line 18 dB |
| Case colour: | Black |
| Control elements: | Groundlift selector |
| Status LED: | Power, master level meter, signal, clip |
| Connections: | Input: line via 8 x 6.3 mm jack (balanced)
Input: microphone via 1 x 3-pin XLR
Output: master via 2 x 6.3 mm plugs (balanced)
Output: AUX via 1 x 6.3 mm plug (balanced)
Output: headphones via mounting version with 1 x 6.3 mm jack (stereo).
Output: headphones via mounting version with 1 x 3.5 mm jack (stereo). |
| Channels: | Input channel: 1 x mono + stereo with Mic-line switch via XLR or jack, channel control via rotary selector, pre-post switch, gain control,
Input channel: 7 x stereo via jack, channel control via rotary selector, pre-post switch,
Main bus input: 2 x stereo via jack, main bus routing switch,
Master output: 2 x mono + stereo via XLR or RCA, channel control via rotary selector, stereo/mono switch,
Master bus output: 1 x stereo via plug
Headphone output: 1 x stereo via plug, channel control via rotary selector, bus routing switch, |
| Case design: | (19") 48.3 cm rack mount 1 U |
| Dimensions: | Width: 48.3 cm
Depth: 28.0 cm
Height: 4.4 cm |
| Weight: | 3.00 kg |
