The OMNITRONIC entertainment mixer series is designed for the modern entertainment industry, particularly hotels, bars, or theme parks, which require very high standards of quality and features for sound devices. The OMNITRONIC EM series is specifically designed for this industry and offers the highest flexibility and quality in very compact mixers. The EM series provides a variety of connection possibilities and also impresses with an ergonomic design and ease of use. The special design of the casing and state-of-the-art construction are additional reasons that make the EM series the first choice for installers.

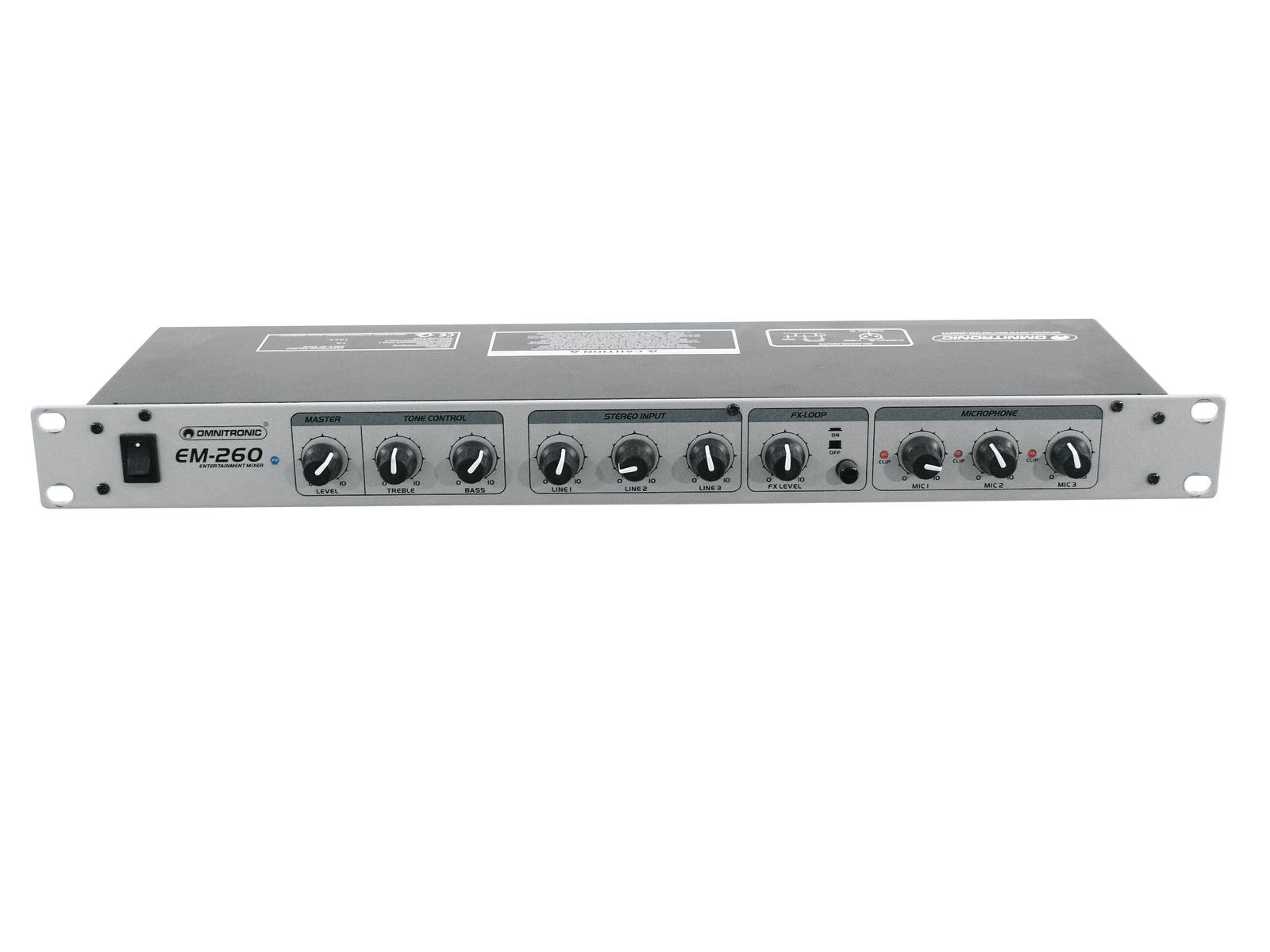

Microphone/mixer with 6 channels
- 6 inputs (3 x microphone/line and 3 x line) for mixing to 1 stereo output
- Ideal, for example, for karaoke when microphones need to be mixed with CDs
- 3 mono microphone/line input channels (XLR, balanced), switchable
- 3 stereo line input channels (RCA)
- LED clip for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Master stereo output (6.3 mm jack) with 2-band equalizer (high and low) and level control
- Stereo recording output (RCA)
- (19") 48.3 cm rack mount 1 U
Package contents
- 1 x device, 1 x power cable, 1 x user manual
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) connector, cable mount version with safety plug (supplied) |
| Frequency range: | 20 - 20000 Hz |
| Phantom power: | 12 V DC |
| Casing colour: | Silver |
| Control elements: | Phantom power switch, power switch, FX send/return control |
| Status LED: | Power, clip |
| Connections: | Input: microphone/line via 3 x 3-pin XLR
Input: line via 3 x RCA stereo
Input: FX via 2 x 6.3 mm jack (mono) mounting version.
Output: rec. via 1 x RCA stereo
Output: master via 2 x 6.3 mm jack (mono) mounting version.
Output: FX via 1 x 6.3 mm jack (stereo) mounting version. |
| Channels: | Input channel: 3 x stereo via RCA, channel control via rotary selector, 2-band EQ tone control 100Hz/10kHz
Microphone channel: 3 x mono with Mic-line switch via XLR, channel control via rotary selector, 1 Send/AUX, FX routing switch,
Master output: 1 x stereo via jack, channel control via rotary selector |
| Max. level: | Input: Microphone +14 dB
Input: line +24 dB |
| Material: | Metal |
| Casing design: | (19") 48.3 cm rack mount 1 U |
| Dimensions: | Width: 48.3 cm
Depth: 12.3 cm
Height: 4.45 cm |
| Weight: | 2.20 kg |
