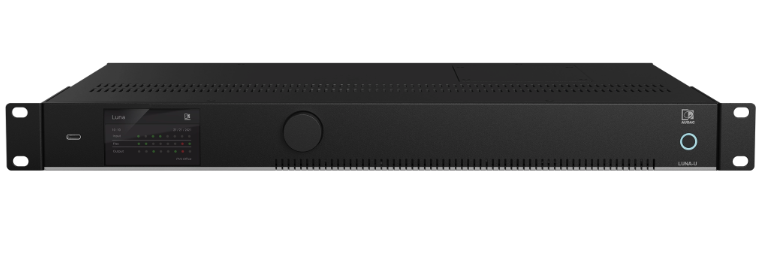

Audac LUNA-U is the latest generation audio matrix processor that offers extremely flexible and scalable system solutions for audio distribution, from medium-sized spaces to the largest enterprise halls. The internal structure provides unprecedented flexibility and a vast number of possibilities for an audio distribution system. Powerful DSPs (dual SHARC) combined with 32-bit ADC and DAC converters allow for the most extensive signal processing with superb audio quality.
It includes 12 microphone inputs and 8 line-level outputs. In addition, up to 32 channels of Dante™/AES67 I/O are available with a single Ethernet port, allowing system integration with any Dante™/AES67 compatible audio I/O unit over IP.
The flexible architecture allows for completely flexible mapping of the signal path to any of the 32 mono zones or 16 stereo zones, while the powerful DSP resources provide unique processing features across all input channels, output channels, and zones. Dante-compatible paging microphones and smart wall panels make the complete system solution even more flexible and unique.
Inputs
12 x Mic / Line
12 GPIO Inputs
USB Inputs (Type C) front/rear (file transfer)
Message memory
Outputs
8 x Line Outputs
12 GPIO Outputs
NO and NC Fault Relay Contact
Dante™/AES67 Network Audio I/O (up to 32x32 channels with SL-NAC8)
Zones
32 Mono
16 Stereo
Configurable Settings
ALC (Automatic Level Control)
Integrated Scheduler
Phantom Power for Inputs +48 V DC
WaveTune (Input & Zone) EQ with 7 Bands
WavePreset (Output) 12xBiquad +LP+HP
Delay (Output) 2000 ms (Adjustable)
Mono / Stereo Zones (configurable)
Mixing
Talkover
Paging
Priority x4/Zone
Integrated Generator: Sine or Pnoise or Wnoise
Antifază, bass and treble, input volume, ...etc.
DSP Processor
Dual core SHARC
ARM Linux Core
Audac Touch™ Configuration
Controls and Indicators

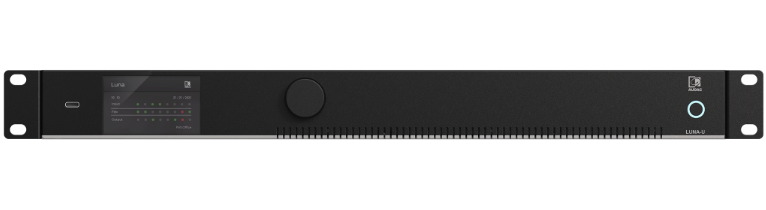

Front Panel 2.8" LCD Screen with Rotary Encoder

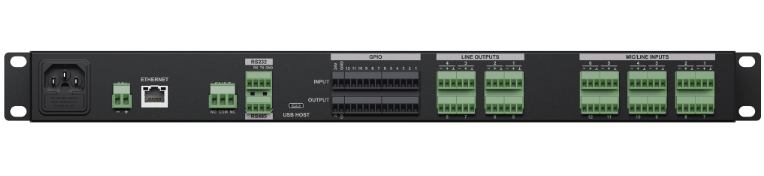

Interface Ports
RS-232
RS-485
Gigabit Ethernet (Primary RJ45)
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz - 24 V DC
