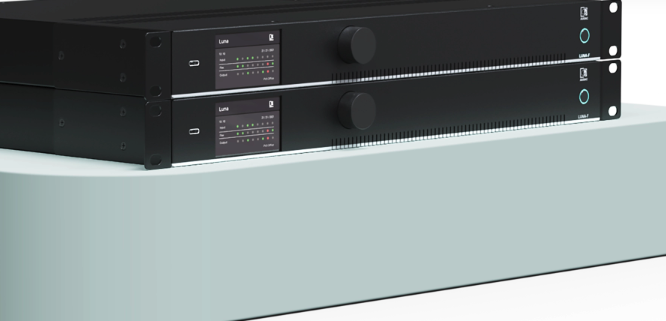

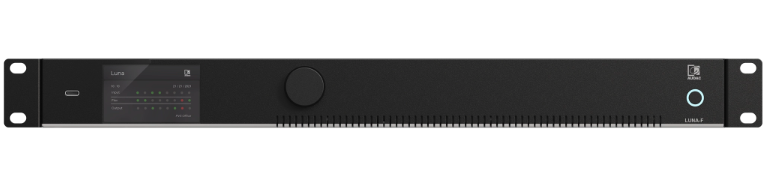

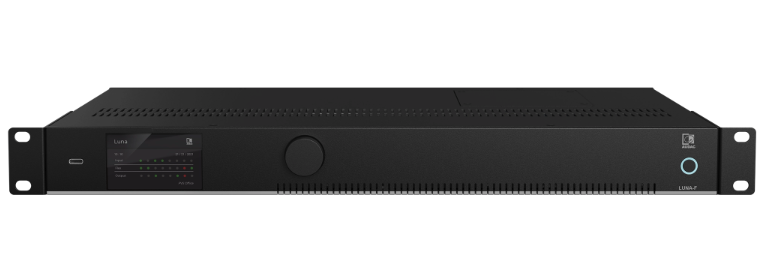

Audac LUNA-F - is the latest generation audio matrix processor, offering extremely flexible and scalable system solutions for audio distribution, from medium-sized rooms to the largest enterprise spaces. The internal structure provides unprecedented flexibility and a vast number of possibilities for an audio distribution system. Powerful DSPs (dual SHARC) combined with 32-bit ADC and DAC converters allow for the most extensive signal processing with superb audio quality.
It includes 8 microphone/line inputs, 8 flexible channels that can be switched between 8 microphone/line inputs or line-level output, and 8 line-level outputs. Additionally, up to 64x64 Dante™/AES67 I/O channels are available with primary and secondary ethernet ports, allowing system integration with any Dante™/AES67 compatible audio I/O units with redundancy.
The flexible architecture allows for completely flexible mapping of the signal path to any of the 32 mono zones or 16 stereo zones, while the powerful DSP resources provide unique processing features across all input channels, output channels, and zones. Dante-compatible paging microphones and smart wall panels make the complete system solution even more flexible and unique.

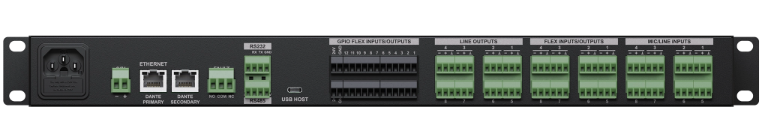

Inputs
8 Mic / Line inputs
8 Flex inputs/outputs
24 GPIO inputs (flex)
USB inputs (type C) front (file transfer) & rear (file transfer)
Message memory for announcements
Outputs
8 Line outputs
24 GPIO outputs (flexible)
NO and NC emergency relay contact
Network audio I/O 16x16 Dante™/AES67 I/O channels (up to 64x64 channels with SL-NAC8)
