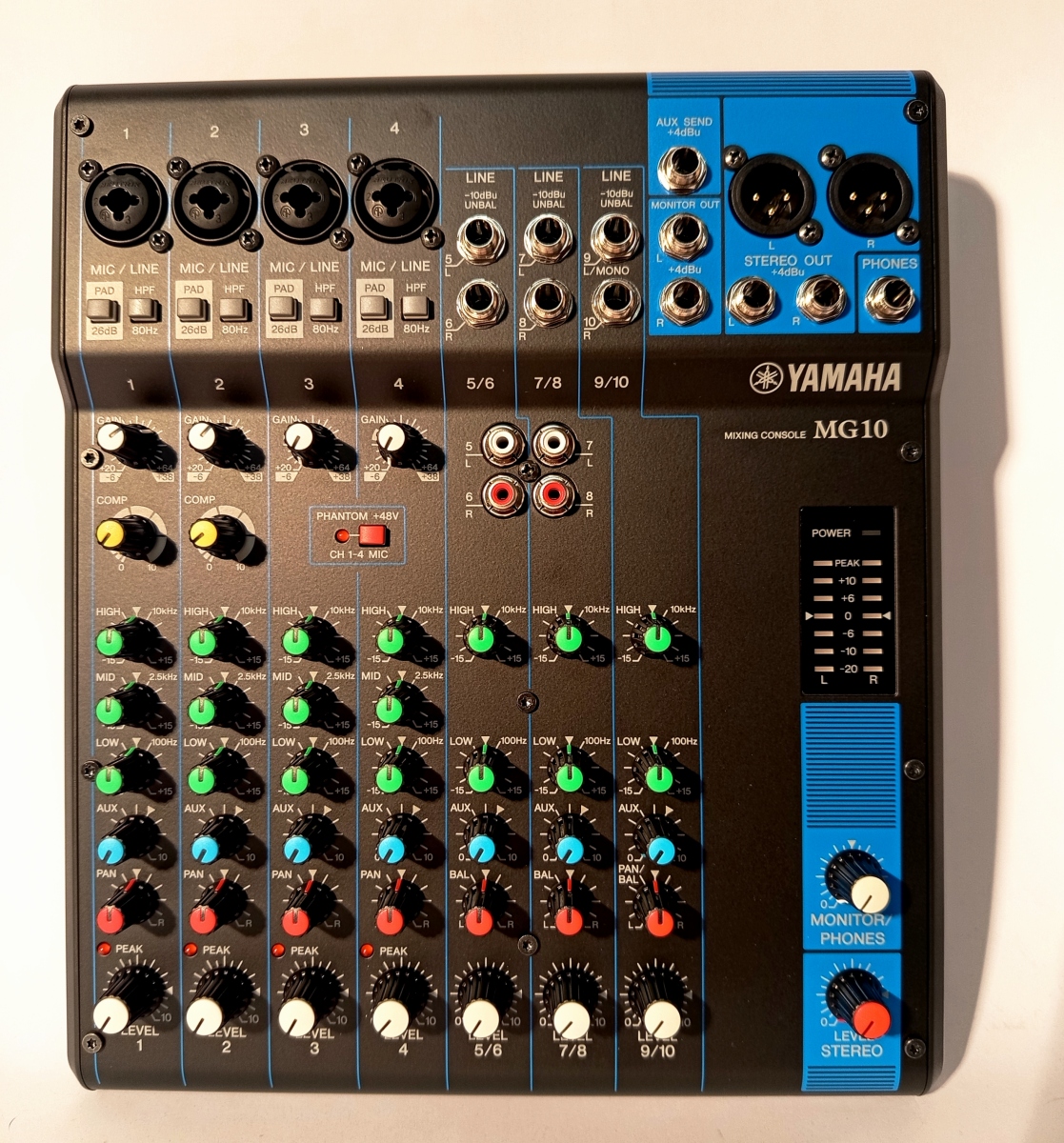

Yamaha MG 10, audio mixer with 10 input channels:
- 4 mono inputs, microphone/line combo XLR/Jack
- 3 dual stereo line inputs, 1 stereo bus
- balanced XLR or Jack outputs, headphone output
- 1 x auxiliary send
- 1 x stereo monitoring output
- 3-band EQ for mono channels and 2-band EQ for stereo channels
- compressor on channels 1 and 2: +22 dBu to -8 dBu, ratio 1:1 to 4:1
- D-PRE microphone preamps with inverted Darlington circuit
- 26 dB pad on mono channels
- switchable high-pass filter on mono channels, 80Hz
- phantom power +48V
- solid metal chassis
- dimensions: 244 x 71 x 294 mm
- weight: 1.9 kg
