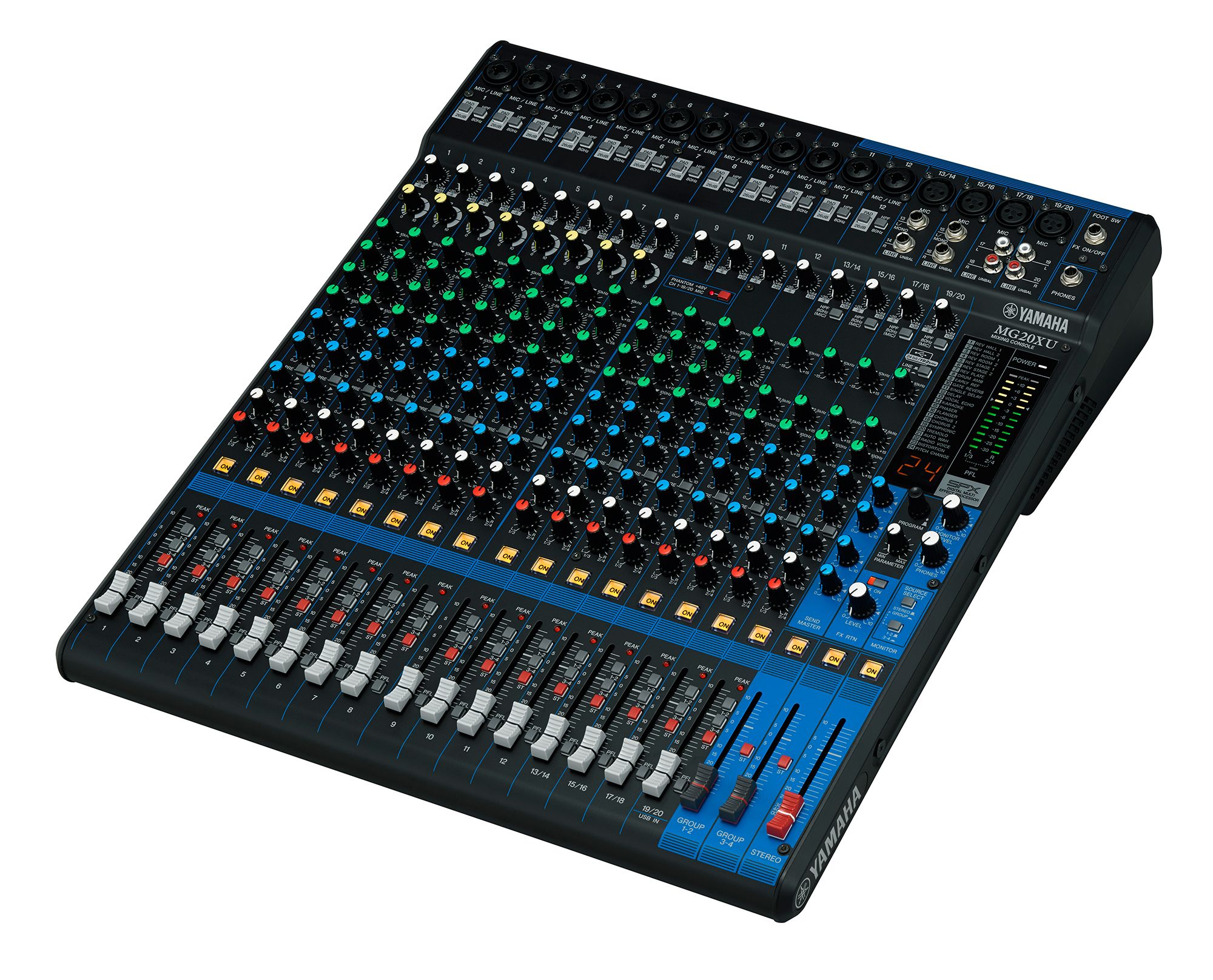

Yamaha MG 20XU

Mixer

16 microphone channels / 20 line inputs (12 mono + 4 stereo)
sPX effects processor with 24 programs
24-bit / 192 kHz USB audio interface
d-Pre preamps with inverted Darlington circuit
solid metal casing with rack mounting kit included

855³⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha MG 20XU Add to cart: 855³⁰ €

Yamaha MG 20XU, mixing console with 20 channels, maximum 16 microphone / 20 line (12 mono + 4 stereo), 4 x sub-groups + 1 stereo group, audio interface via USB and SPX effects processor:

16 microphone channels / 20 line (12 mono + 4 stereo)
SPX effects processor with 24 programs
Audio interface via USB 24-bit / 192 kHz
12 x microphone/line inputs with combo XLR/Jack connection
Channels 13/14, 15/16, 17/18, 19/20 can be used for microphone or stereo line signal
4 x group buses + 1 stereo bus
4 auxiliaries
3-band equalizers with parametric mids
D-Pre preamps with inverted Darlington circuit
Compressor on channels 1-8
26 dB pad and high-pass filter at 80 Hz
Phantom Power supply of +48V
Balanced XLR outputs
Rack mounting kit included
Solid metal casing
Dimensions: 444 x 130 x 500 mm
Weight: 7.1 kg
