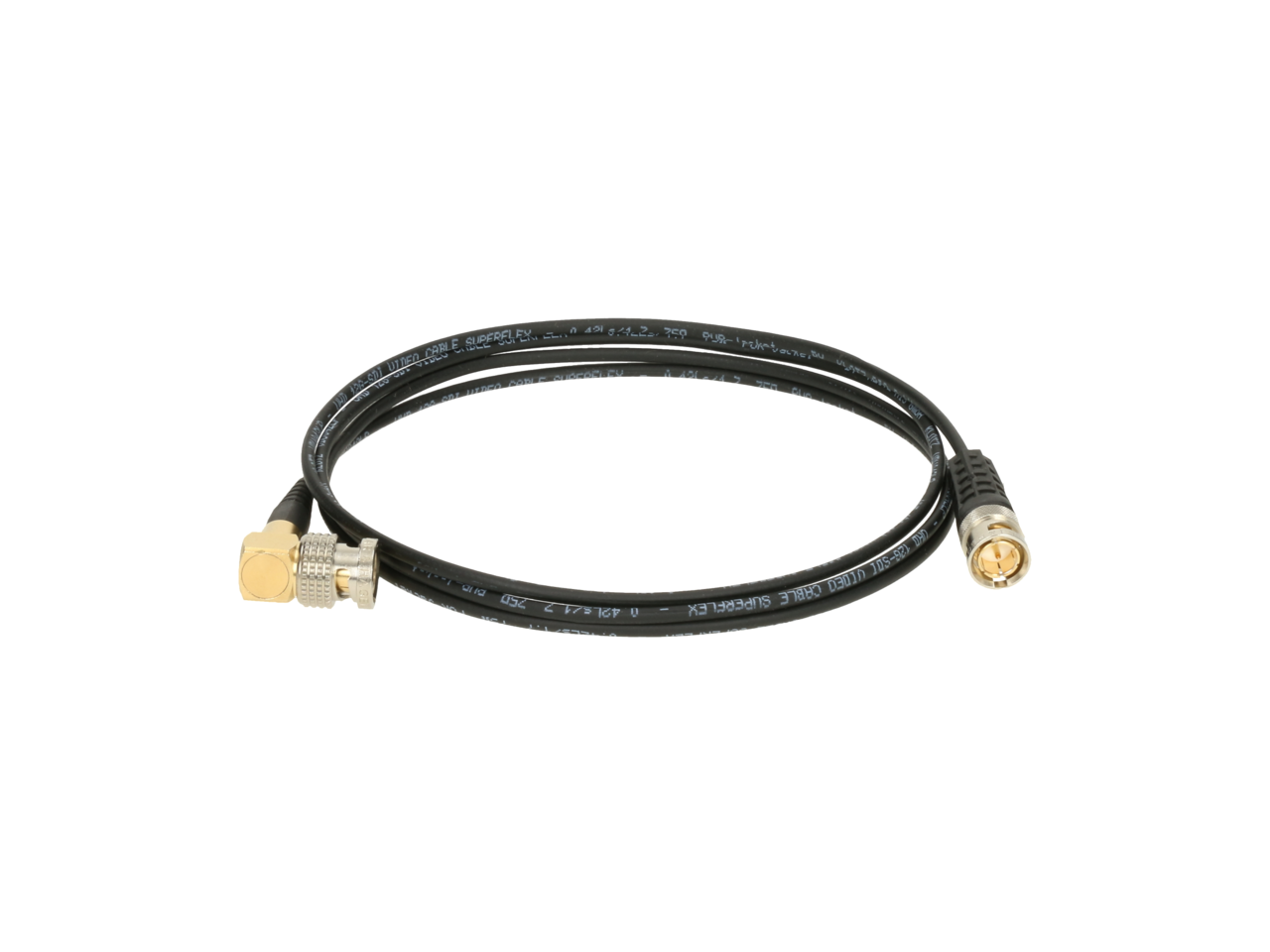

Klotz ultra thin super flex UHD patch cable - BNCPro angled plug - BNCslim plug for HD / UHD / 12G / 4K / 8K - 3 m

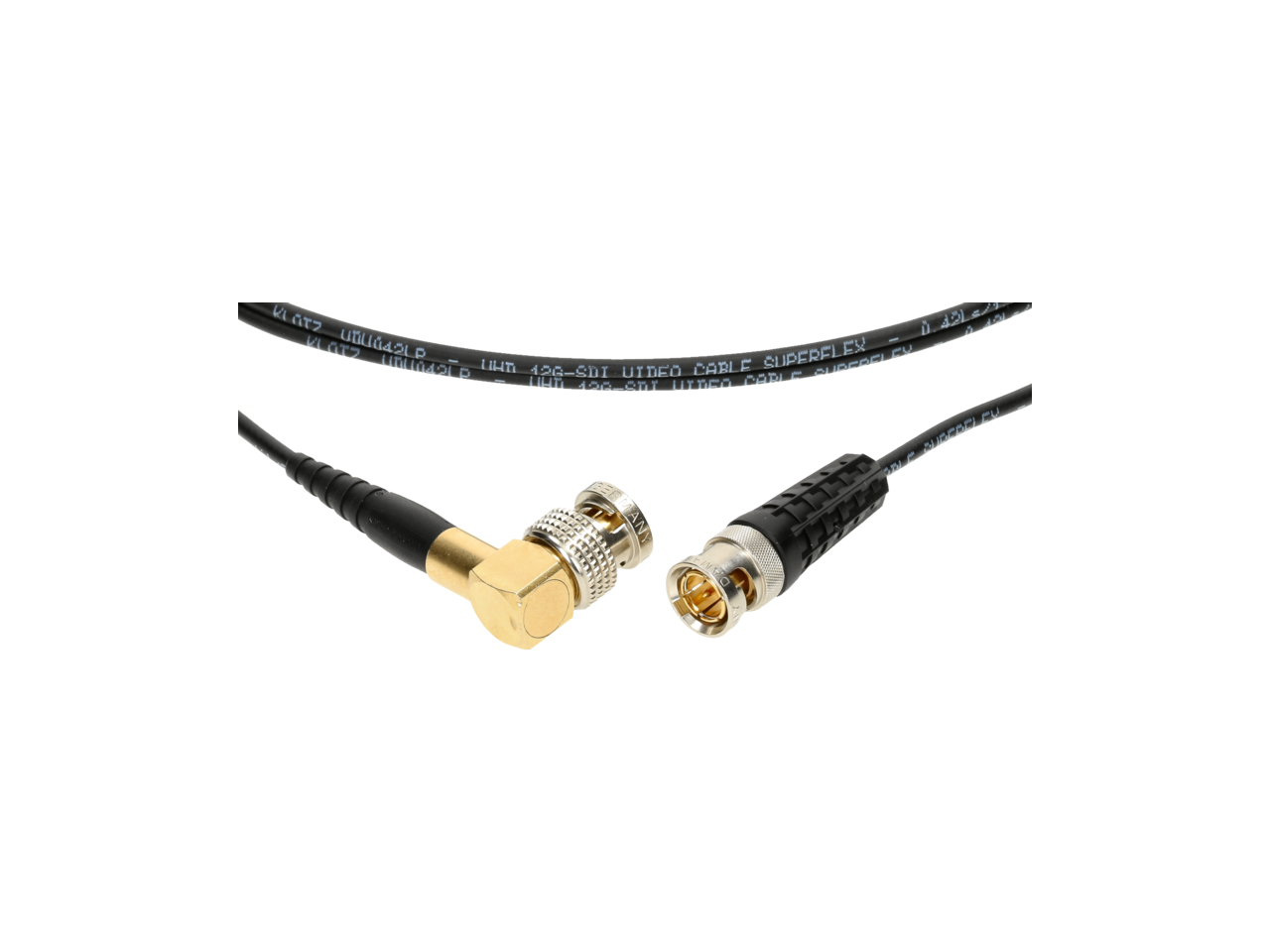

• BNCPro angled plug - BNCslim plug
• for HD / UHD / 12G / 4K / 8K
• ideal for mobile applications with high demands
• extremely robust and flexible
• very compact cable, Ø 2.9 mm, extremely flexible
• stranded inner conductor from silver-plated, copper cladded steel wires
• tinned copper braid shield
• PUR overall jacket

The requirements in the broadcast and video segment are constantly growing with the use of 12G-SDI workflows (UHD / 4K / 8K) and the bandwidths are constantly increasing. In addition, it is essential to transmit the signals reliably over the usual lengths, even in extreme situations. KLOTZ digital video cables are further improved due to the excellent electrical and mechanical properties of the Damar & Hagen connectors of the BNCpro, BNCslim series as well as the BNCmicro and the DIN 1.0/2.3 connectors. Especially the significant return loss ≥ 28 dB for 12G-SDI signals in combination with the well-known excellent properties of our cables offer a perfect trouble-free transmission even in critical situations. The KLOTZ video cables, as well as the connectors and the required crimping tools are also available individually for on-site assembly.

cable

cable typ: digital video cable - VDU042LP - 0.42Ls/1.7 - PUR

outer jacket: PUR

max. transmission length: UHD 12GB/s 20 m; UHD 6G 30 m; UHD 3G 45 m; HD 3G 22 m; HD 1.5 G 33 m

connectors

connector 1: BNCPro angled plug - Damar & Hagen

connector 2: BNCslim plug - Damar & Hagen

Caracteristici

BNC design	BNCPro 90° - BNCslim
manufacturer BNC	Damar & Hagen
shell/sleeve	black
cable color	black
format	UHD 12G
length	3 m
