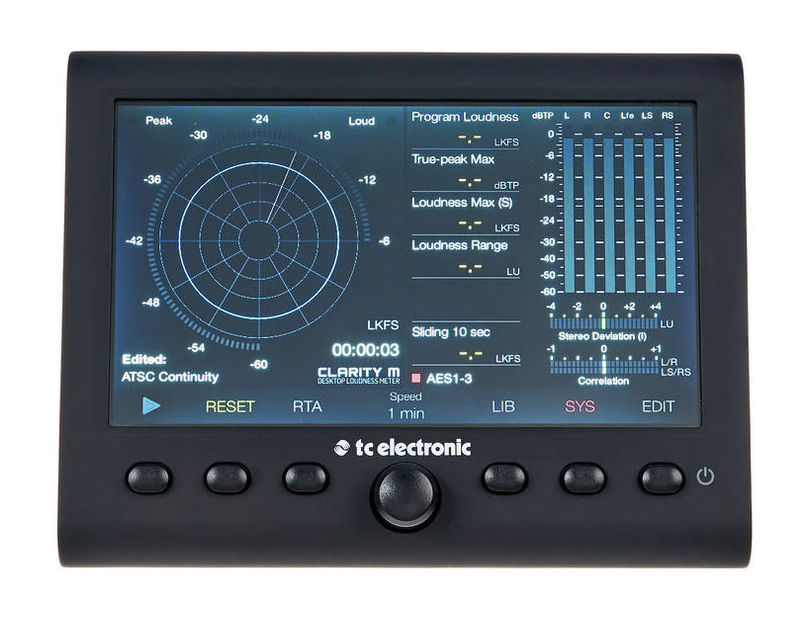

TC Electronic Clarity M - a 5.1 optical monitoring device for mixing, mastering, and post-production. It features a 7" High-resolution display (800 x 480), USB connection for easy integration, compatible with AU, VST, and AAX plug-ins, and all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32, and OP-59.
Technical specifications:
Connectors:
Digital
3 x BNC AES3id, S/PDIF via DB-15
1 x TOSLink, EIAJ optical
GPIO 2 external switch inputs, 1 relay output (max 100 mA, optically isolated) 1 x 1/8" TS female jack (GPO) via DB-15 1 x 1/4" TRS female jack (2x GPI) via DB-15
USB
USB 2.0 (micro type B)
Sampling rates:
Physical inputs: 44.1 kHz, 48 kHz
In plug-in mode: 44.1 kHz, 48 kHz, 96 kHz
Display:
7" TFT (colour)
800 x 480 pixels
Controls:
1 x rotary encoder
6 x selection buttons
Power requirements: 110 to 240 VAC, 50/60 Hz for the included 12 VDC power supply
Power consumption: 12 V DC, 0.5 A
Mac system requirements:
Clarity M plug-in
OS X 10.9 (Mavericks) or later
Pro Tools 10 or newer, or compatible VST/Audio Unit host
