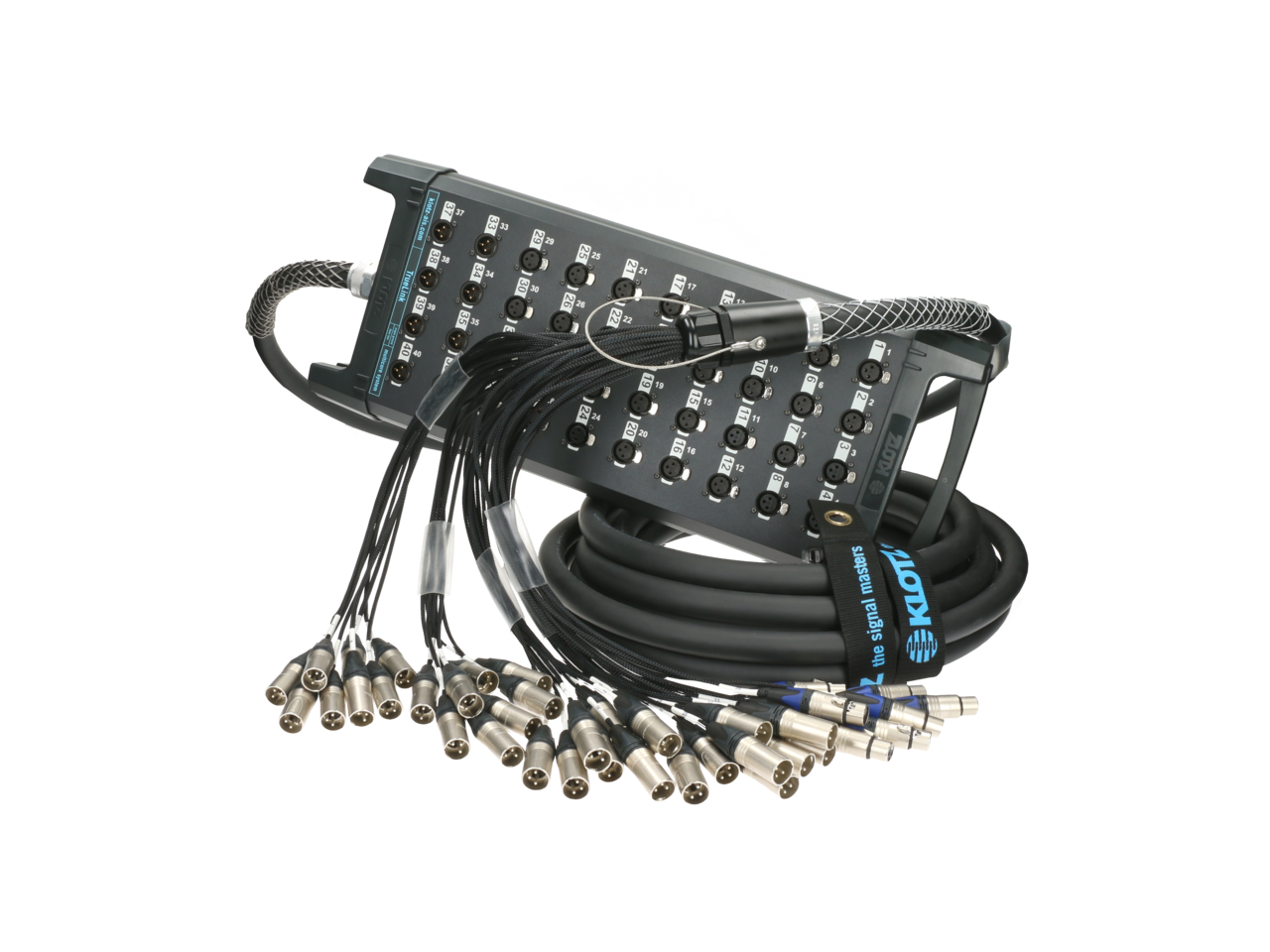

Klotz TrueLink Pro 32/8 XLR 3p40-channel - single ground - 40 m

• ergonomic design
• easy weight, solid aluminium chassis, black grey powder coating
• fanout with high strength braided sleeve, high temperature range (-70°C bis +150°C) and self-extinguishing properties
• cable straps included

Our TrueLink Stage Boxes feature a sophisticated concept and versatile configuration options, and are ideal for a broad range of uses. Whether the FOH desk is 10m or 50m away, there’s a TrueLink Stage Box for every situation. The housing is made from a 3mm solid aluminium extruded section with breakproof plastic sides and has a carry handle or a cable outlet on both sides, depending on the model. Anything is possible – from 16-in-4 to 32-in-8, with round multipin connectors or, on request, with Harting connectors. There’s even a parallel version with one input and output per channel (as a passive split box) and a data stage box version for four CAT cables and eight digital audio channels.

box

housing: easy weight, solid aluminium chassis, black grey powder coating

dimension: l= 587 mm; w= 245 mm; h= 100 mm

panel connectors: 32x female, 8x male - panel XLR, high-grade with metal flange and hard gold-plated contacts

strain relief (box side): metal / Remke heavy duty

cable

channels: 40

cable typ: PolyLIVE, compact analog audio cable with low signal attenuation

jacket: PVC

strain relief (cable end): steel basket grip (SBG)

fanout connectors: 32x male, 8x female - sparkling bronze metallic shell, silver-plated contacts

fanout length: 0.8 m

Caracteristici

channels	40
XLR inputs	32
XLR outputs	8
length	40 m
