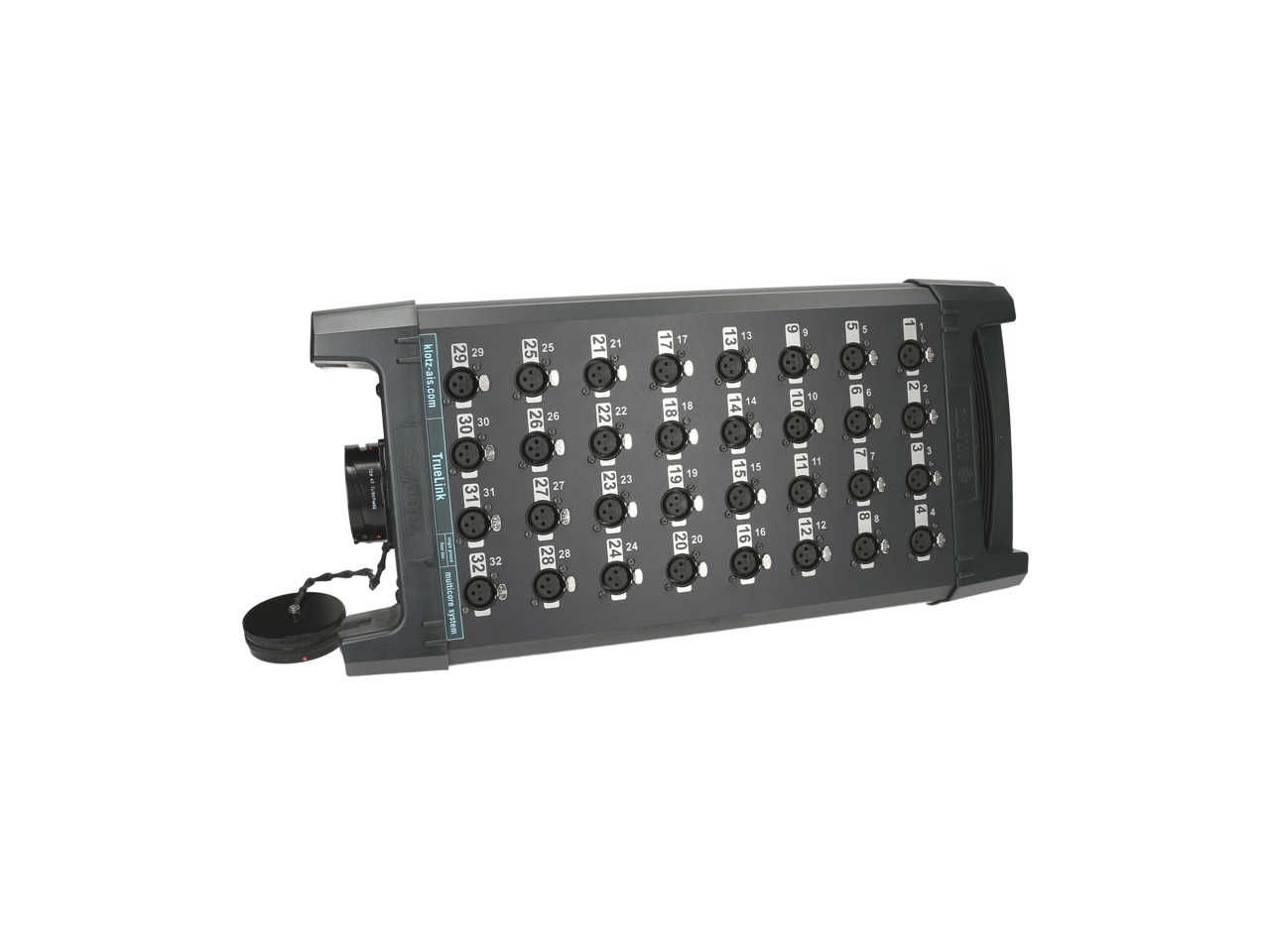

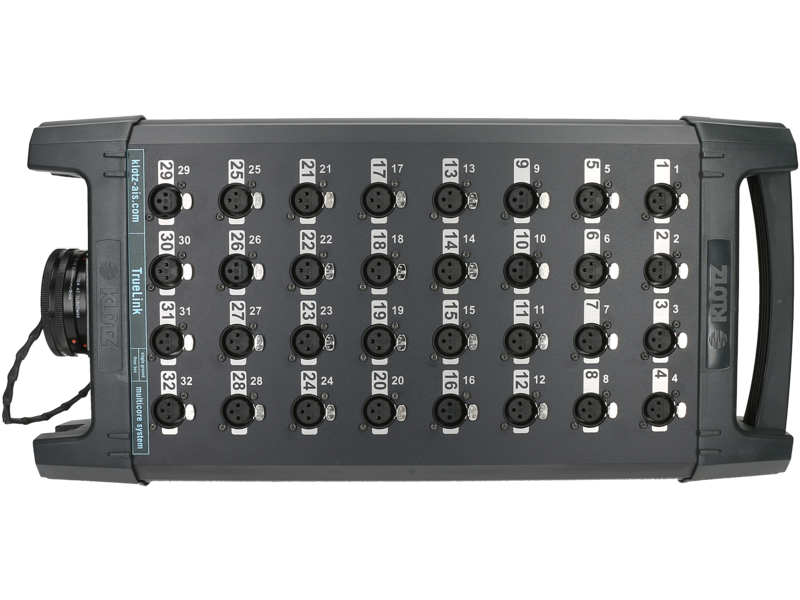

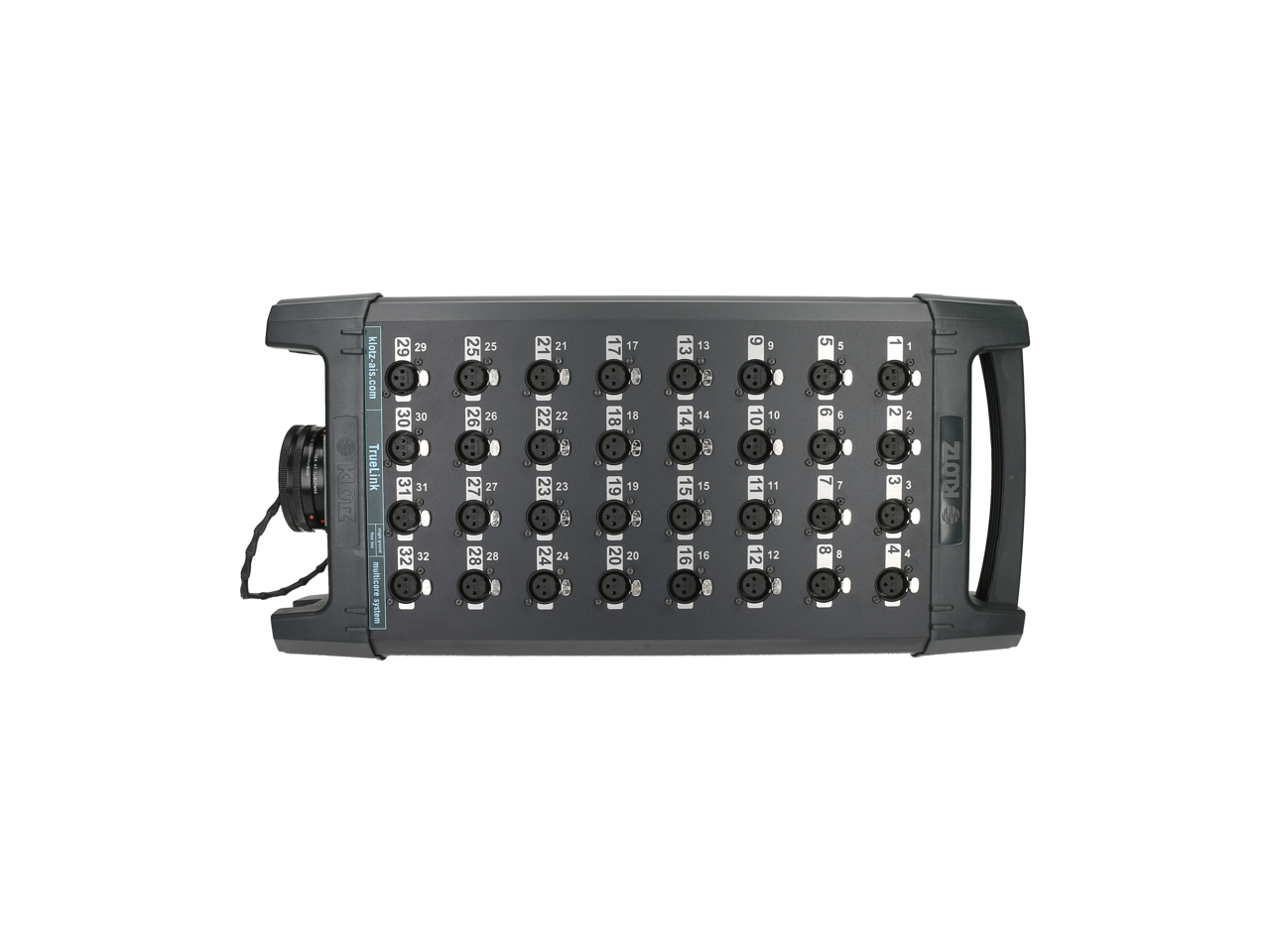

Klotz TrueLink Pro 32/0 XLR 3p - RMP 150p M32-channel - single ground

• easy weight, solid aluminium chassis, black grey powder coating
• ergonomic design
• fixed mounted round multipin connector (RMP)
• compatible with LK connectors, Tourline and CIRLK, as well as other connectors according to MIL C 5015 standard

Our TrueLink Stage Boxes feature a sophisticated concept and versatile configuration options, and are ideal for a broad range of uses. Whether the FOH desk is 10m or 50m away, there’s a TrueLink Stage Box for every situation. The housing is made from a 3mm solid aluminium extruded section with breakproof plastic sides and has a carry handle or a cable outlet on both sides, depending on the model. Anything is possible – from 16-in-4 to 32-in-8, with round multipin connectors or, on request, with Harting connectors. There’s even a parallel version with one input and output per channel (as a passive split box) and a data stage box version for four CAT cables and eight digital audio channels.

box

housing: easy weight, solid aluminium chassis, black grey powder coating

dimension: l=500 mm; w=245 mm; h=100 mm

panel connectors: 32x female - panel XLR, high-grade with metal flange and hard gold-plated contacts

channels: 32

Caracteristici

channels	32
pins	150
multipin connection	RMP M
XLR inputs	32
XLR outputs	0
