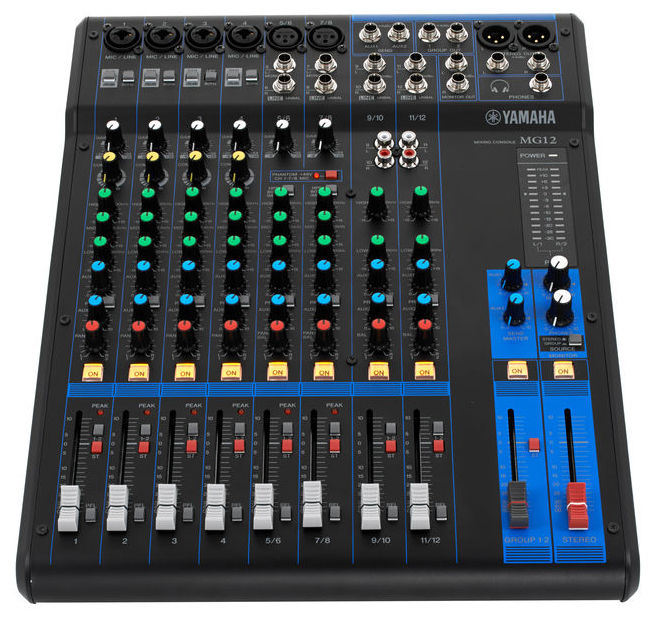

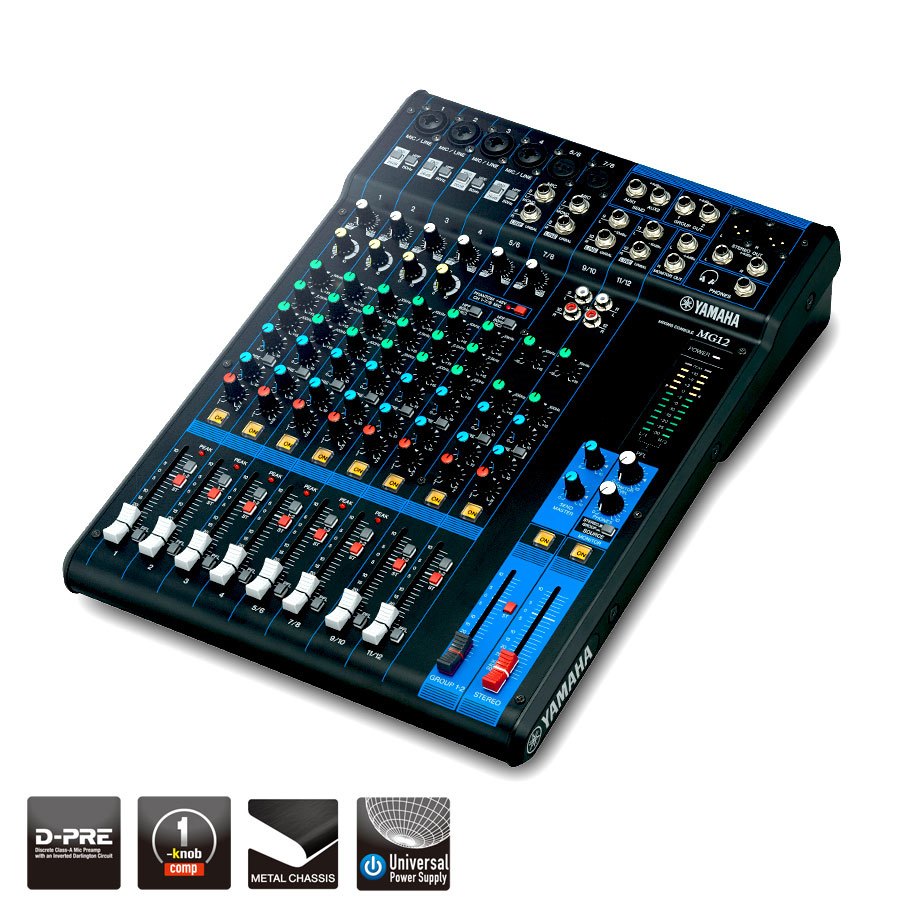

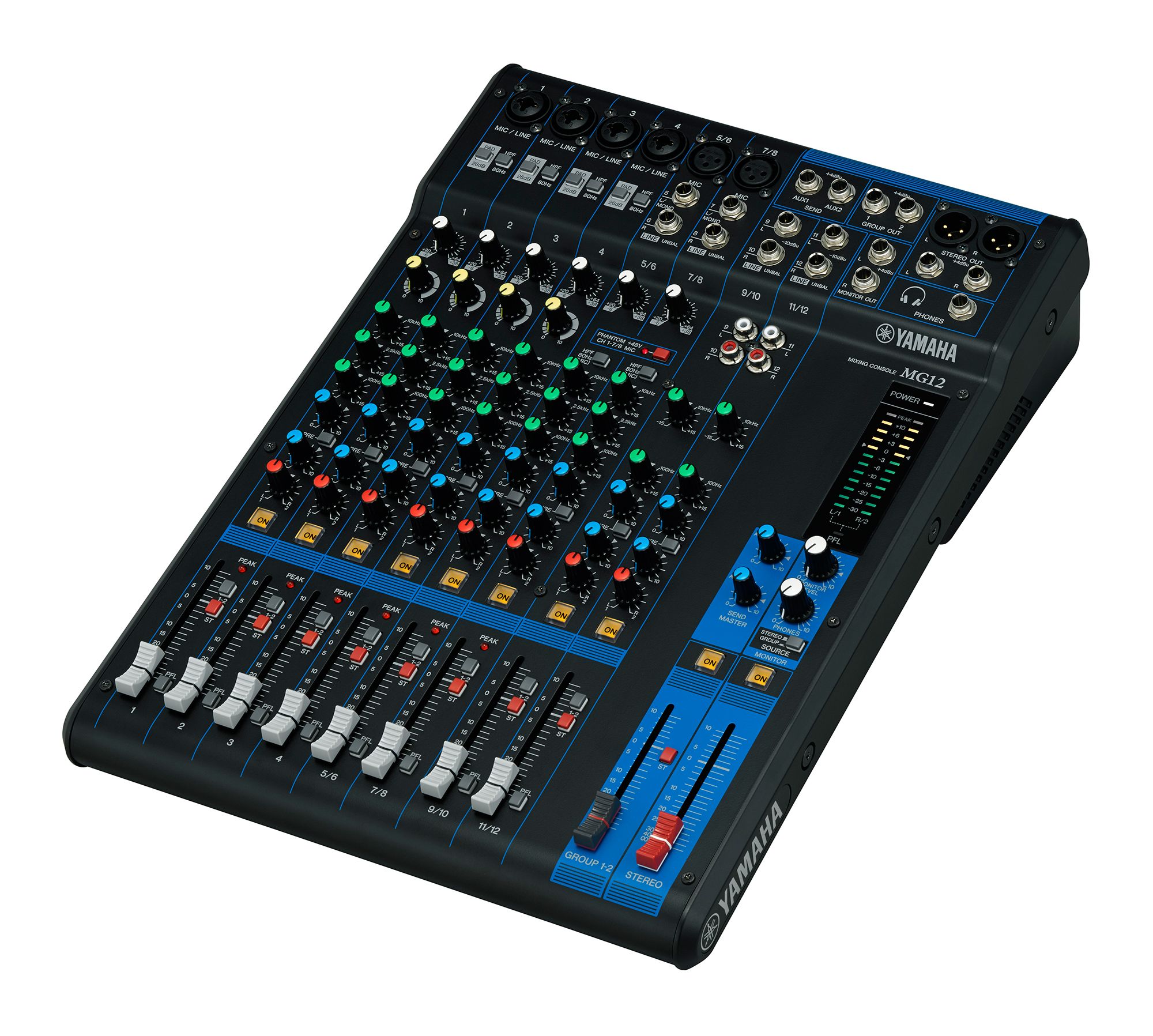

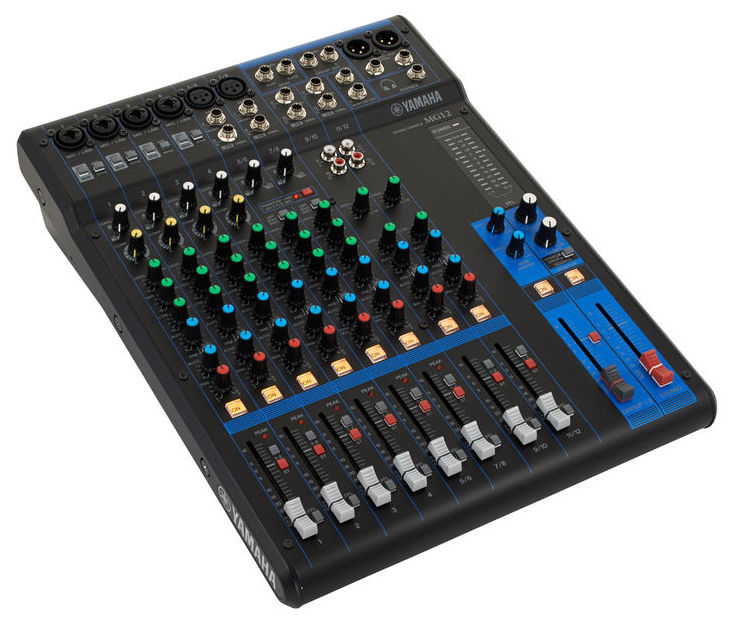

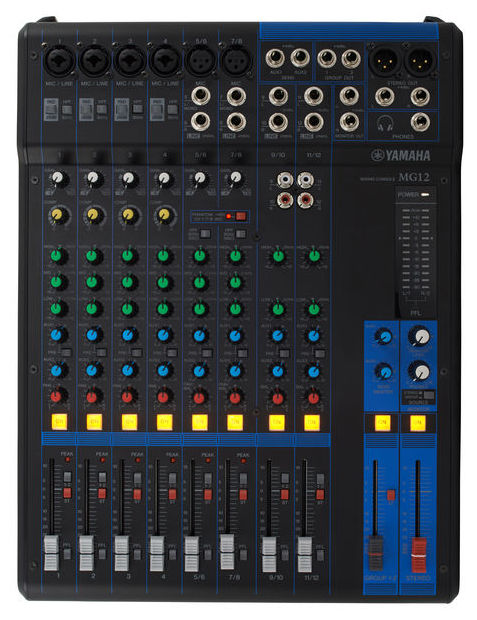

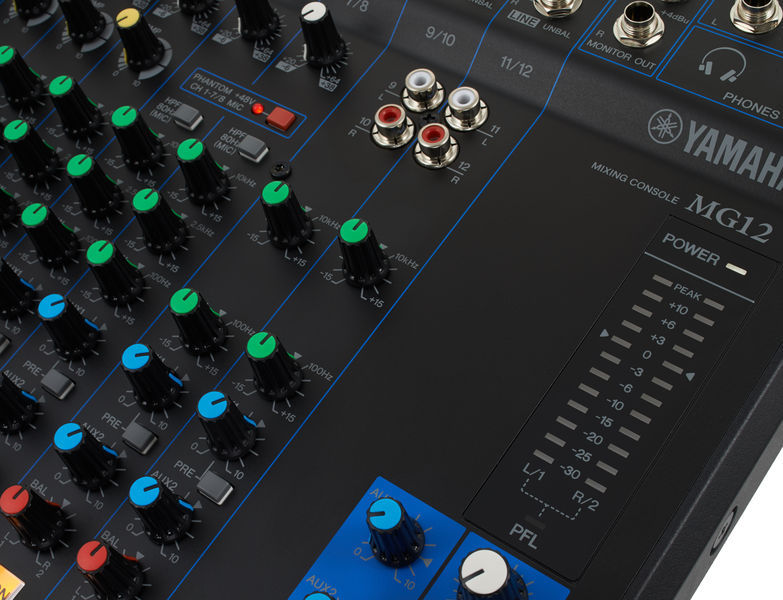

Yamaha MG 12

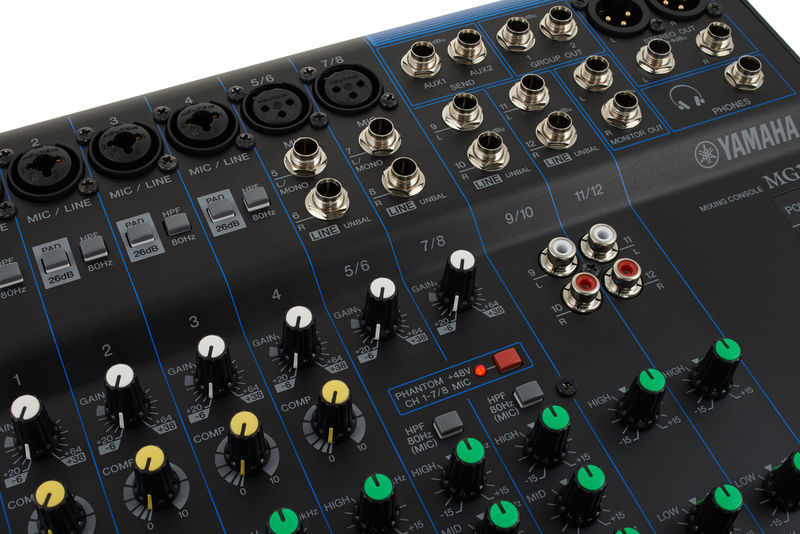

Yamaha MG 12, analogue mixer with 12 simultaneous input channels. The first 4 channels feature combo connectors (Jack / XLR):

• 6 mono inputs, microphone/line combo XLR/Jack
• 4 stereo line inputs (L/R), 1 stereo bus
• 4 mono line inputs (channels 1-4)
• 2 x master outputs (L/R) balanced XLR or Jack
• 2 x mono group outputs on Jack
• 2 x sends on Jack
• 2 x RCA inputs
• footswitch control input on Jack

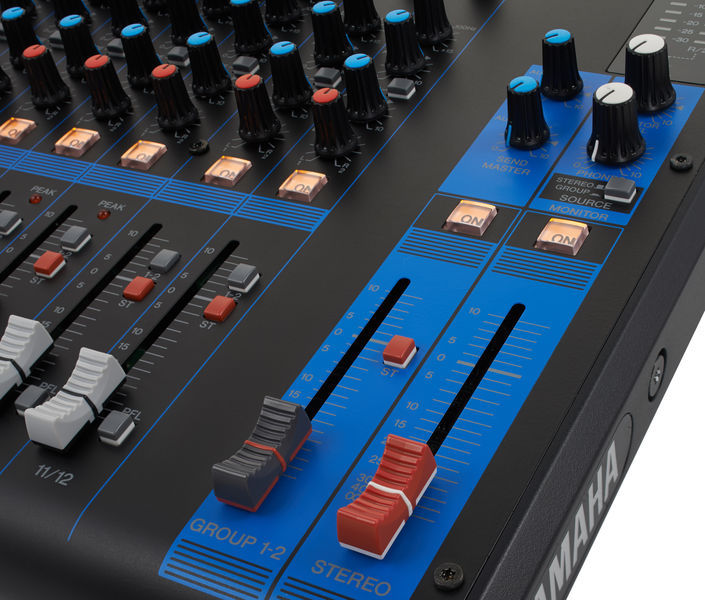

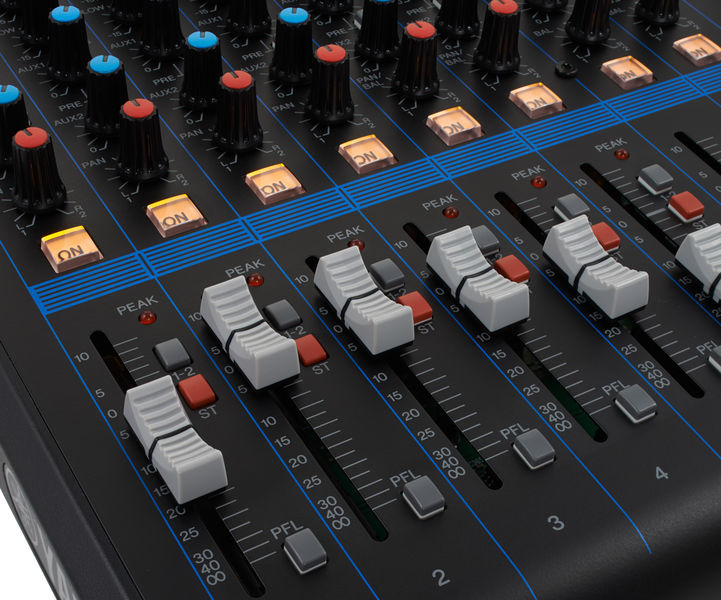

• volume control for Master and Group 1/2
• headphone output

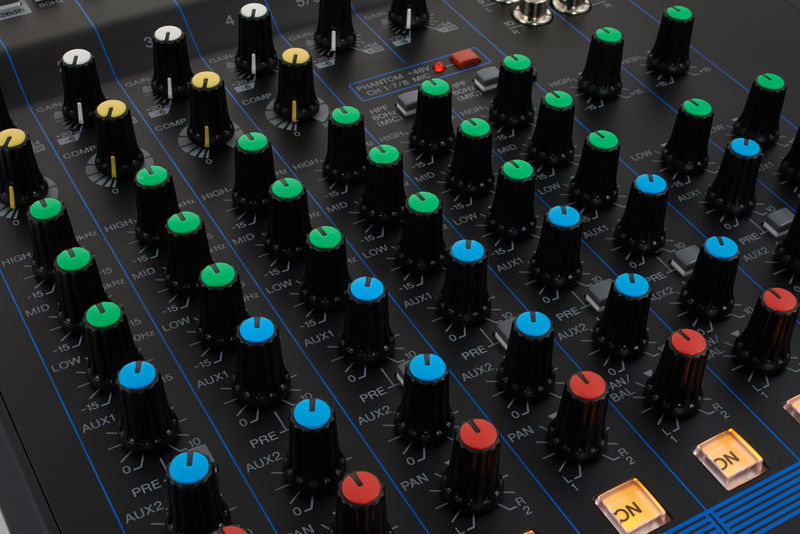

• 3-band EQ
• 2 x outputs (L/R) for pre-monitoring on Jack
• D-PRE microphone preamps with Darlington circuit
• 26 dB pad on mono channels
• switchable high-pass filter on mono channels, 80Hz
• phantom power +48V
• solid metal chassis
• integrated power supply
• dimensions: 308 mm x 118 mm x 422 mm
• weight: 4 kg
